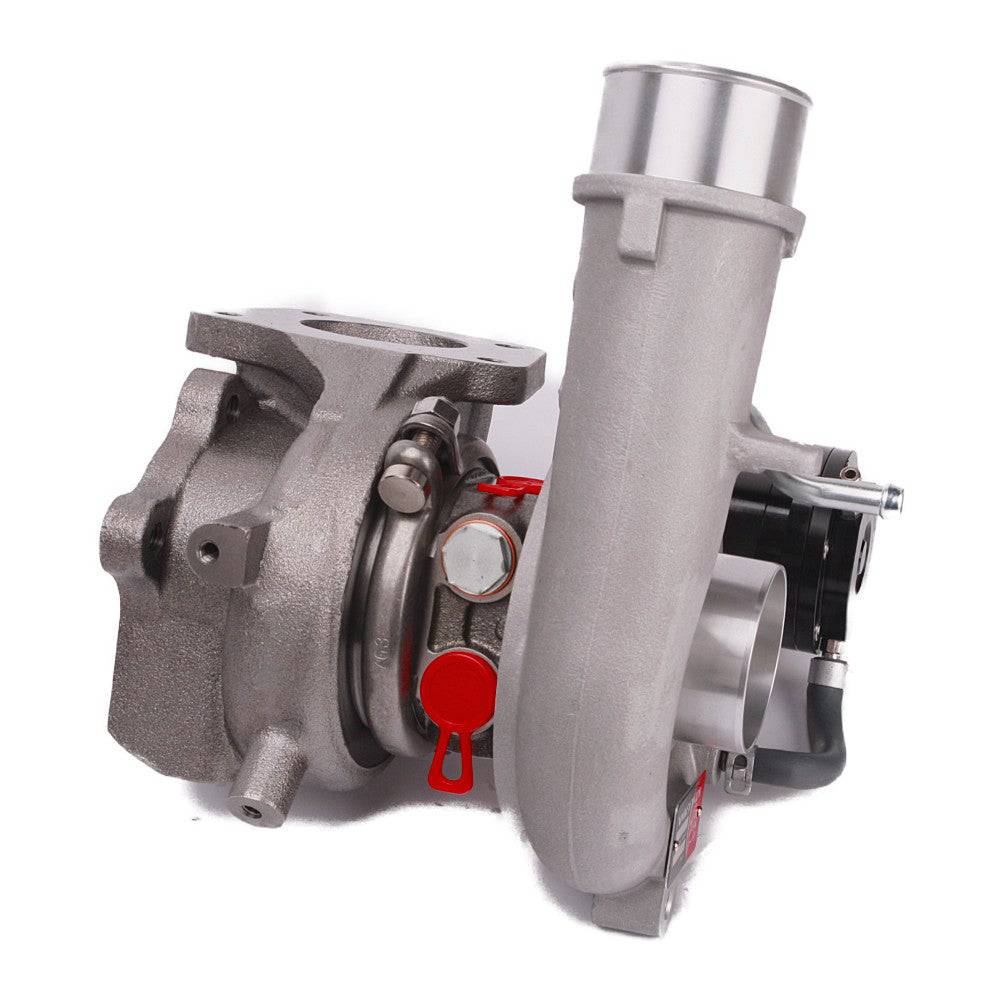

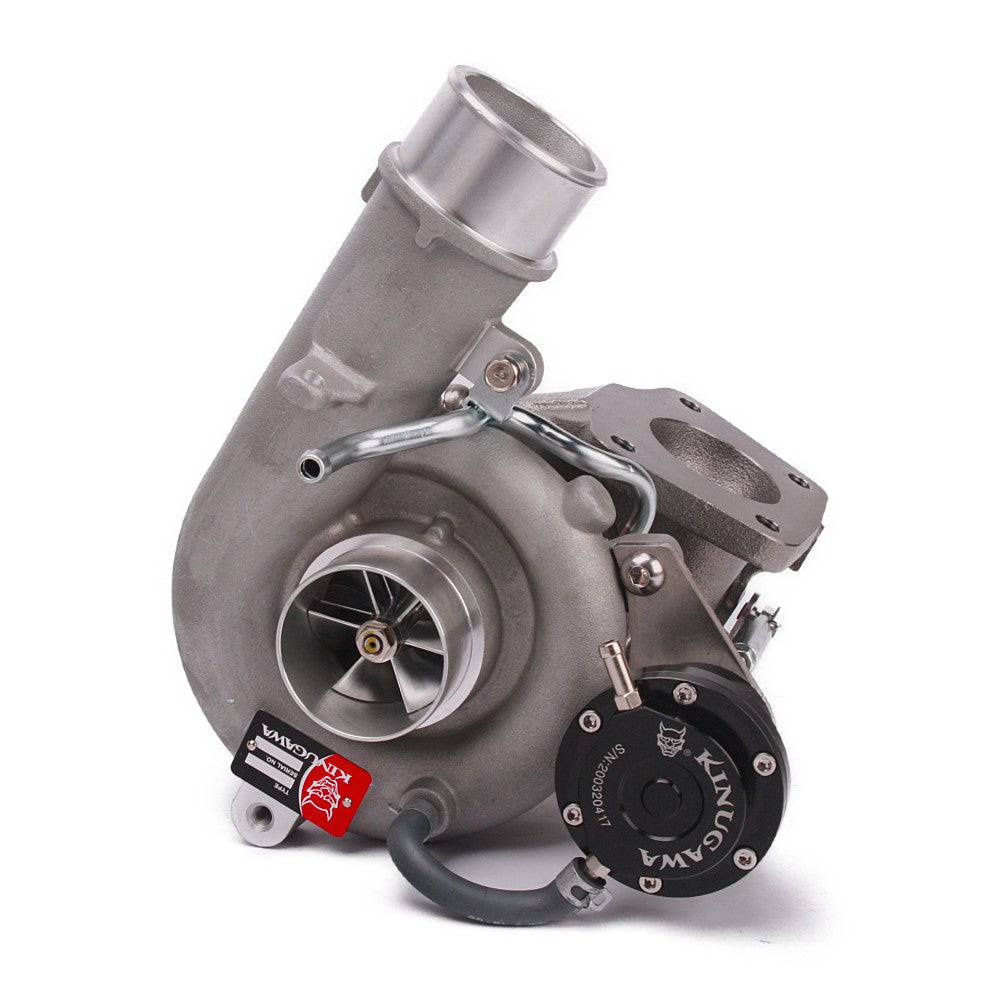

Kinugawa Turbo TD05H-16K for MAZDA Mazdaspeed 3 6 MPS MZR DISI 2.3L CX7 CX9
$999.00 - $1,099.00
Shipping calculated at checkout.
Regular price
$999.00
Regular price
$999.00
Sale price
$999.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 3 left
SKU:
321-02030-007
Tags:
Collections:
Regular price
$999.00
Regular price
$999.00
Sale price
$999.00
Description
- Is the factory turbocharger feeling a little tired? Or if you are ready to make a little more power without going way over the top, you will be pleased with the turbocharger. This is a great upgrade for those looking to make more power while maintaining a great low-range to mid-range response. This turbocharger can produce up to 450WHP on a healthy engine with excellent throttle response. This is a great option for street and track duties.
Application

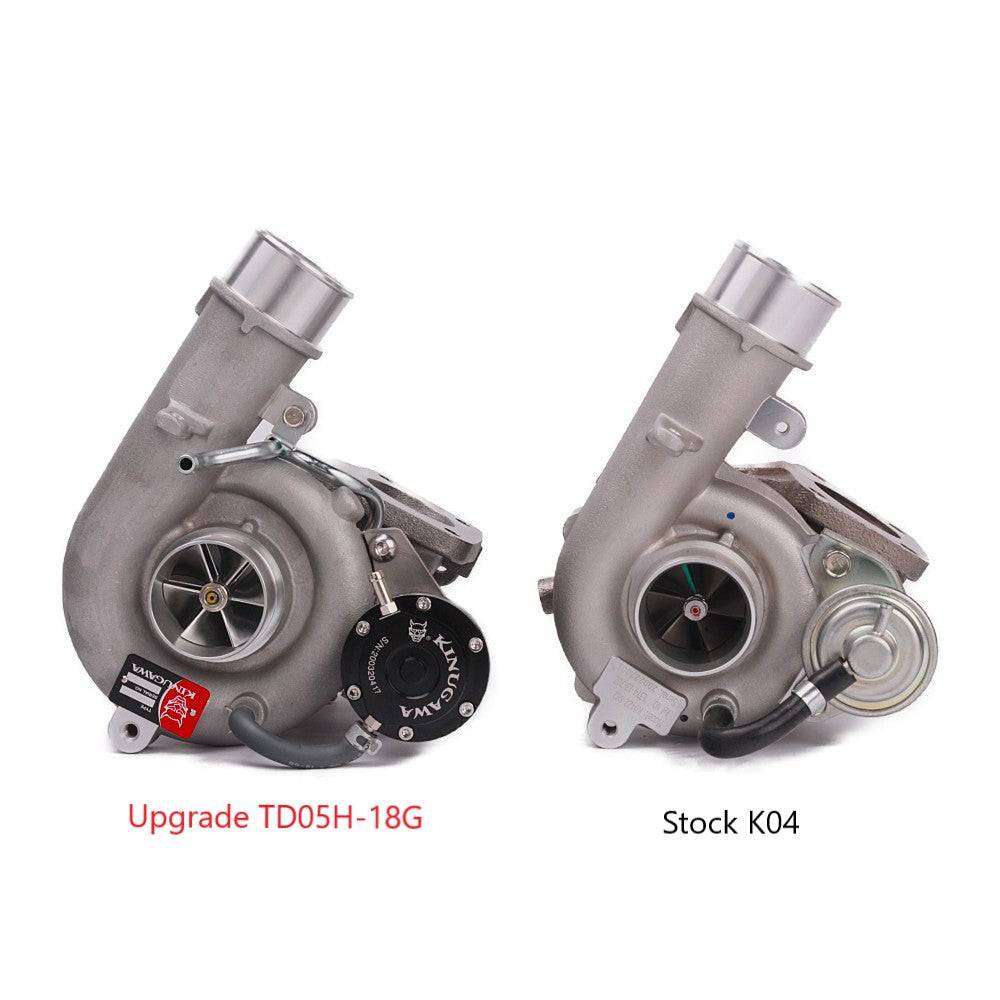

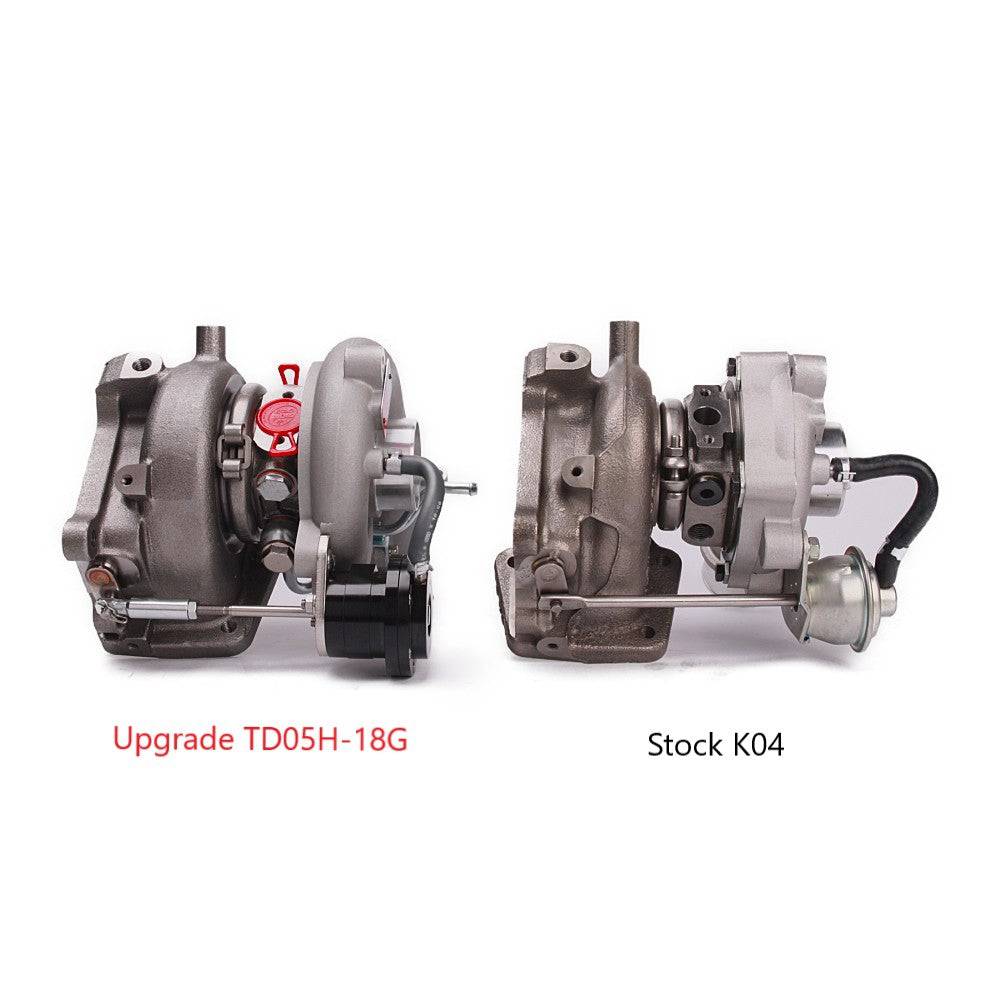

- Fits 2007~2013 Mazdaspeed 3 MPS / 6 / CX7 / CX9 with K0422-881, K0422-882, K0422-883 K04-581, 582, 583 turbochargers.
- Fits Mazdaspeed6/ Mazda6 MPS/Atenza MPS, Mazda CX-7, Mazdaspeed3/ Mazda3 MPS/Axela MPS, Mazda MPV (JDM)
- Fits Mazdaspeed6/ Mazda6 MPS/Atenza MPS, Mazda CX-7, Mazdaspeed3/ Mazda3 MPS/Axela MPS, Mazda MPV (JDM)
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-16K
Wheels Spec

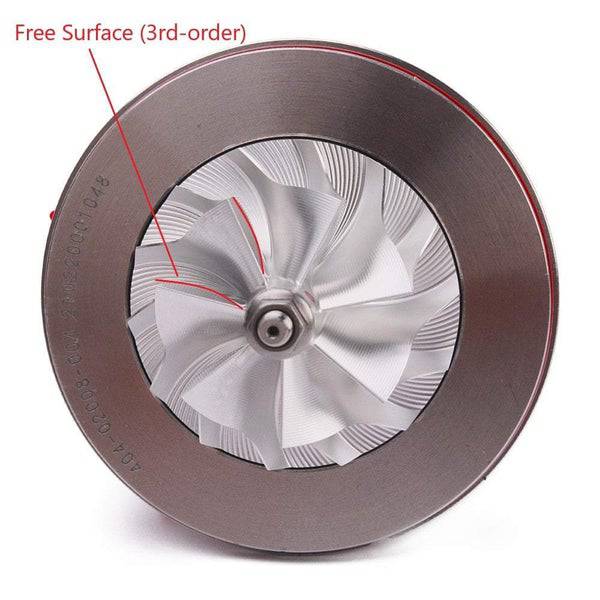

- Compressor wheel: 49.5 / 68.0 mm Point Milling / Third-order Surface
This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX (aka 16k) billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades.
| Free Surface | Ruled Surface | |
| Process | Point Milling | Flank Milling |
| Machining Time | Slow 120 mins.each | Quick 15 mins. each |
| Characters |
1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Only suitable to the very easy design of compressor wheel 4. Mainly for high-efficiency turbochargers. |
1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor |
- Turbine wheel: 56.0 / 49.2 mm (3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)
Compressor Housing
- Compressor inlet: 2.25 "
- Larger A/R than stock is better for top-end speed extended.

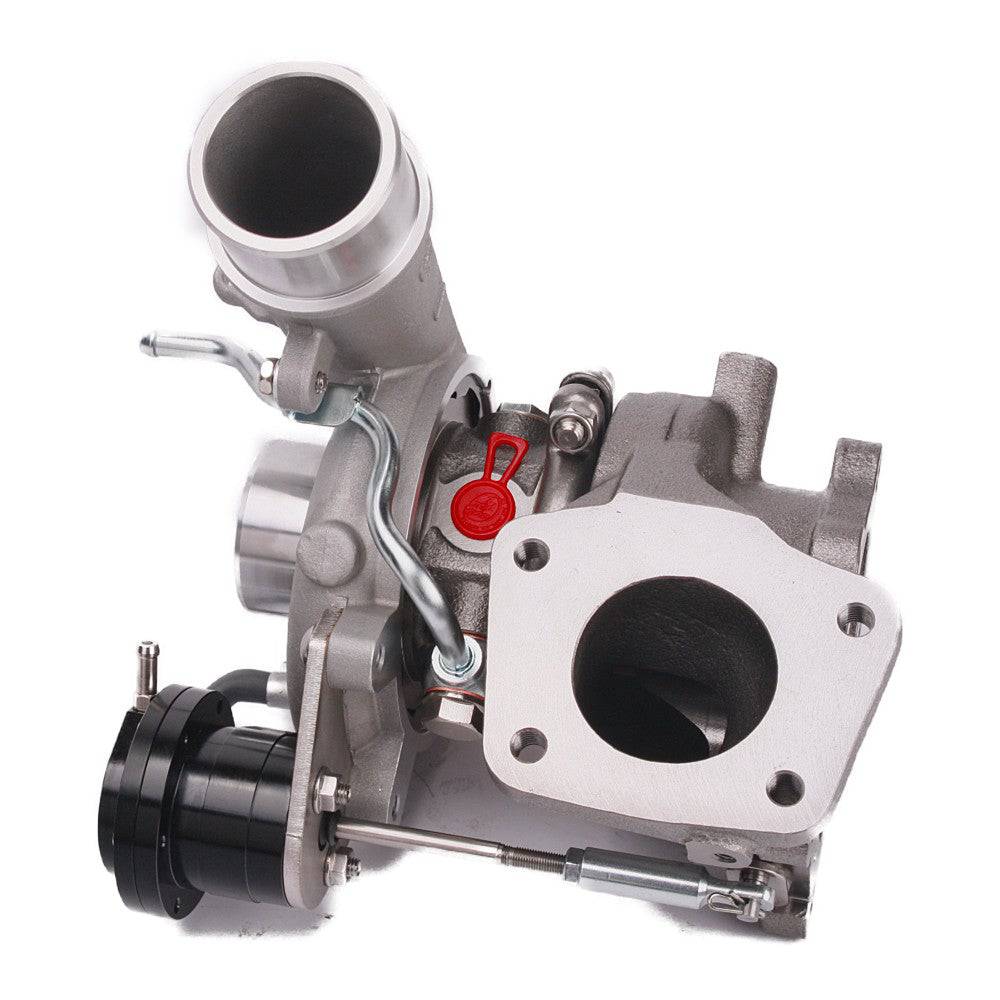

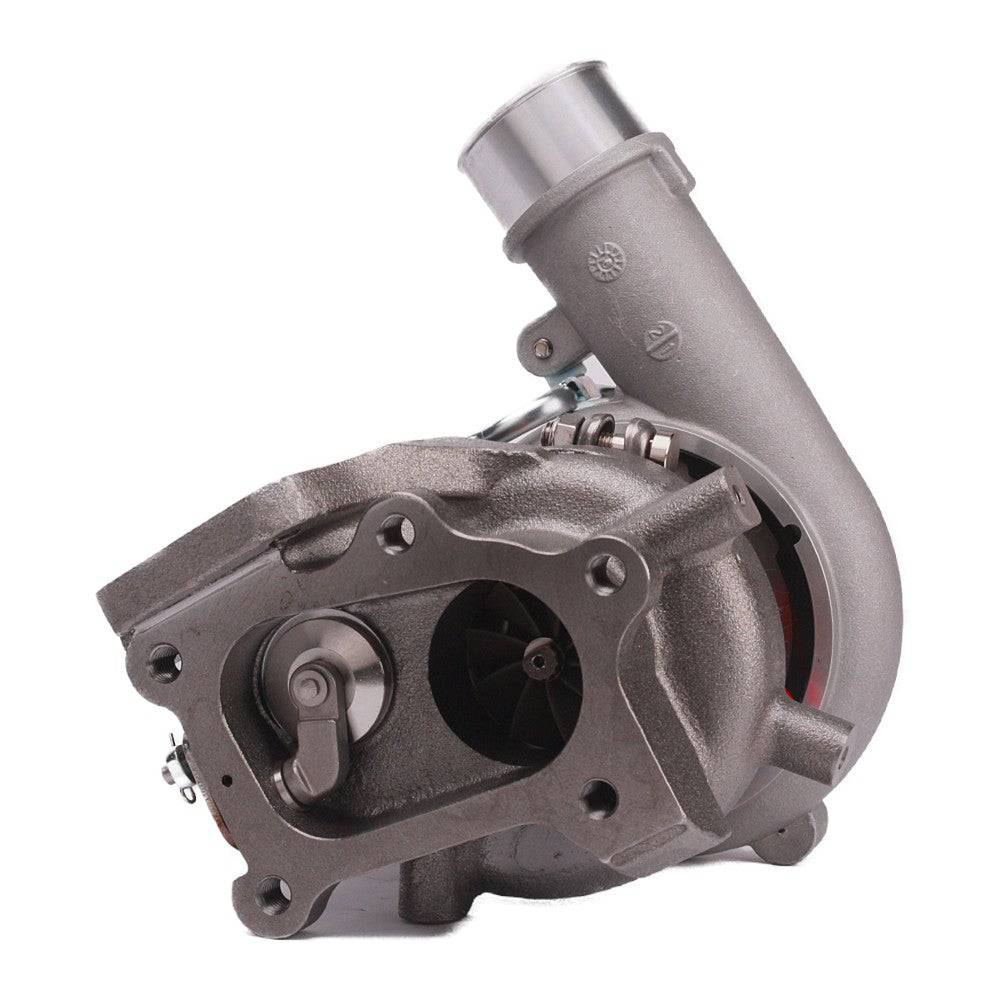

Turbines Housing
- Bolt-on to the stock manifold and downpipe
- A/R .65 (9cm) Larger than stock and helps to reduce the backpressure. It is better for extended top-end speed.
Bearing Type
- Journal Bearing with 360-degree thrust bearing kit
Cooling Type
- oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

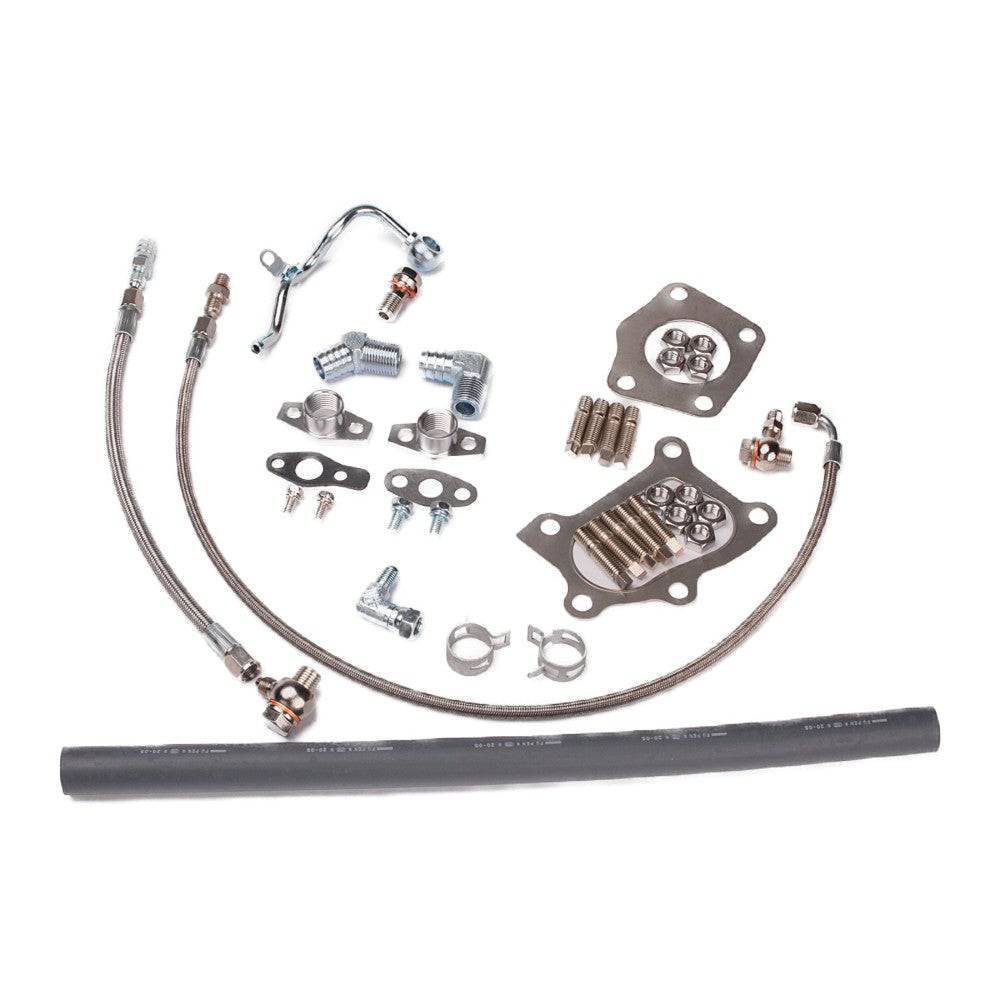

The set includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 9 x Stud And Nut Set

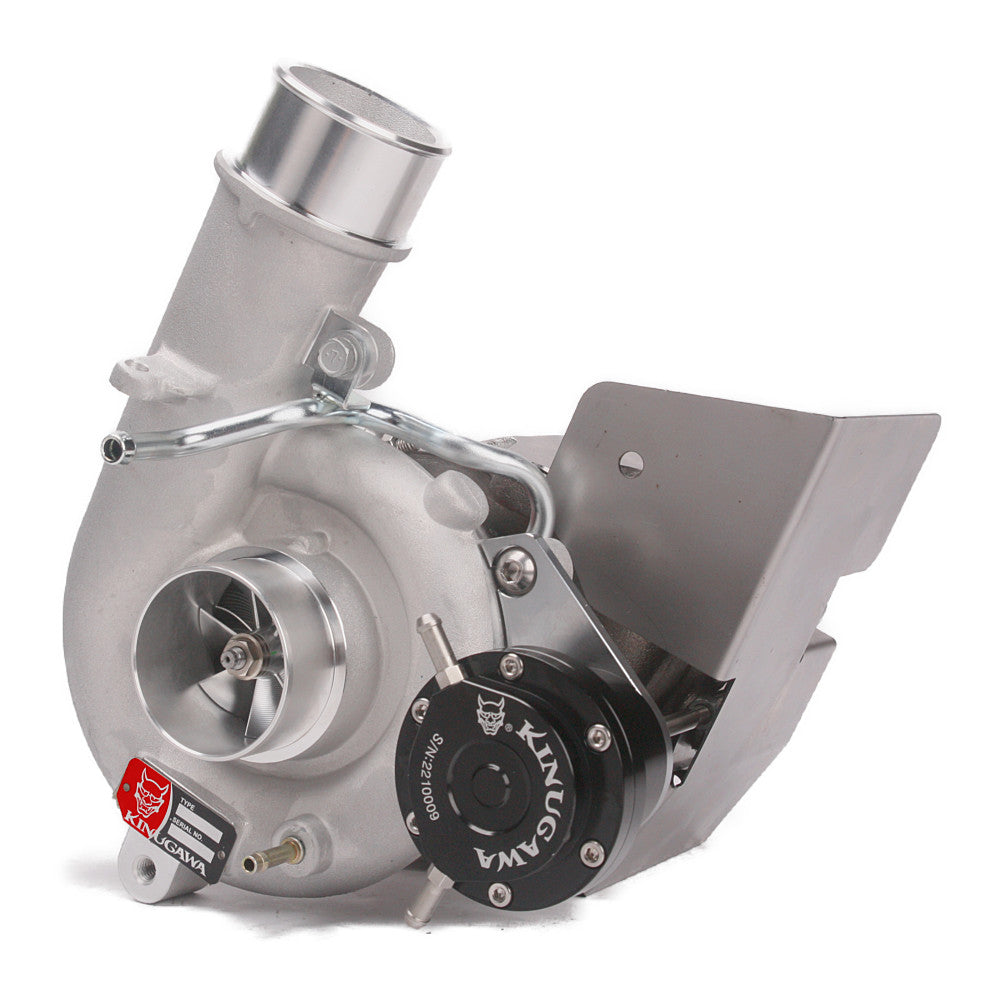

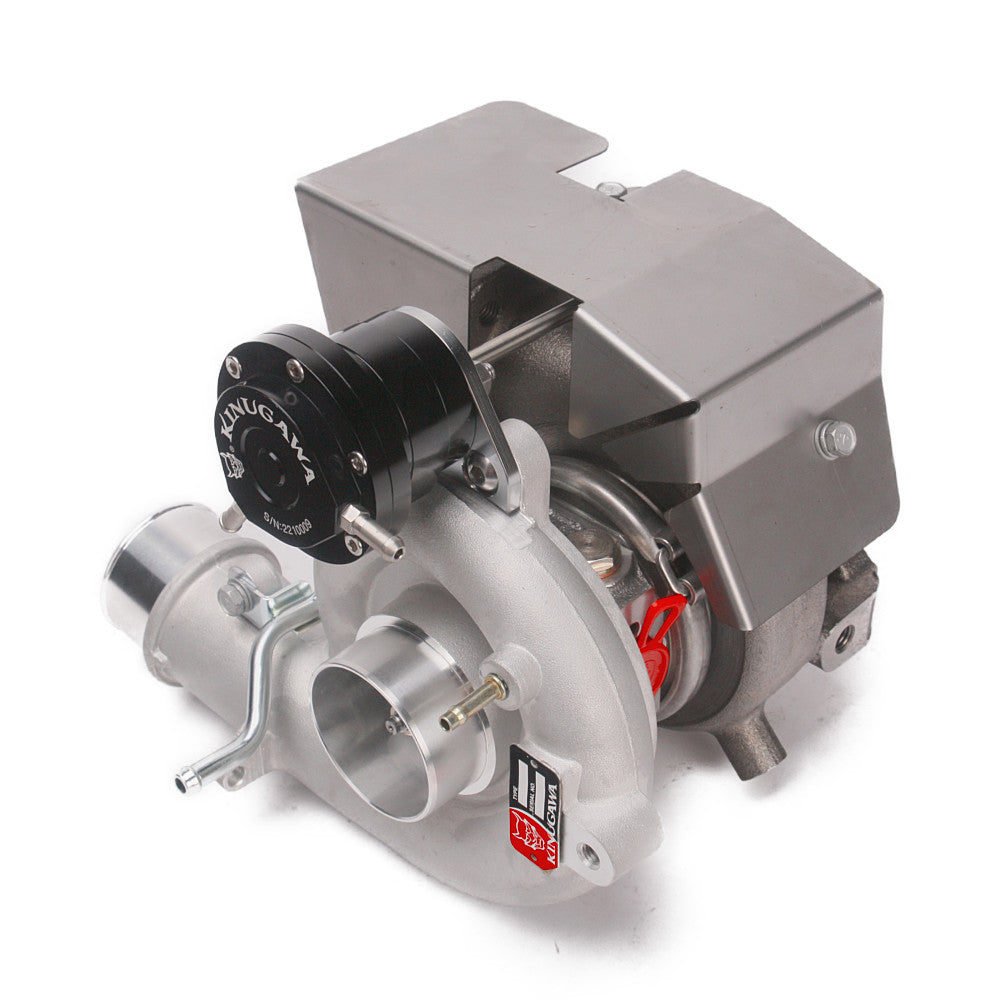

- 1 x Heat Shield
- 1 x Turbocharger
