By KINUGAWA

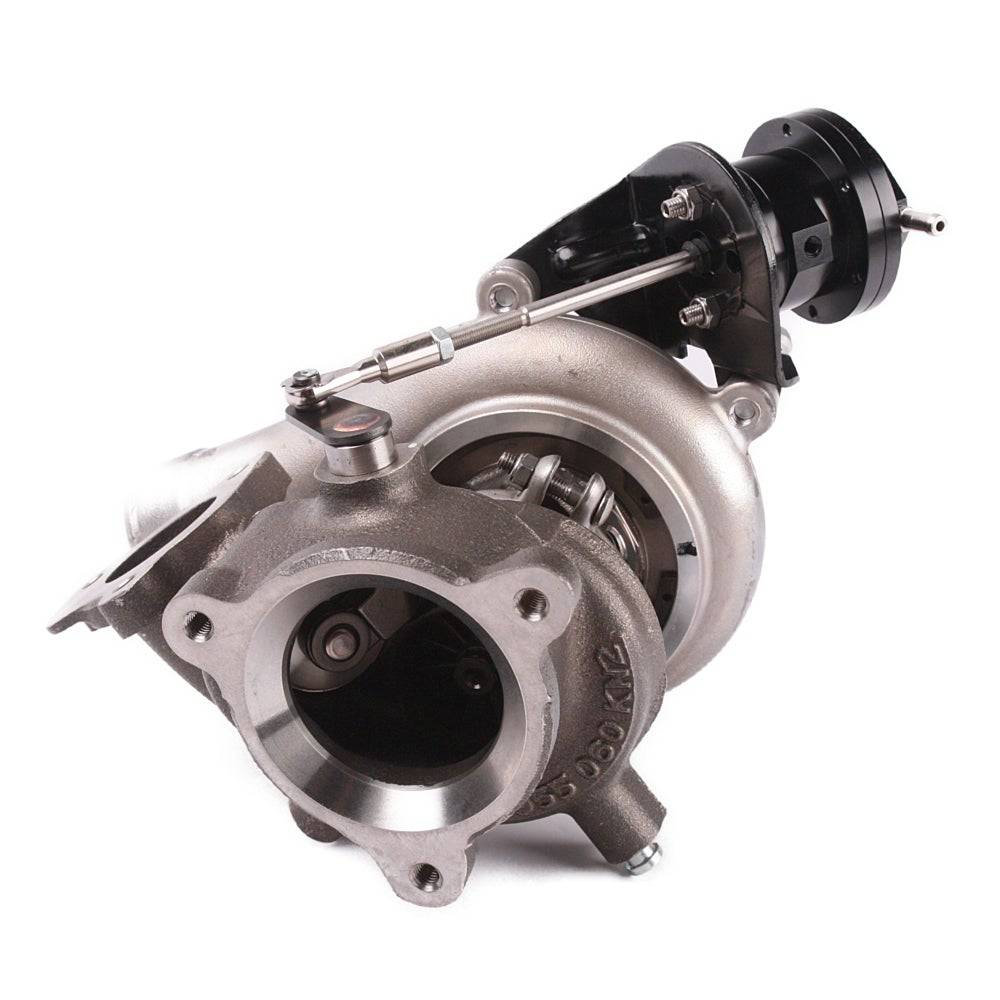

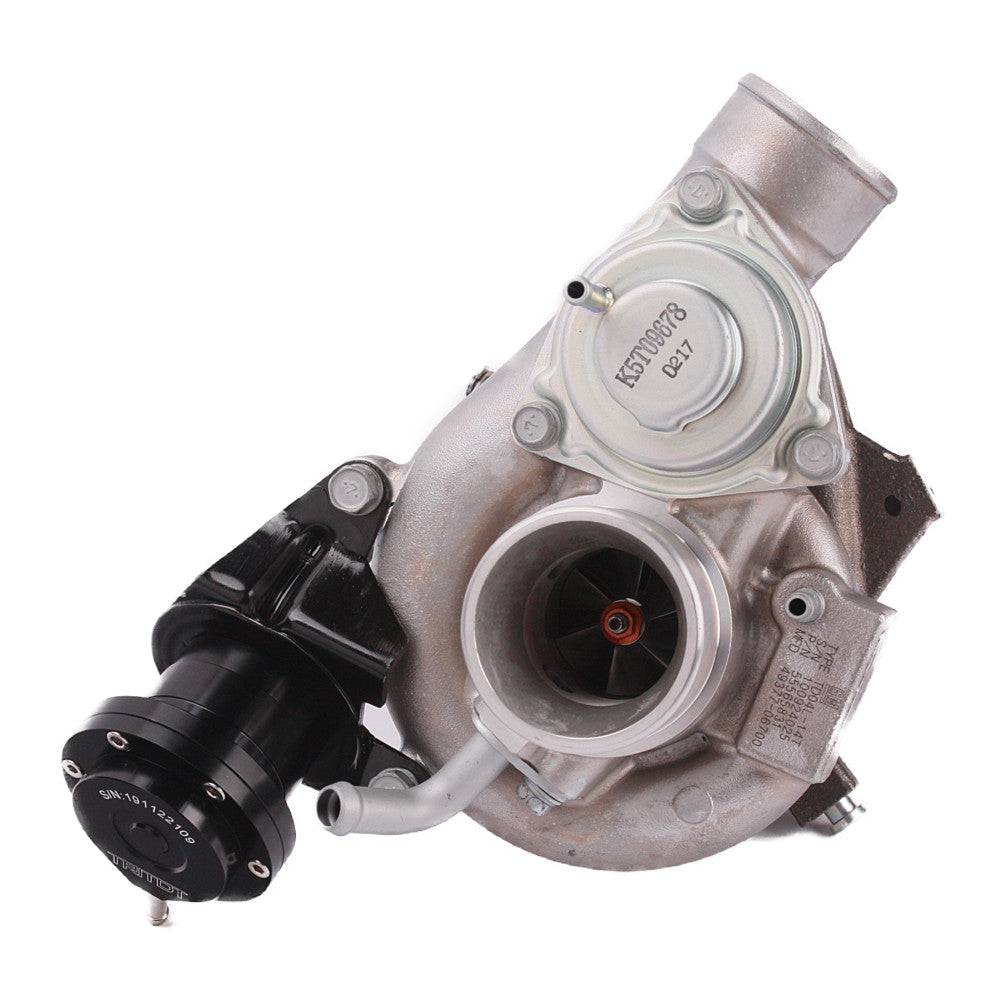

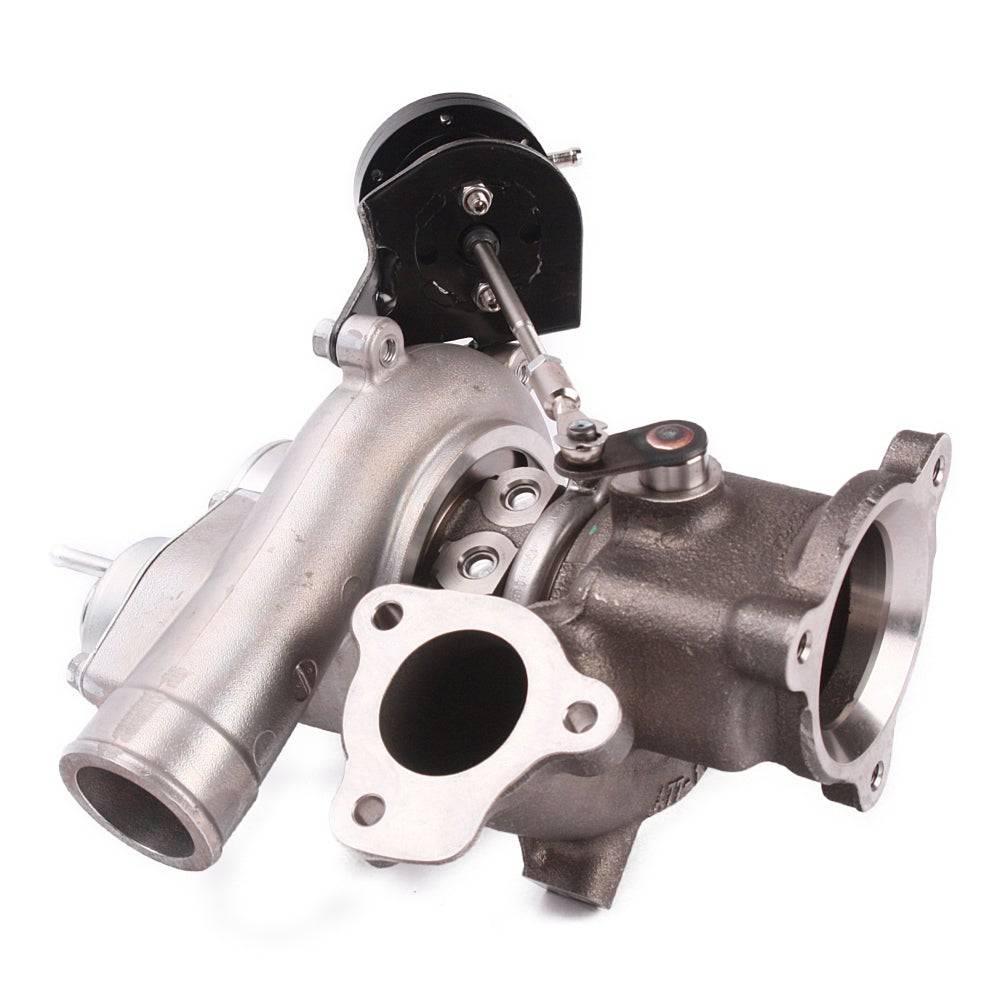

Kinugawa Turbo TD04L-19T 5cm for SAAB 9-3 2.0T B207L B207R Aero
$829.00 - $1,089.00
Shipping calculated at checkout.
Regular price
$829.00
Regular price
Sale price
$829.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 3 left
SKU:
301-02043-016
Collections:
Regular price
$829.00
Regular price
Sale price
$829.00
Application
- For Mitsubishi, please specify: 49377-06520
- For Saab P / N: 55564940
- For Saab 03 ~ 9-3 Aero 2.0l vector
- For Saab 03 ~ 05 9-3 2.0l arc b207l motor
- For Saab 03 ~ 9-3 Aero with engine b207r
- For Opel Vectra - Z20NET (rebadged B207L) 2006–2008
- For Opel Signum - Z20NET (rebadged B207L) 2003–2008
- For Cadillac BLS - B207L B207R 2006–2010
- For Opel Signum - Z20NET (rebadged B207L) 2003–2008
- For Cadillac BLS - B207L B207R 2006–2010
- Turbo P/N: 49377-06520
- OEM P/N: 55564940/55564941/55565831
- For GM PN: 55564940/55564941/55565831
- For MHI PN: 49377-06620 / 49377-06500 / 49377-06501 / 49377-06502 / 49377-06510 / 49377-06520
The turbo was upgraded from genuine MHI/GM turbochargers.
The Turbo upgraded from genuine MHI/GM turbochargers.
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's performance results are highly dependent upon your vehicle’s modifications and tuning/calibration.
Wheels Spec
- Compressor wheel: 46,0 / 58,0 mm (11+0 designed for top-end speed and 6+6 for low-end torque)
- Turbine wheel: 47 / 41.3 mm (2 types offered: STD, STS. Click here to learn more about STS technology.)
Turbines Housing
- Nozzle area: 5cm
- Wastegate: internal gated
- Wastegate: internal gated
Bearing Type
- Journal Bearing
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

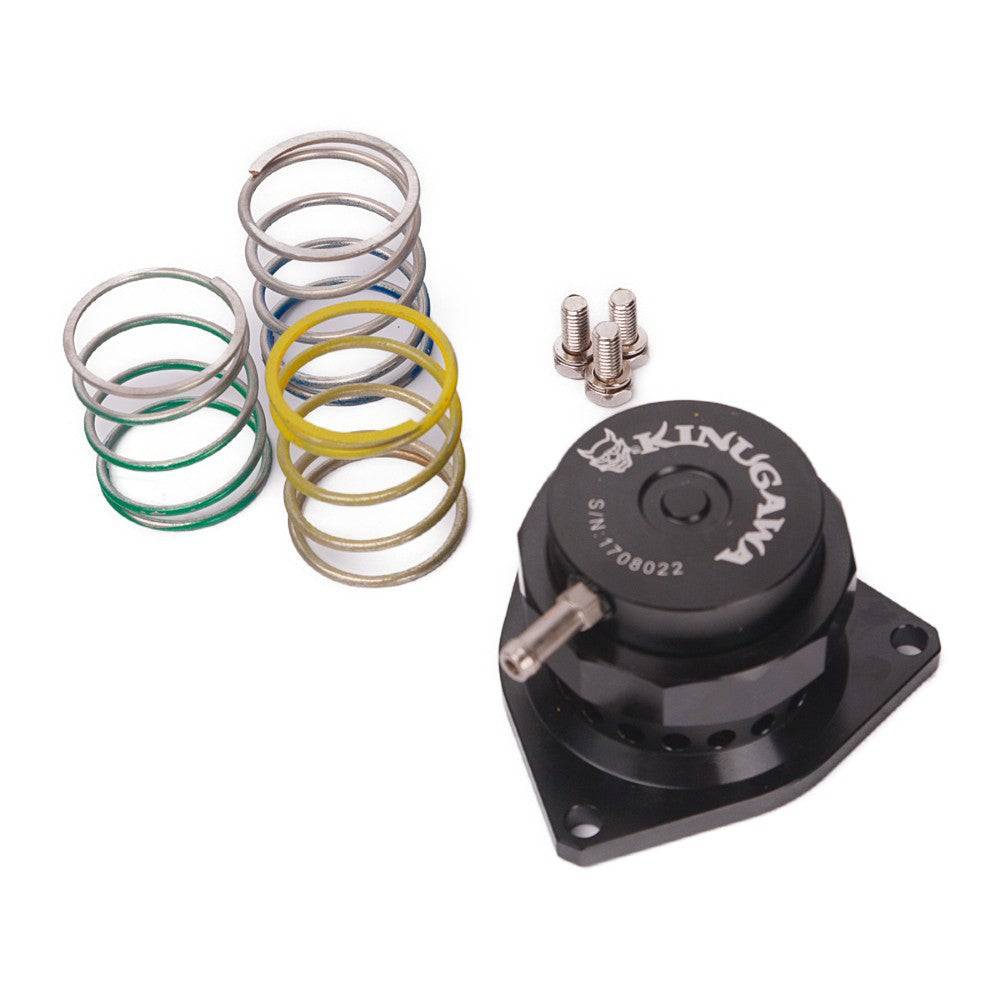

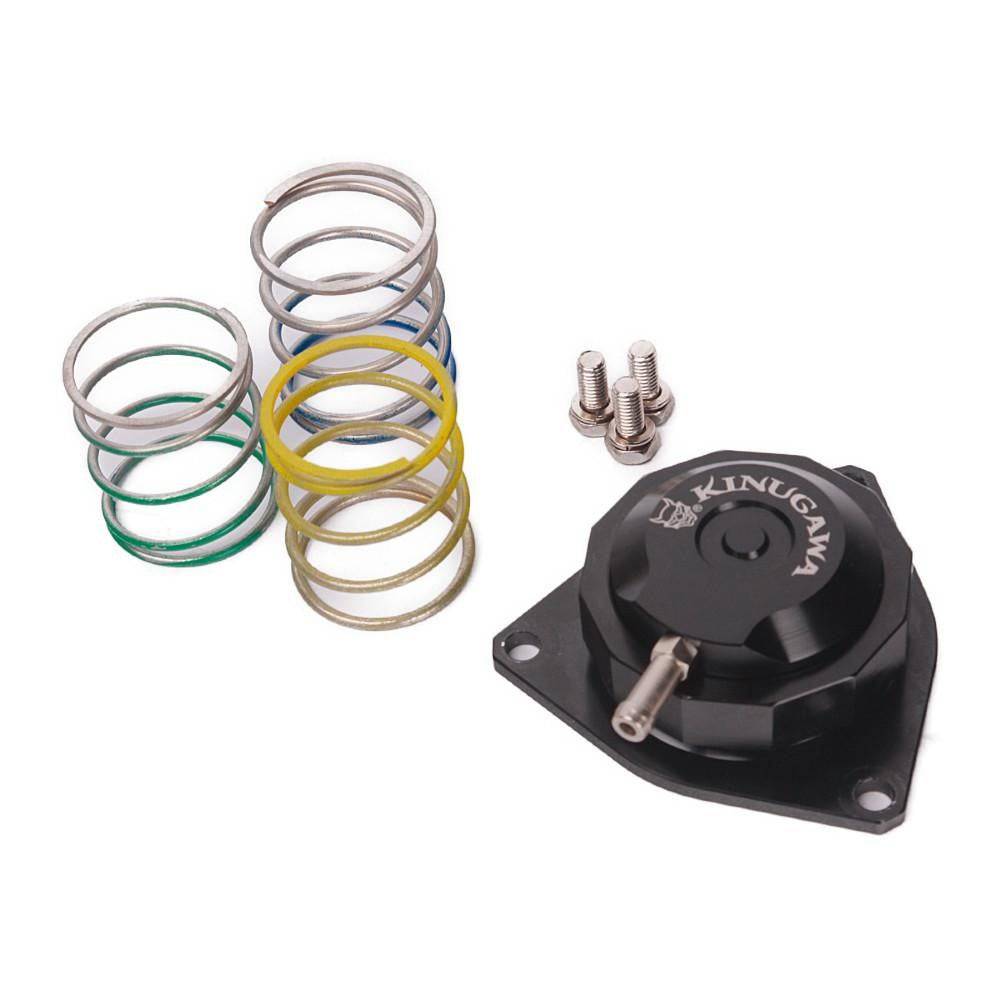

Valve Type - BOV / BCV
The compressor cover has a factory BCV that can be replaced with a block plate, adjustable blow-off valve (BOV), or recirculating valve (BCV).
(Click here to learn about the difference between BOV and BCV.↗)
- The suggestion of spring is according to the wastegate actuator spring pressure range.
- 1 x Green spring: 5~15 Psi (default installation)
- 1 x Yellow spring: 15~23 Psi (not included)
- 1 x Blue spring: 23~30 Psi (not included)
- Please add a note or contact us if you need to change to yellow or blue spring.
- 1 x Turbocharger

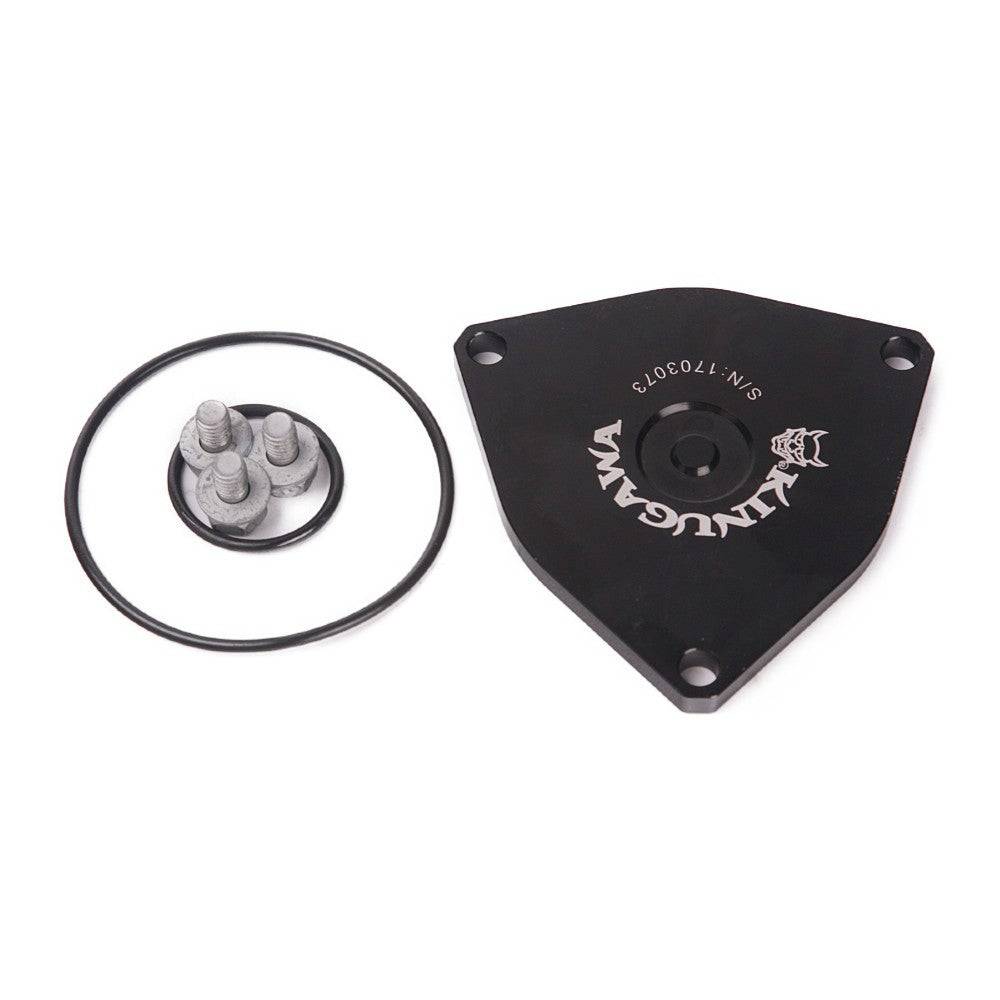

- 1 x Factory BCV, black plate, or adjustable BOV/BCV (4 options)
- 1 x Balanced report with anti-counterfeit tag↗
Situation
- Brand New
- Execute the balanced cartridge on SCHENK MRBS 110 to ensure it can work very well.
Provider
- Kinugawa Turbo Systems
WARRANTY
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
