By KINUGAWA
Kinugawa Turbo CT26 for Toyota Land Cruiser 1HD-T 4.2L HDJ80 HDJ81 HDJ82 Bolt-on
$989.00 - $1,169.00
Shipping calculated at checkout.
Regular price
$989.00
Regular price
Sale price
$989.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 4 left
SKU:
301-02052-001
Tags:
Collections:
Regular price
$989.00
Regular price
Sale price
$989.00
Application
- TOYOTA HDJ80 HDJ81 HDJ82 1HD-T / 1HD-FT 4.2L Diesel LandCruiser
- Replace stock 17201-17010, 17201-17020, and 17201-17030 Turbocharger.
- 1990~1997 4.2L 1HD Diesel TOYOTA Landcruiser / Land Cruiser HDJ80 / 81 / 82
Wheels Spec
- Compressor wheel: 41.8 / 65 mm (cast/billet stock type)

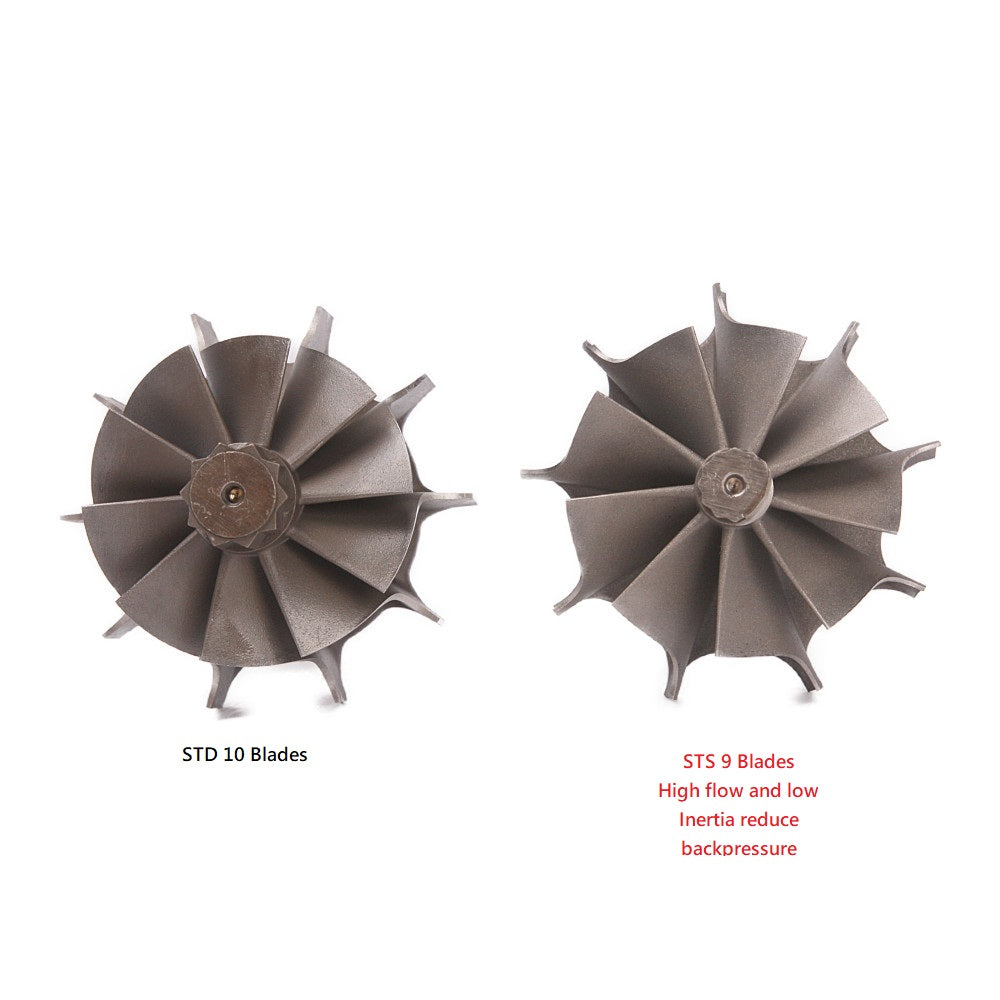

- Turbine wheel: 51.9 / 67.9 mm (Inconel 713) (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- Bolt-on stock type
Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool response than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Bolt-on stock type
Bearing Type
- Journal Bearing
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Kit Includes

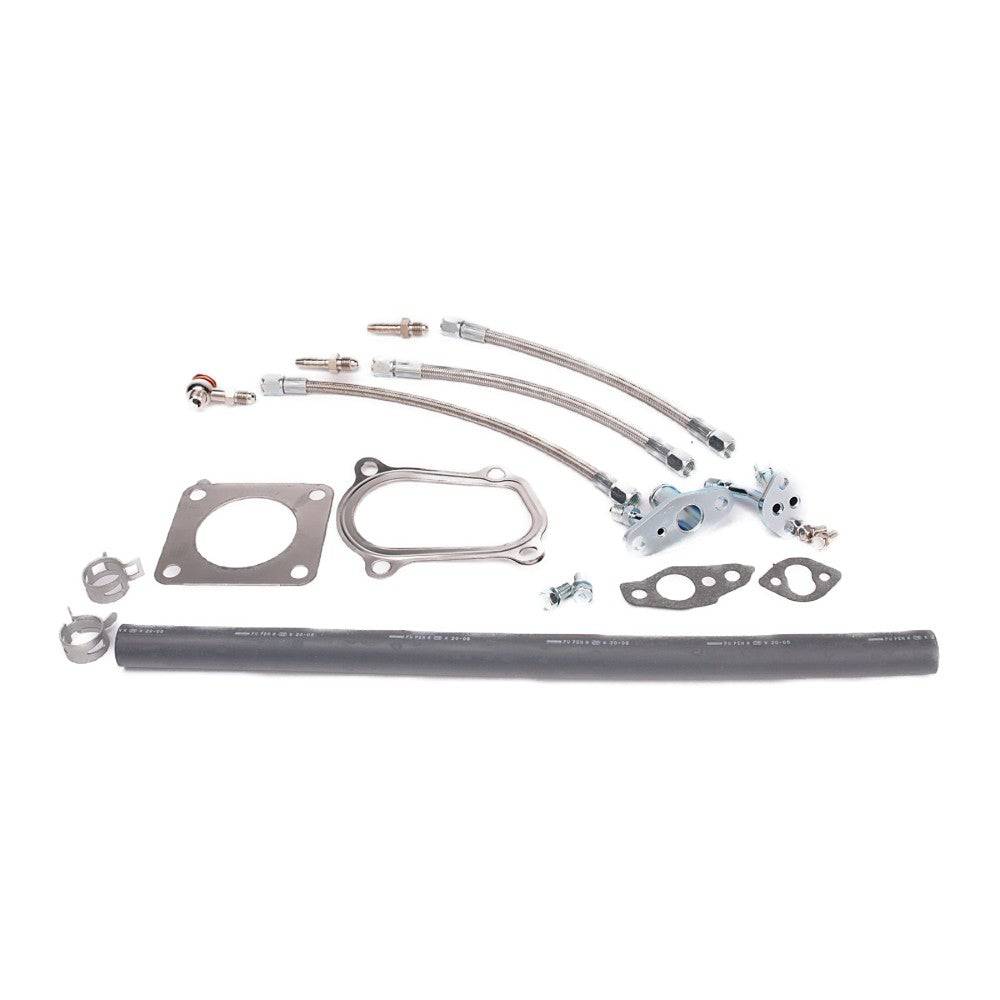

- 1 x Turbo install kit
- 1 x Turbocharger
- 1 x Kinugawa balance report with anti-counterfeit tag
Situation
- Brand New
Provider
- Kinugawa Turbo Systems
Warranty
- TOYOTA HDJ80 HDJ81 HDJ82 1HD-T / 1HD-FT 4.2L Diesel LandCruiser
- Replace stock 17201-17010, 17201-17020, and 17201-17030 Turbocharger.
- 1990~1997 4.2L 1HD Diesel TOYOTA Landcruiser / Land Cruiser HDJ80 / 81 / 82
Wheels Spec
- Compressor wheel: 41.8 / 65 mm (cast/billet stock type)
- Turbine wheel: 51.9 / 67.9 mm (Inconel 713) (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- Bolt-on stock type
Turbine Housing
- Nozzle area: 7cm / AR.49 (faster spool response than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Bolt-on stock type
Bearing Type
- Journal Bearing
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Kit Includes
- 1 x Turbo install kit
- 1 x Turbocharger
- 1 x Kinugawa balance report with anti-counterfeit tag
Situation
- Brand New
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
