  3. Kinugawa Turbo CHRA Cartridge for TOYOTA 1HD-FTE Land Cruiser CT12B CT20B CT26 Bolt-on
By KINUGAWA

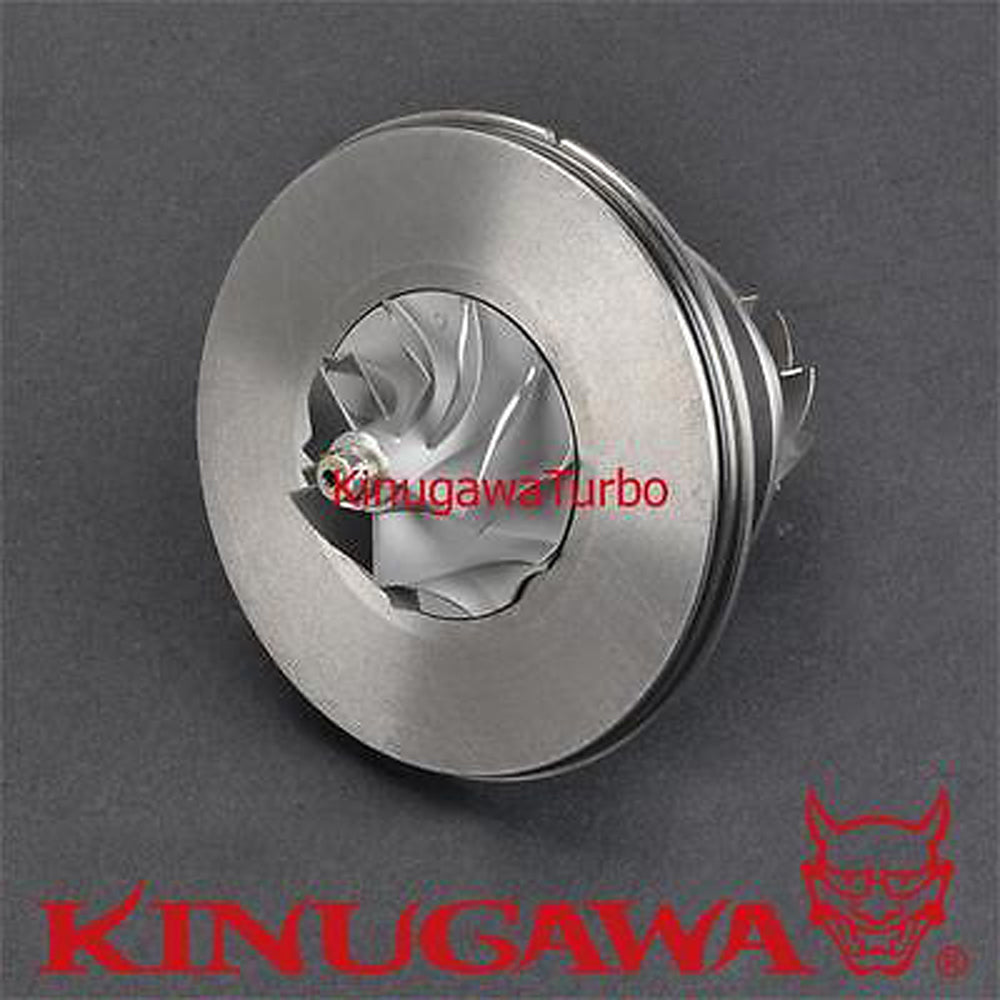

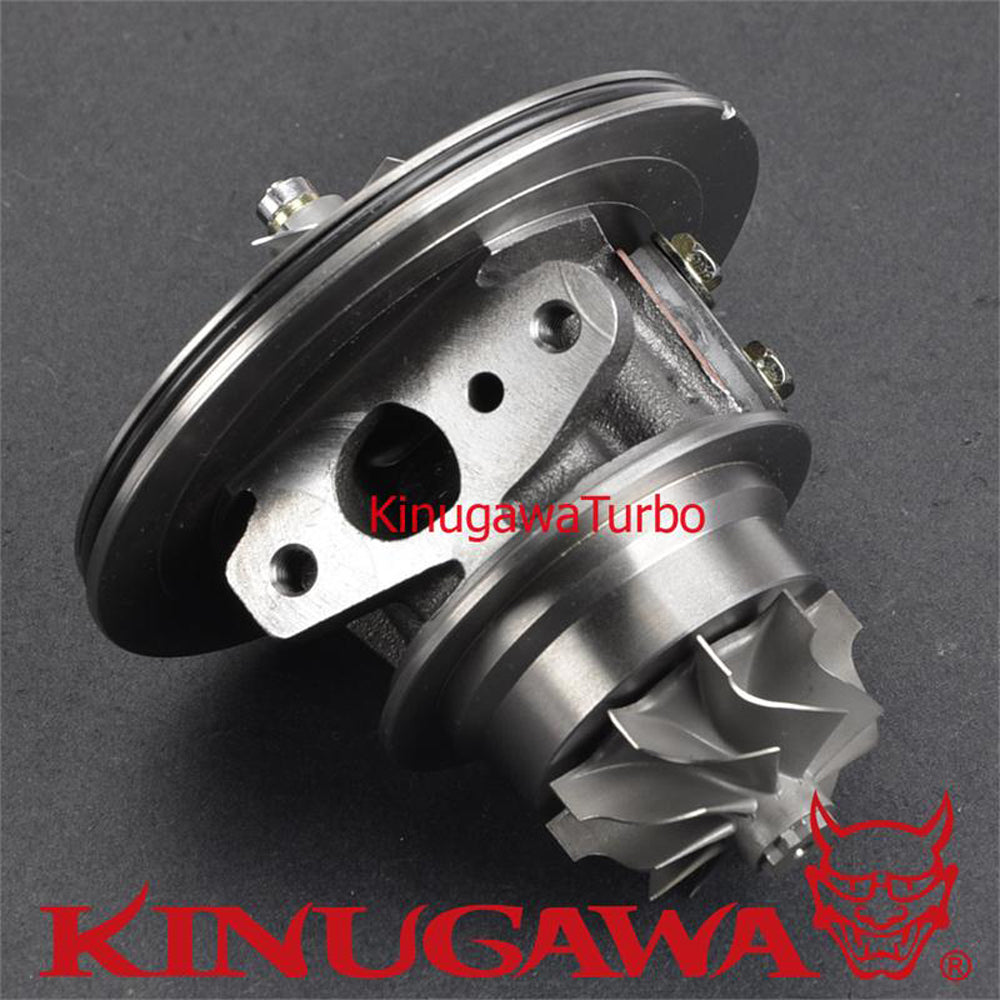

Kinugawa Turbo CHRA Cartridge for TOYOTA 1HD-FTE Land Cruiser CT12B CT20B CT26 Bolt-on

$579.00 - $659.00
Shipping calculated at checkout.
Compressor Wheel: Cast 5+5
Turbine Wheel: 10 Blades STD
$579.00
$579.00 $579.00
Availability: Low stock: 3 left
SKU: 303-02107-001
Tags:
Collections:
Kinugawa Turbo CHRA Cartridge for TOYOTA 1HD-FTE Land Cruiser CT12B CT20B CT26 Bolt-on
$579.00
$579.00 $579.00
Application
- For TOYOTA Landcruiser 4.2LD HDJ100, HDJ78, HDJ79 1HD-FTE CT12B CT20B CT26
- Replacement Original 17201-17020, 17201-17030, 17201-17040 Turbocharger
- For TOYOTA Coaster HDB50, HDB51

Wheels Spec
- Compressor wheel: stock wheel spec  45.9 / 64.9 mm
- Turbine wheel: 60.5 / 48.0 mm (Inconel 713 / stock type)

Bearing Type
- Journal Bearing with 360-degree performance thrust bearing kit.

Cooling Type
- Oil and water cooling

The Set Includes
- 1 x CHRA

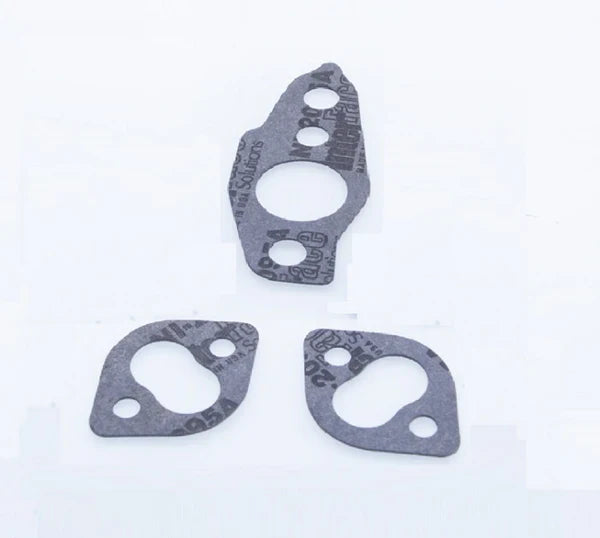

- 1 x Oil feed and return gasket (#313-06052-001)
- 2 x Water coolant gasket
- 1 x Balance Report with an anti-counterfeit tag
Situation
- Brand New

Provider
- Kinugawa Turbo Systems

Warranty
- No
