By KINUGAWA

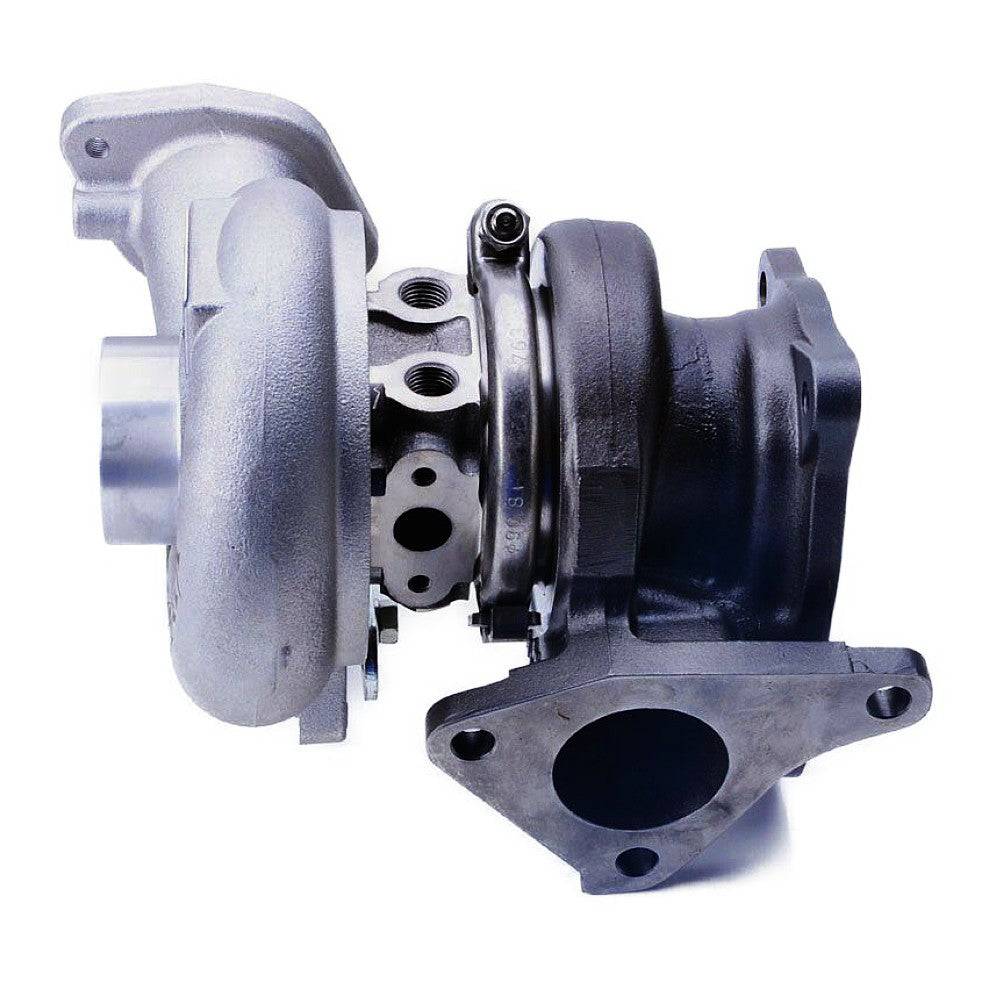

Kinugawa Turbo Ball Bearing TD06SL2-GTX3071R for Subaru Legacy GT 05-09 WRX 08-14
$1,319.00 - $1,339.00
Shipping calculated at checkout.
Regular price
$1,319.00
Regular price
Sale price
$1,319.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 4 left
SKU:
351-02049-284
Tags:
- Ball Bearing Turbo,
- Forester,
- GE,
- GH,
- GR,
- GTX3071R,
- GV,
- Legacy,
- Liberty,
- STS,
- STS Advanced,
- Subaru WRX,
- TD06SL2
Collections:
Regular price
$1,319.00
Regular price
Sale price
$1,319.00
Description
- Is the factory turbocharger feeling a little tired? Or if you are ready to make a little more power without going way over the top, then you will be pleased with the Kinugawa STS Advanced Turbocharger. This is an excellent upgrade for those who want more power while maintaining a great mid-range to high-range response.
Application
- 2007~2011 GE GH GR GV EJ20 / Ej25 engine on WRX, Forester, and Legacy.
- Subaru Legacy Liberty GT 05-09 / Outback 05-09/ Forester 2.5XT 09- / WRX EJ25 GH8 08-14
- Replace turbo as Mitsubishi TF035HM, TD04L-13T (49477-04000) or IHI VF40, VF46, VF52 on WRX, Legacy, or Forester
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD06SL2-GTX3071R
Wheels Spec
- Compressor wheel: 54.1 / 71.4mm ( GTX3071 billet 11+0 blades wheel)
- Turbine wheel: 61 / 54 mm (Click here to learn more about STS technology.↗)

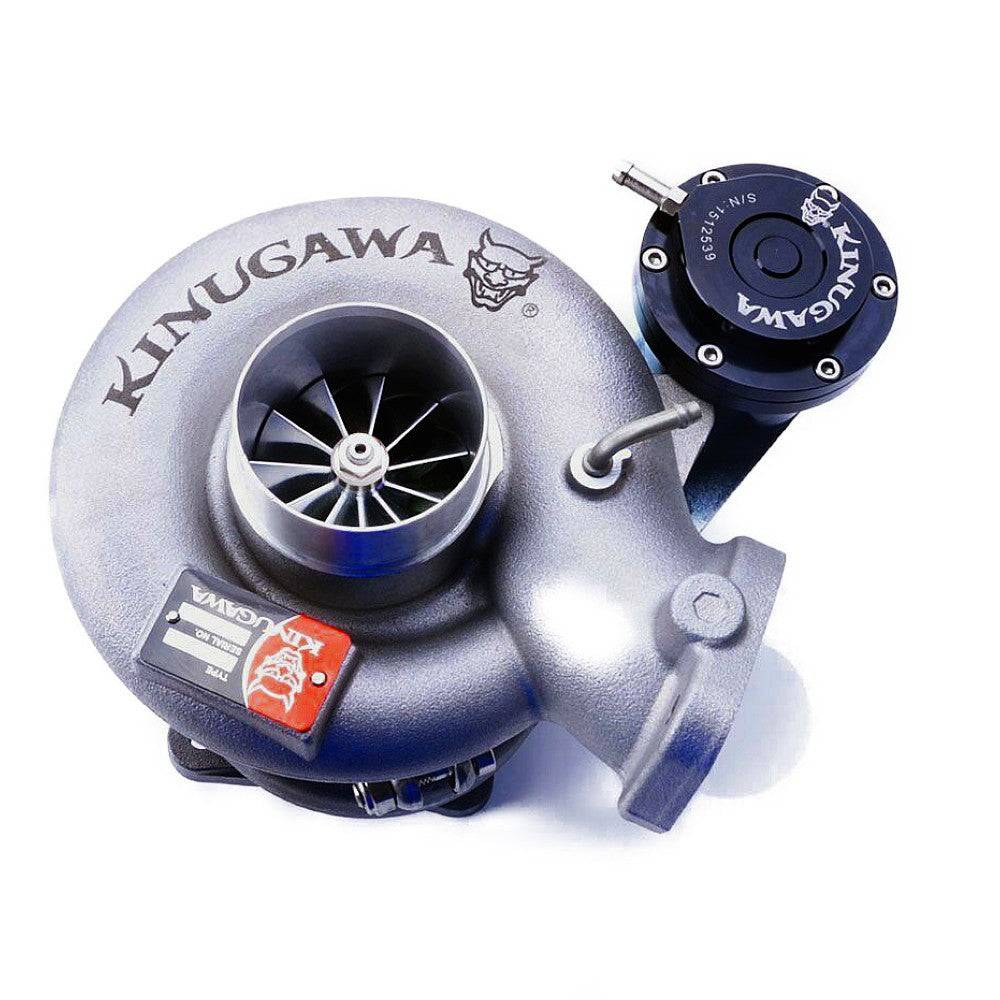

Compressor Housing
- Inlet: 2.25"
- Outlet: flange type
- Outlet: flange type

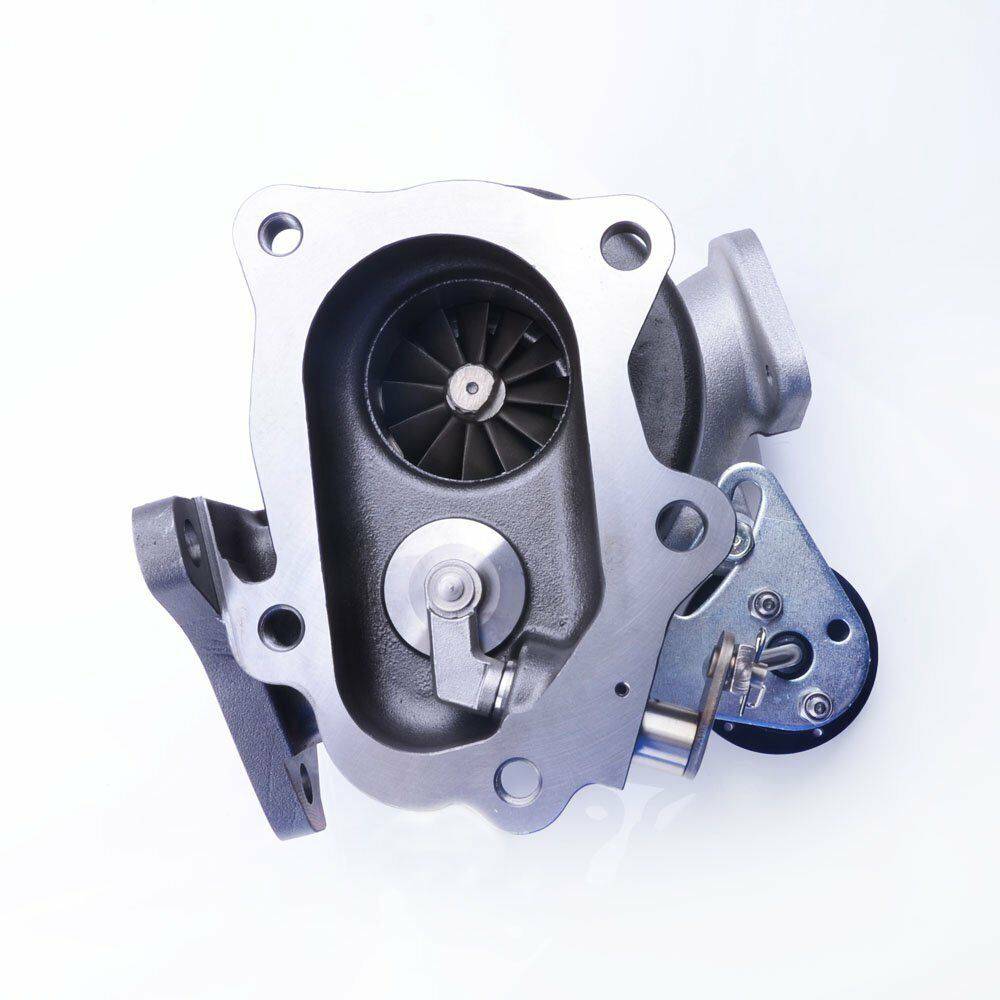

Turbines Housing
- Nozzle area: 8cm / AR.57; 10cm / AR.73
- Inlet: Subaru single scroll
- Outlet: Subaru single scroll
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
- Inlet: Subaru single scroll
- Outlet: Subaru single scroll
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

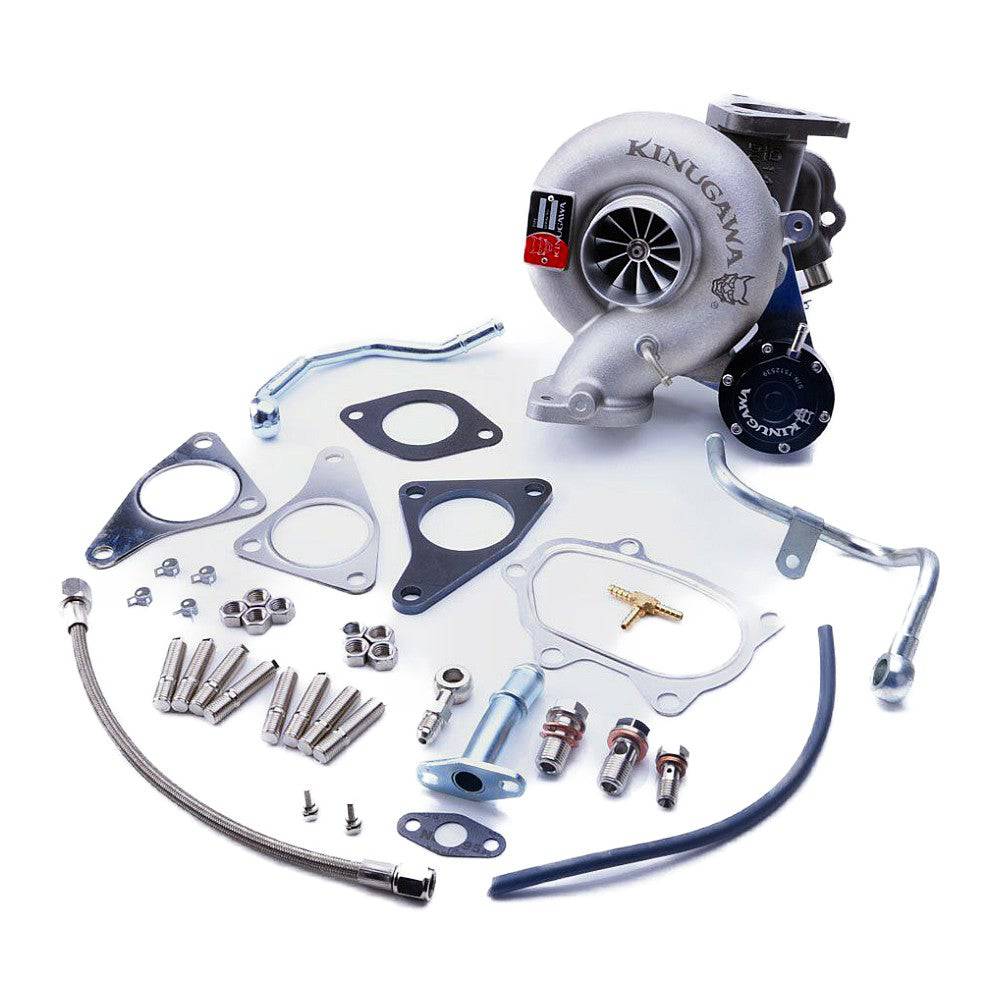

The Set Includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 8 x Stud And Nut Set
- 1 x Turbocharger
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
