Kinugawa Turbo Ball Bearing TD05H-16K for Mitsubishi 4G63T Lancer EVO 1~3 Galant VR-4 DSM 1G 2G

Applications:
- Fits 4G63T Mitsubishi Lancer EVO 1~3, Galant VR-4, DSM 1G / 2G, Eagle Talon, Plymouth Laser bolt-on directly

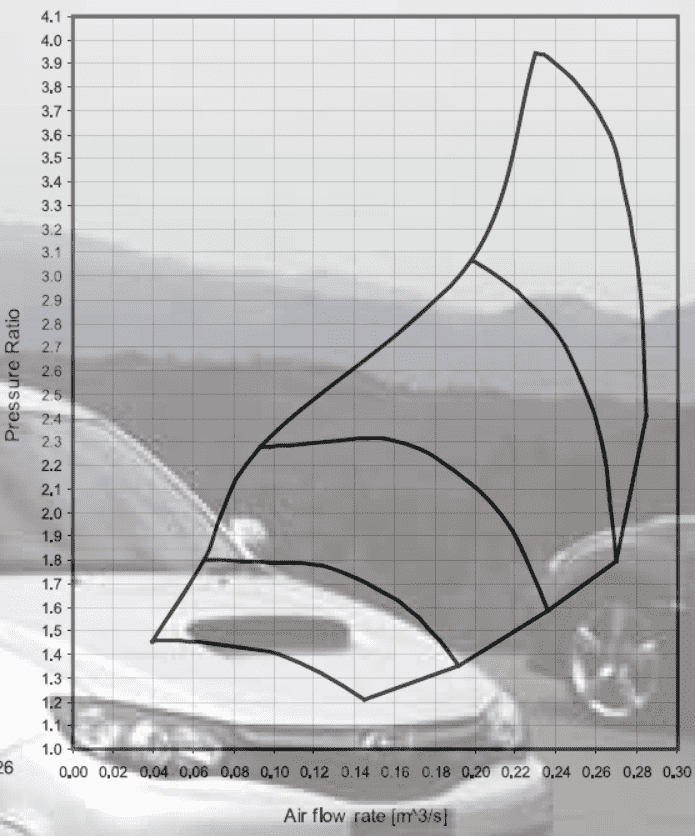

The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.

Wheels Spec

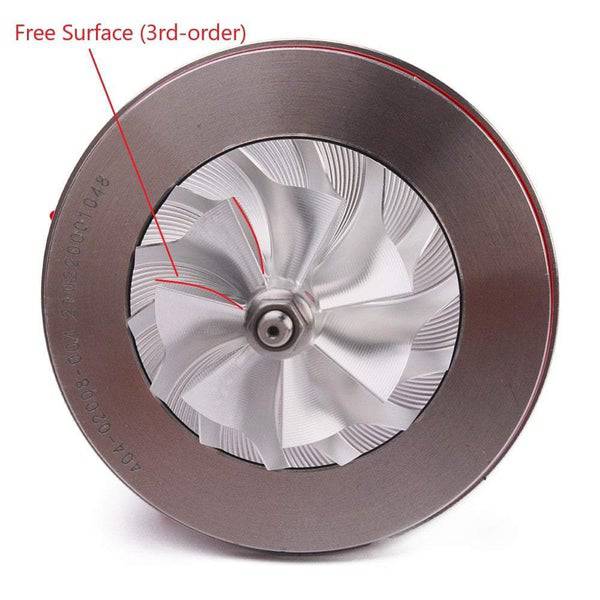

- Compressor wheel: 49.5 / 68.0 mm Point Milling / Third-order Surface

This high-performance 68mm compressor blends quick response and top-end power with OE reliability. The billet 16KX billet compressor wheel utilizes their latest generation blade aero with 7 splitter blades.

	Free Surface	Ruled Surface
Process	Point Milling	Flank Milling
Machining Time	Slow 120 mins.each	Quick 15 mins.each
Characters	1. Free Surface can be only produced by Point Milling 2. More air pressure and increase much better flow efficiency. 3. Mainly for high-efficiency turbochargers.	1. Ruled Surface can be produced by Flank Milling 2. Low efficiency 3. Only suitable to the very easy design of compressor wheel 4. Mainly for fundamental mechanical engineering such as Centrifugal compressor

- Turbine wheel: 56 / 49.2 mm
　( Click here to learn more about STS technology.↗)

Compressor Housing
- Inlet: stock 2.5″
- Outlet: stock 2-bolt

Turbine Housing
- Nozzle Area: 7cm
- Inlet: Mitsubishi single scroll
- Outlet: Mitsubishi 4-bolt
- Wastegate: internal gated with 34mm wastegate flapper

Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)

Cooling Type
- Oil and water cooling

Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

Situation
- Brand New

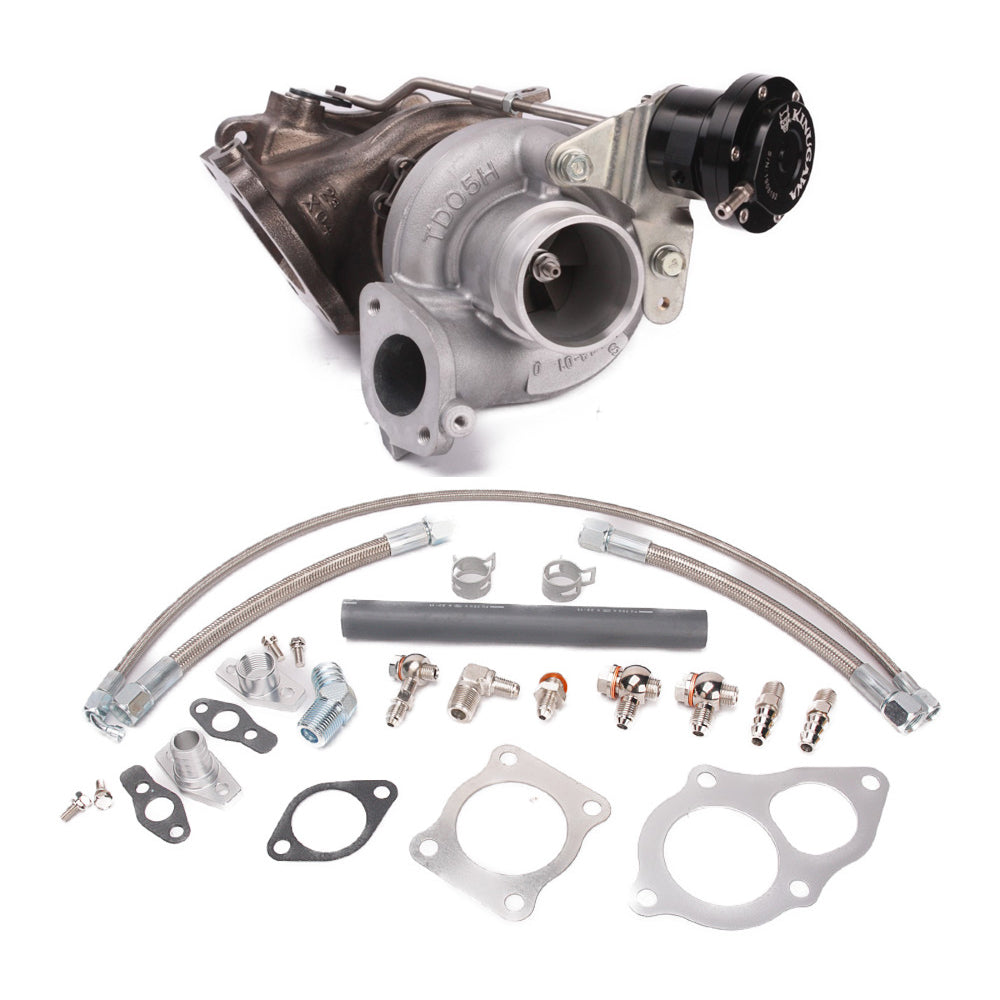

The set includes
- 1 x turbocharger
- 1 x oil feed line kit
- 1 x oil return line kit
- 1 x water feed and return line kit
- 1 x turbine In&out gaskets
- 1 x Balance Report with Anti-Counterfeit Tag

Provider
- Kinugawa Turbo Systems

[Install kit instruction]

Warranty

- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
