Kinugawa Turbo Ball Bearing TD06H-25G for Mitsubishi 4B11T Lancer EVO 10 X RS GSR GST SE Ralliart
Regular price
$1,529.00
Regular price
Sale price
$1,529.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Availability:
Low stock: 3 left
SKU:
351-02034-139
Collections:
Regular price
$1,529.00
Regular price
Sale price
$1,529.00
Application
- For Mitsubishi 4b11T EVO 10 / EVO X
- Japanese models: RS, GST
- North American models: GRS, MR, MR Premium, MR Touring, SE, Final Edition
- UK cars kept the Evolution X name. GS, GSR SST, FQ-300, FQ-330, FQ-360, FQ-400, FQ400 MR

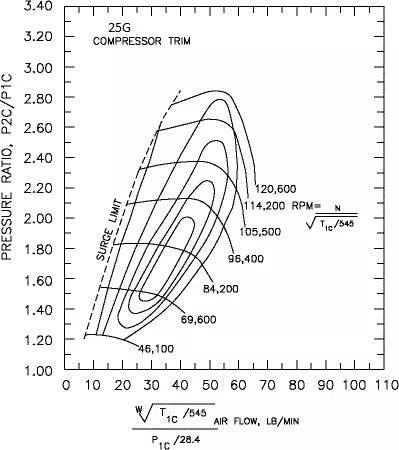

The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
Wheels Spec
- Compressor wheel: 60.5 / 78 mm (The 6+6 blade type better for low-end torque, and the 11+0 is for top-end speed)
- Turbine wheel: 58.8 / 67.2 mm (T06H 9 blades STS. Click here to learn more about STS technology.↗)
Compressor Housing
- Inlet: stock 3-bolt
- Outlet: stock 2-bolt

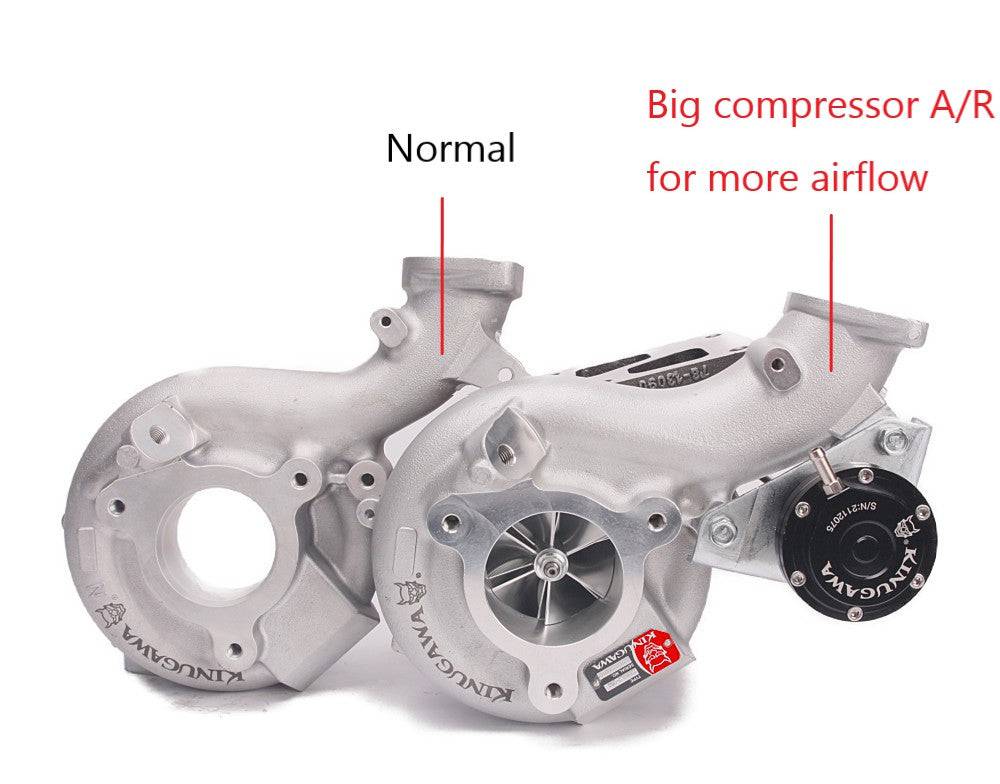

- Big A/R stock location for more airfow.

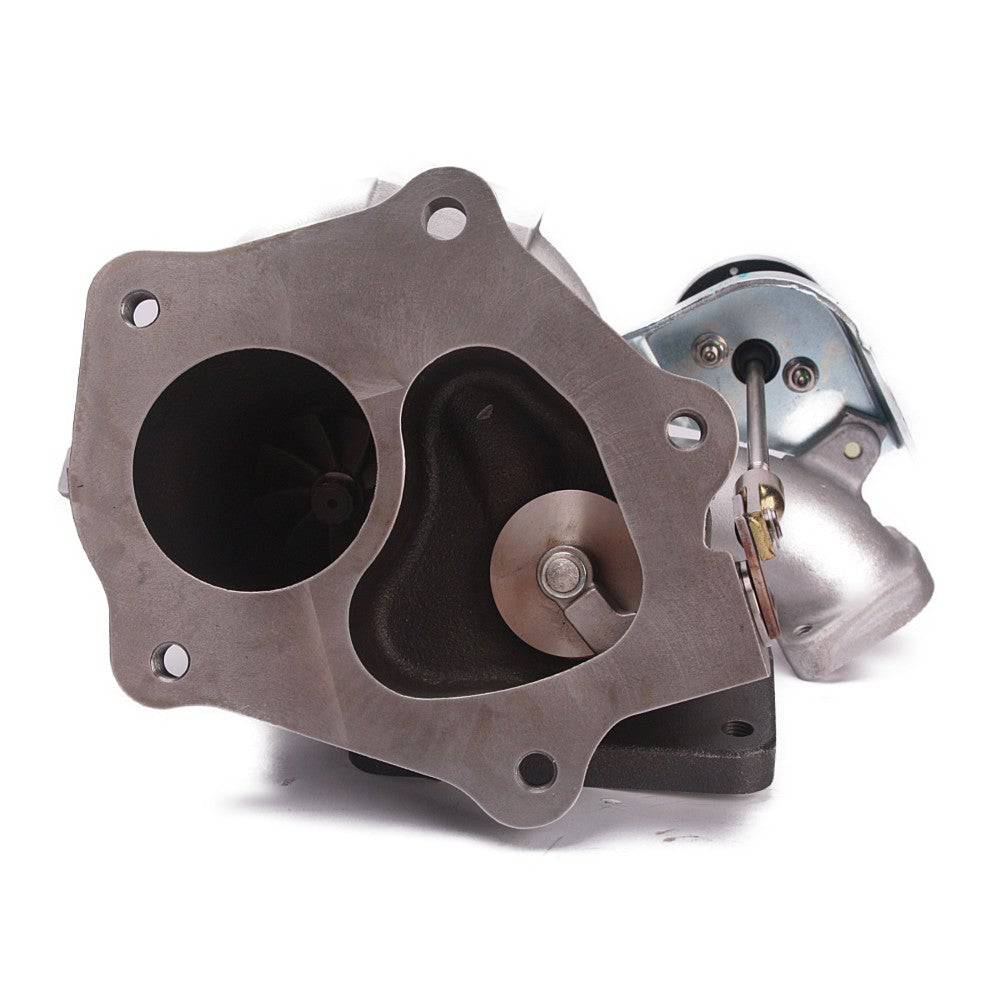

Turbine Housing
- Nozzle area: 12cm
- Inlet: Mitsubishi twin scroll
- Outlet: Mitsubishi 5-bolt
- Wastegate: internal gated
- Hi-Ni 22% thermal resistance material, which endures higher temperature
- Inlet: stock 3-bolt
- Outlet: stock 2-bolt
- Big A/R stock location for more airfow.
Turbine Housing
- Nozzle area: 12cm
- Inlet: Mitsubishi twin scroll
- Outlet: Mitsubishi 5-bolt
- Wastegate: internal gated
- Hi-Ni 22% thermal resistance material, which endures higher temperature
Bearing Type
- STS Advanced (Dual Ceramic Ball Bearing)
Cooling systems
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Situation
- Brand New

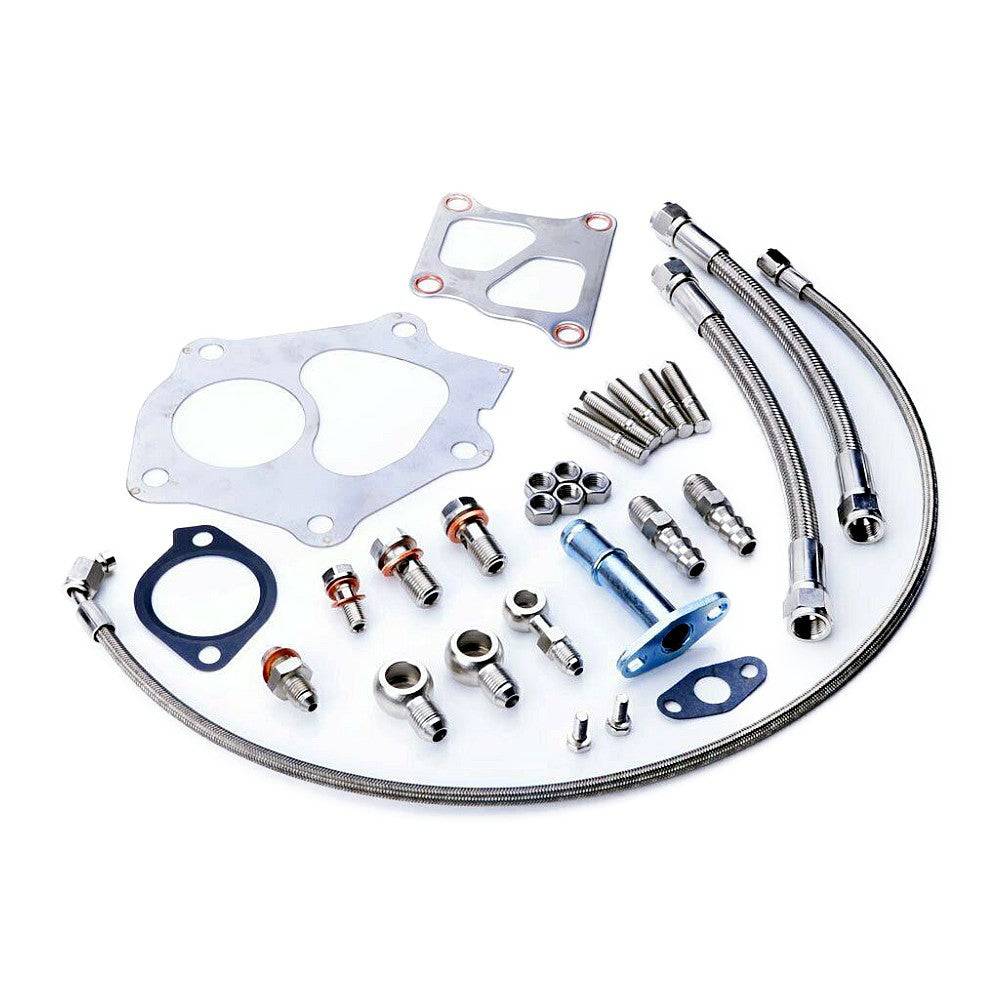

The set includes
- 1 x Oil set for oil supply
- 1 x Return Oil Pipeline
- 1 x water coolant and return kit (6an / large hose)
- 1 x Turbine gasket kit
- 1 x Turbocharger
Instruction
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
