By KINUGAWA

Kinugawa Turbo Ball Bearing CHRA Cartridge TF06-18K for Mitsubishi 4B11T EVO X 10

Regular price $1,029.00
Regular price Sale price $1,029.00
Shipping calculated at checkout.
Availability: Low stock: 3 left
SKU: 403-12001-104
Collections:
Regular price $1,029.00
Regular price Sale price $1,029.00

Application
- For Kinugawa/Mitsubishi EVO 10 X TF06-18K turbocharger
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's performance results are highly dependent upon your vehicle’s modifications and tuning/calibration.

CHRA Size
- TF06-18KX (aka 18K)

WHEEL SPEC

 -Compressor wheel: 55.1 / 75 mm (7+7 Point Milling / Third-Order Surface)
This high-performance 75mm compressor blends quick response and top-end power with OE reliability. The billet 18KX billet compressor wheel utilizes their latest generation blade aero with 7 primary blades and 7 splitter blades for a max flow rate of 54lb/min. This turbo is capable of producing 500+whp with a built engine and supporting modifications.

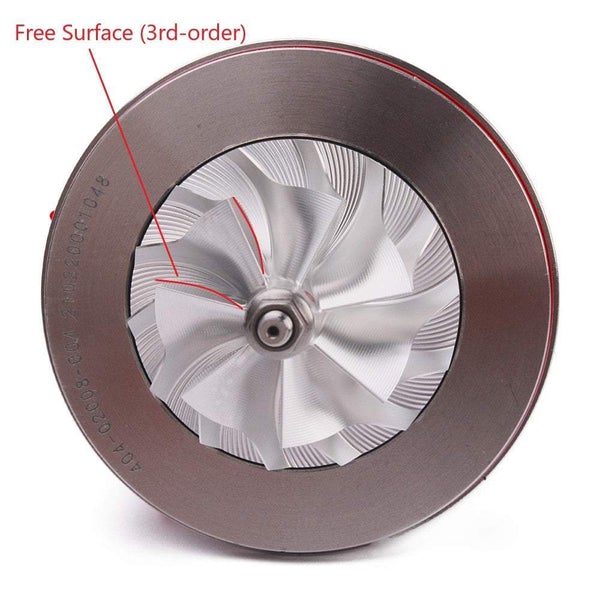

Kinugawa Turbo Systems Third-order surface compressor wheel
Free Surface Ruled Surface
Process Point Milling Flank Milling
Machining Time Slow 120 mins.each Quick 15 mins.each
Characters


1. Free Surface can be only produced by Point Milling
2. More air pressure and increase much better flow efficiency.
3. Mainly for high-efficiency turbochargers.

1. Ruled Surface can be produced by Flank Milling
2. Low efficiency
3. Only suitable to the very easy design of compressor wheel
4. Mainly for fundamental mechanical engineering such as Centrifugal compressor

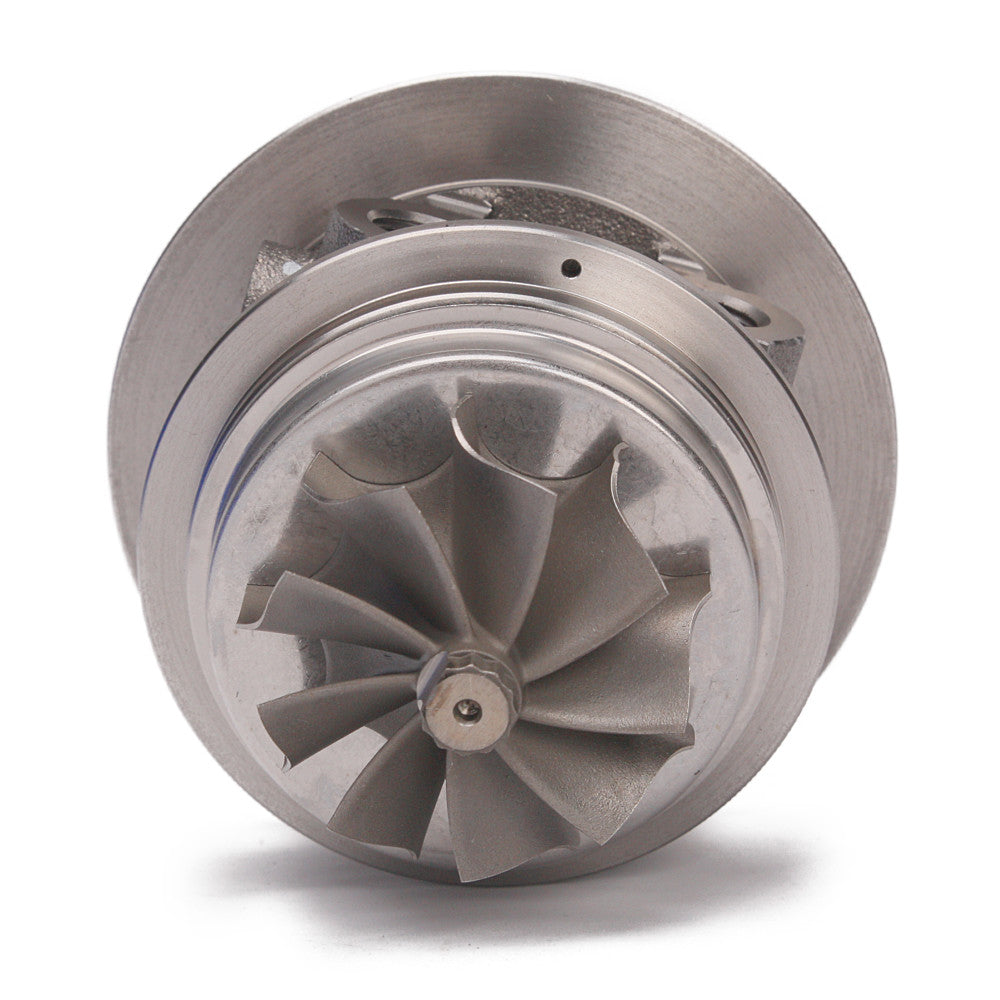

- Turbine wheel: 54 / 61.5 mm (9 blades STS. Click here to learn more about STS technology.)


Bearing Type
STS Advanced (Dual Ceramic Ball Bearing)
Kinugawa Turbo STS Advanced Ball Bearing Technology
Cooling Type
- Oil and water cooling

The Set Includes
- 1 x CHRA

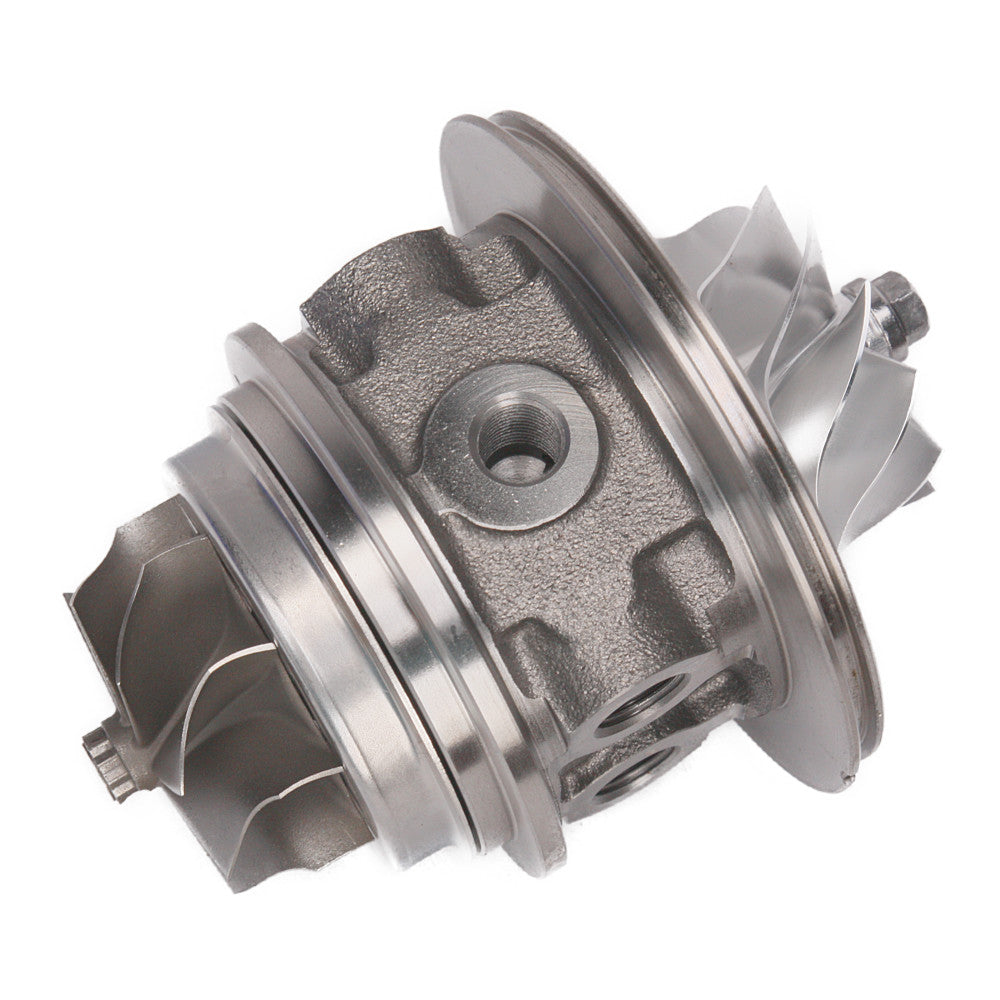

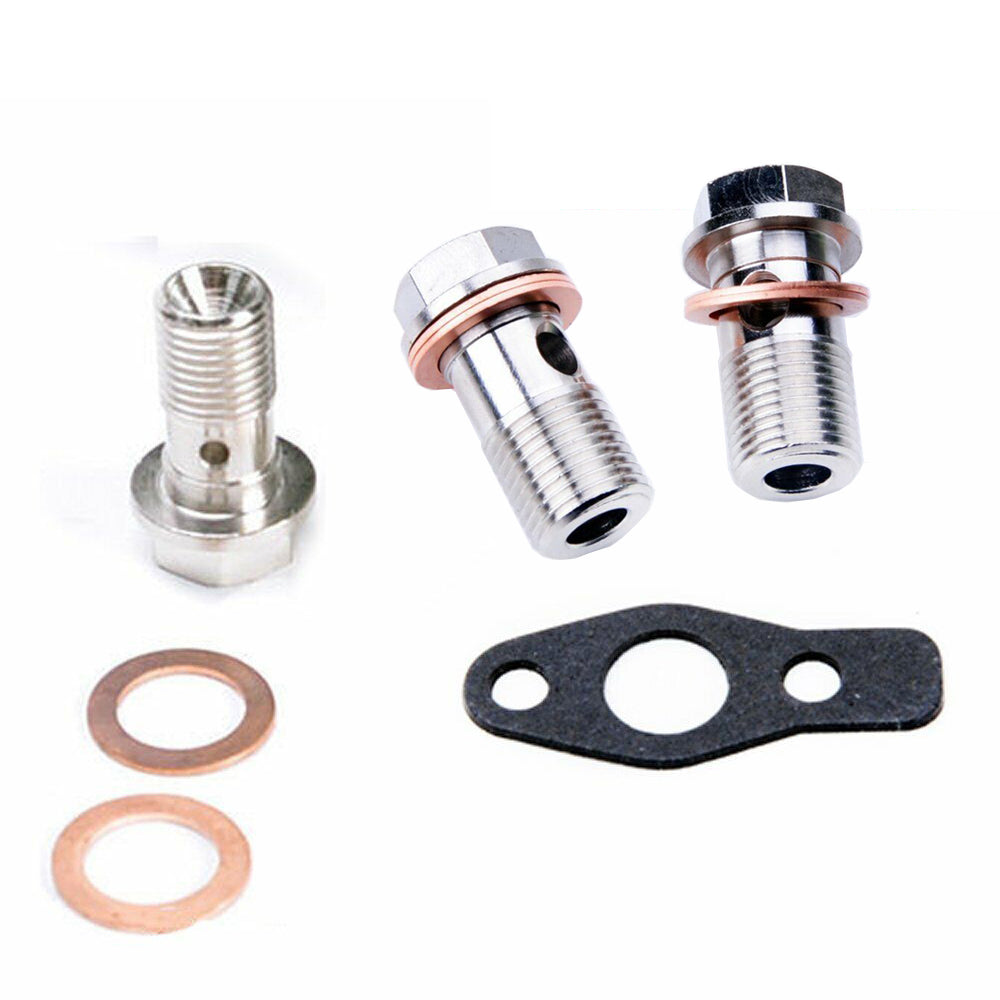

- 1 x Banjo bolt w/ washer for turbo oil feed side

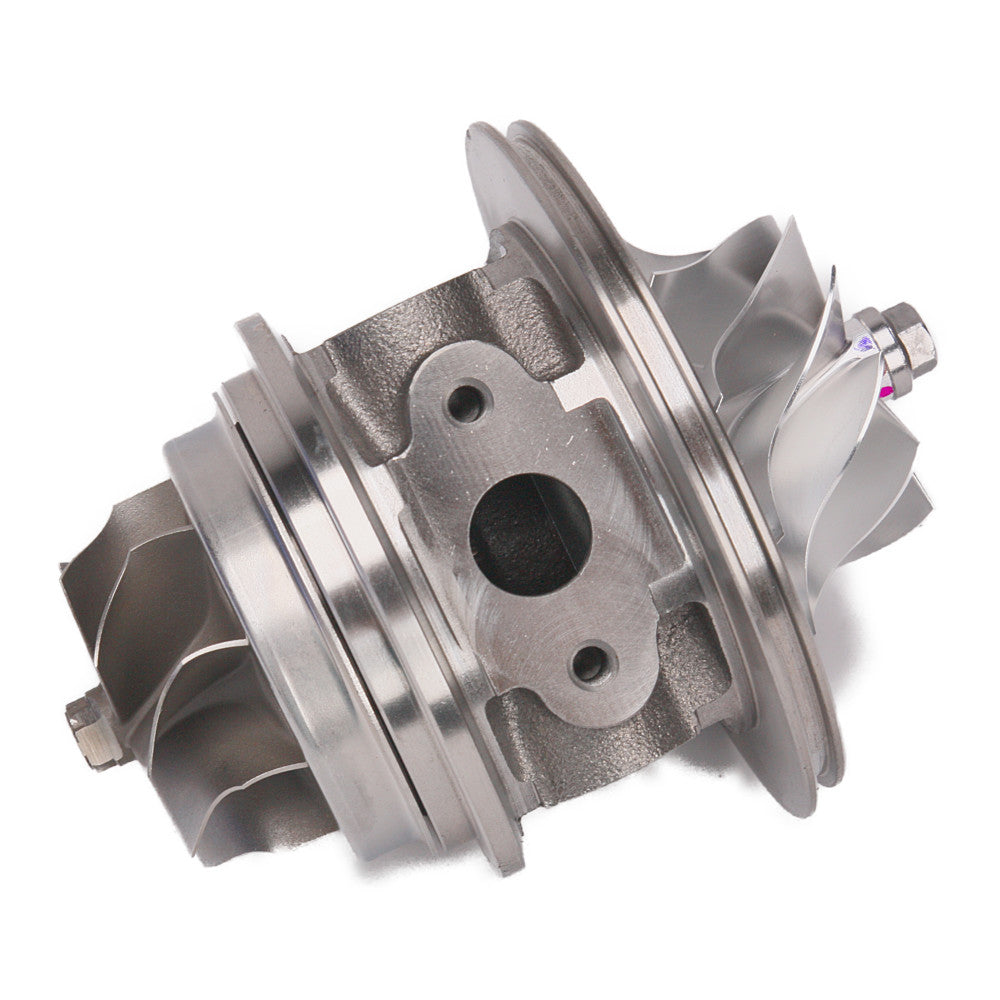

- 1 x Oil return gasket

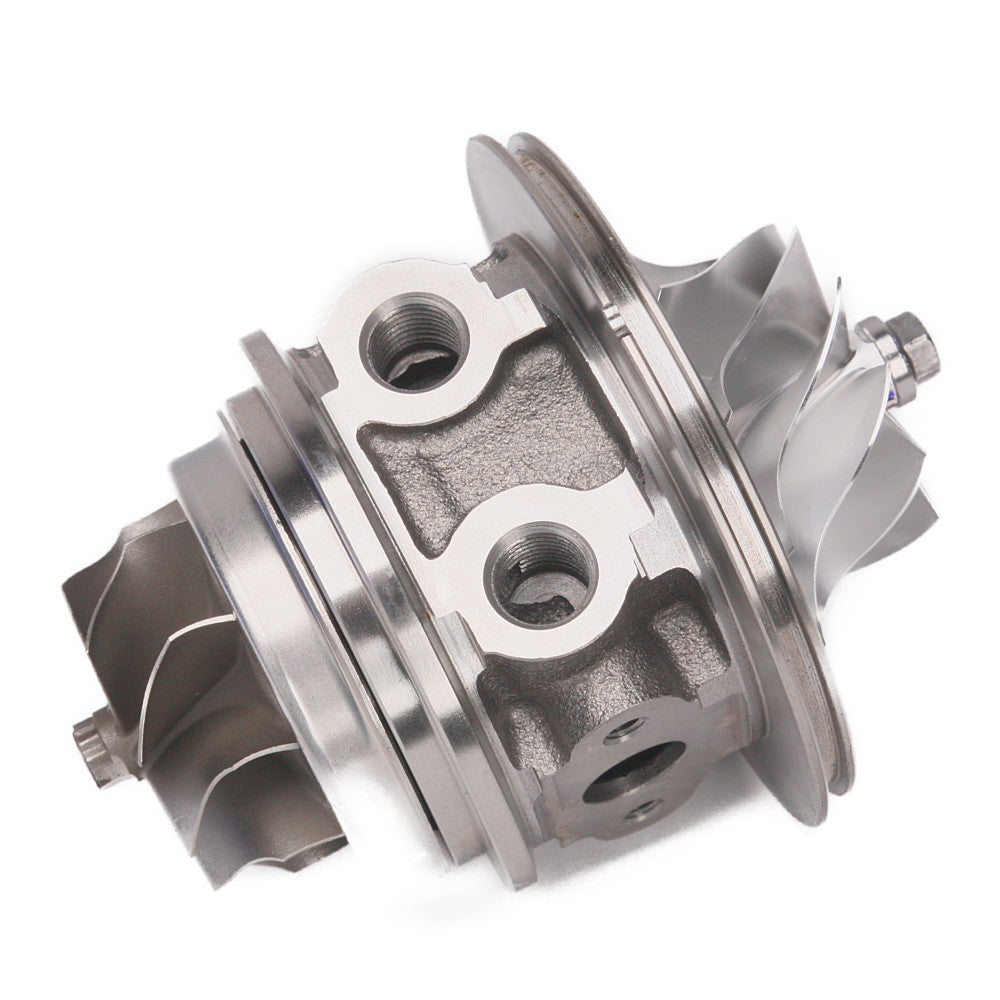

- 2 x Banjo bolts w/ washer for turbo water coolant side
- 1 x Balance Report with Anti-Counterfeit Tag

Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany

Provider
- Kinugawa Turbo Systems

Warranty
No
