Kinugawa Turbo 3" TD05H-20G 7cm for Toyota Land Cruiser 1HD-T 1HD-FT 1HD-FTE
$989.00 - $1,189.00
Shipping calculated at checkout.
Regular price
$989.00
Regular price
Sale price
$989.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 4 left
SKU:
301-02052-055
Tags:
- 17201-17010,
- 17201-17030,
- 1HD-FT,
- 1HD-T,
- CT26,
- HDJ80,
- HDJ81,
- HDJ82,
- Land Crusier
Collections:
Regular price
$989.00
Regular price
Sale price
$989.00
Description

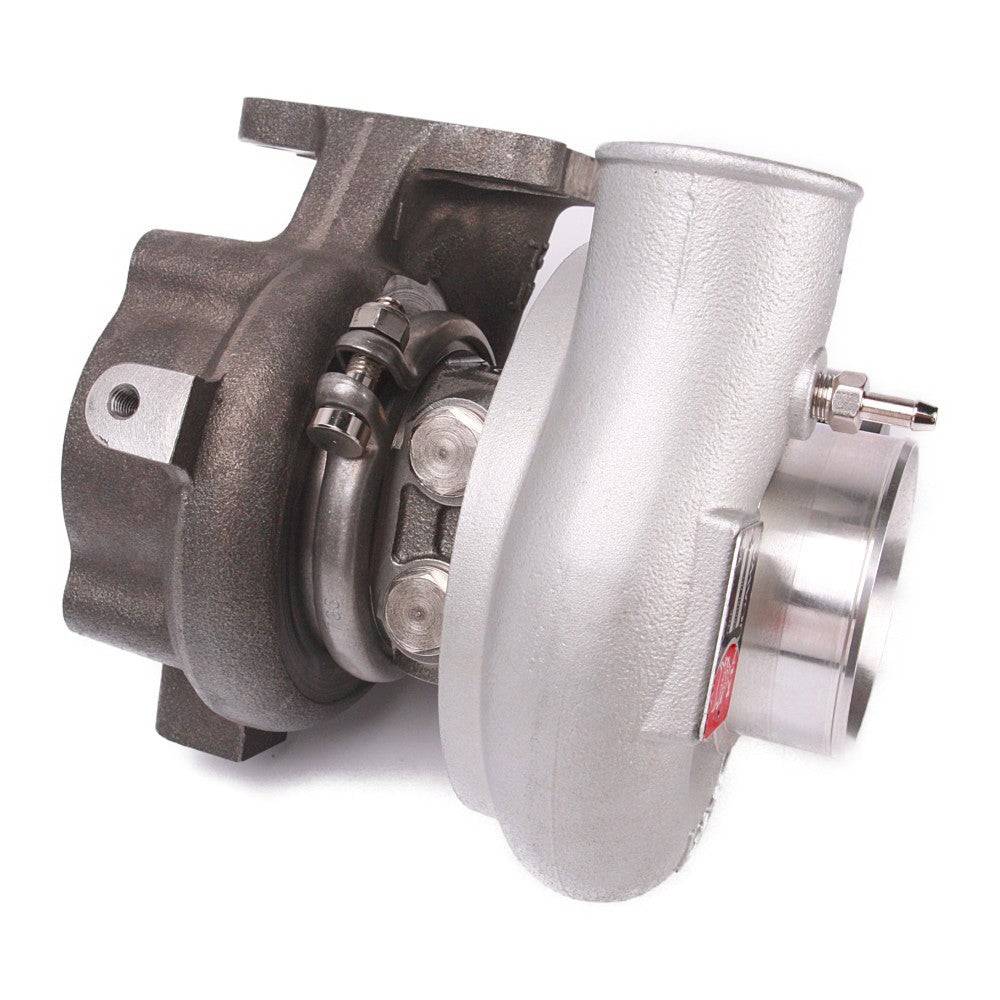

Kinugawa Toyota 1HD diesel turbocharger featuring a 3-inch anti-surge cover and a 7cm bolt-on turbine housing (compared to the stock CT26 housing, which is 8cm). This turbocharger utilizes the same base turbine housing (inlet and outlet type) as the factory turbocharged 1HD Land Cruiser engine, which means less labor is required for installation. The larger compressor wheel offers more horsepower and improved top-end speed.
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's performance results depend highly on your vehicle’s modifications and tuning/calibration.
Application
- 1991~1997 TOYOTA 1HD-T / 1HD-FT 4.2L Land Cruiser (HDJ80/81/82)
- Replace & Upgrade 17201-17010, 17201-17030
- Bolt Up to fit factory exhaust manifold and dump pipe
- The compressor cover inlet pipe / Air filter needs to modify to fit this 3” inlet. If your demand is for 17201-17040 of 1HD-FTE HDJ78 HDJ79 HDJ100 HDJ105, inquiring about different compressor housing or stays 3".
CHRA Size
- TD05H-20G
Wheels Spec

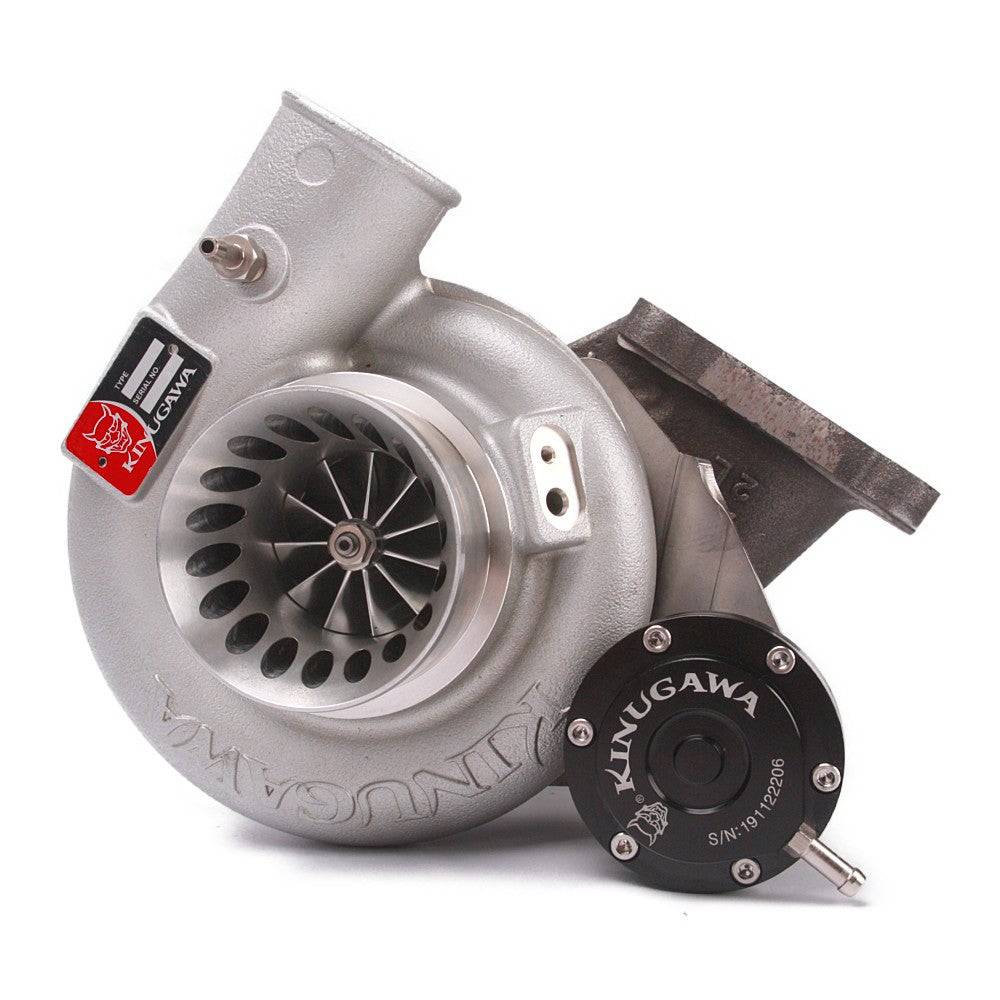

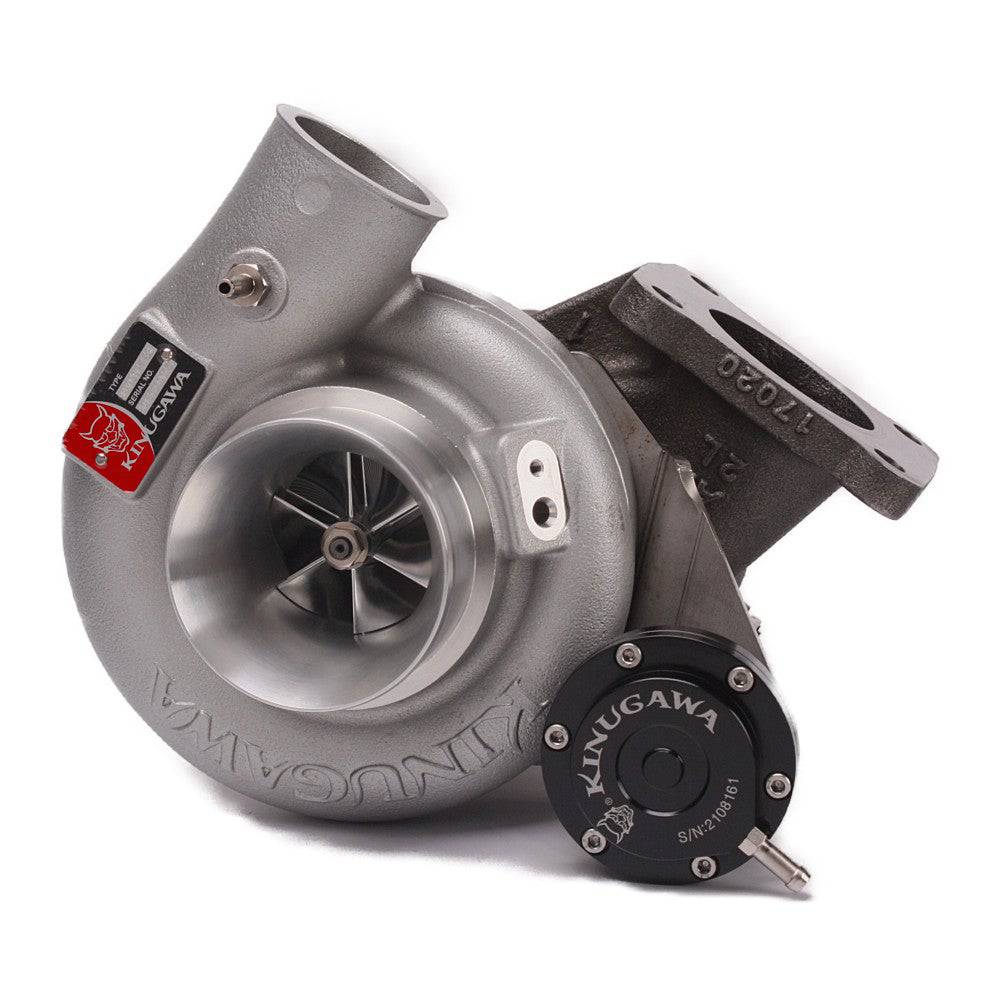

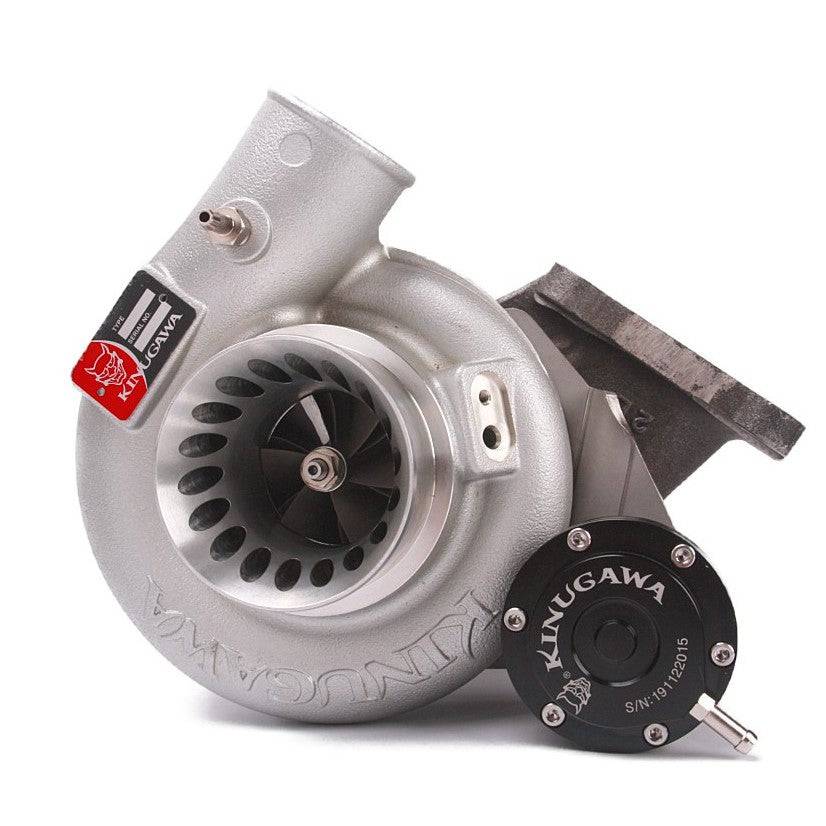

- Compressor wheel: 52.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)

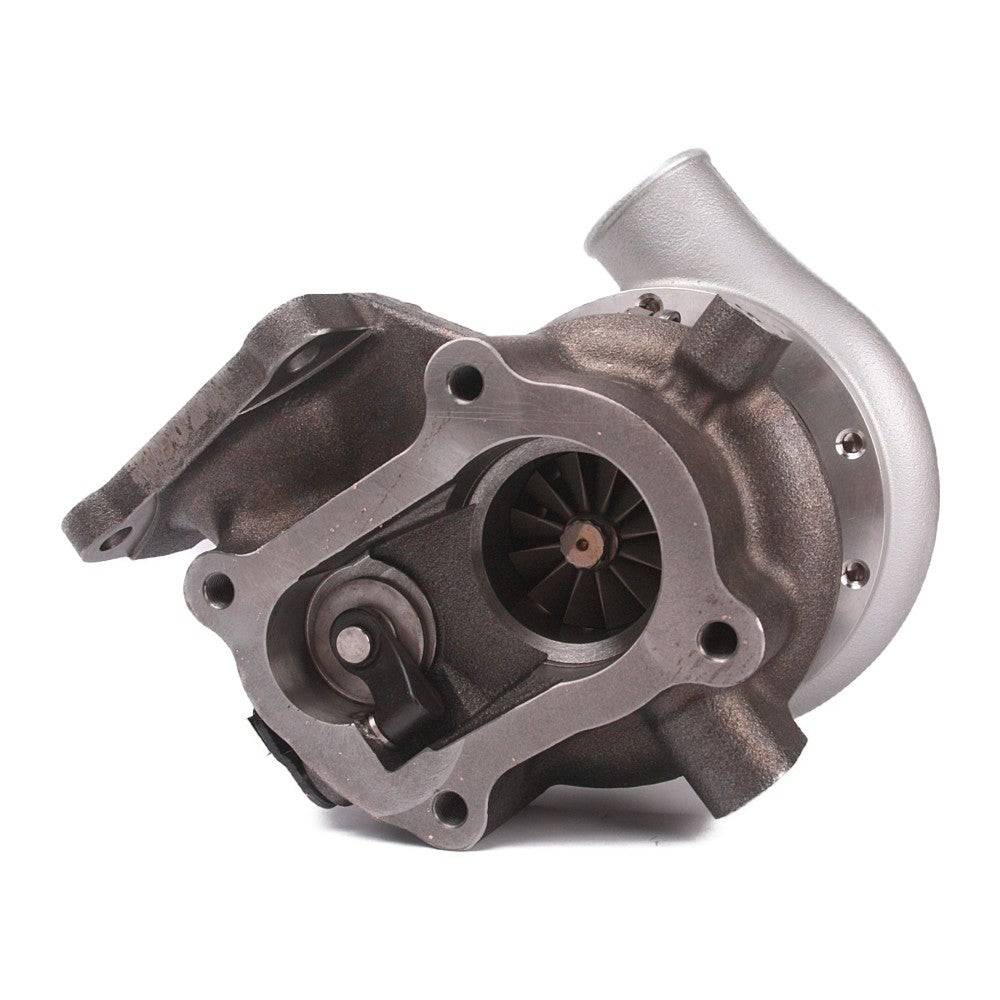

- Turbine wheel: 49 / 57 mm (3 types offered: STD, STS, STS 55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Inlet: 3"
Turbines Housing
- Nozzle area: 7cm / AR.49 (faster spool than the stock 8cm)

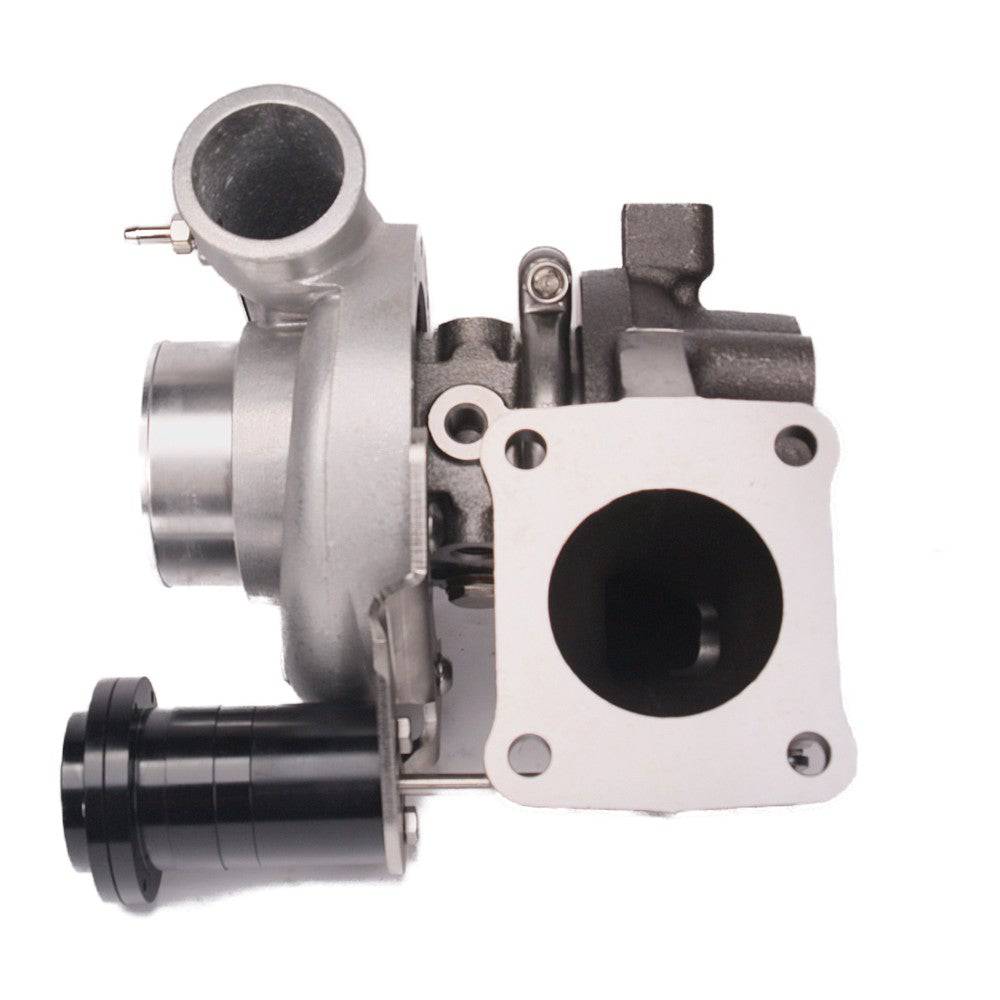

- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
Bearing Type
- Journal Bearing system with 360-degree performance thrust bearing
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

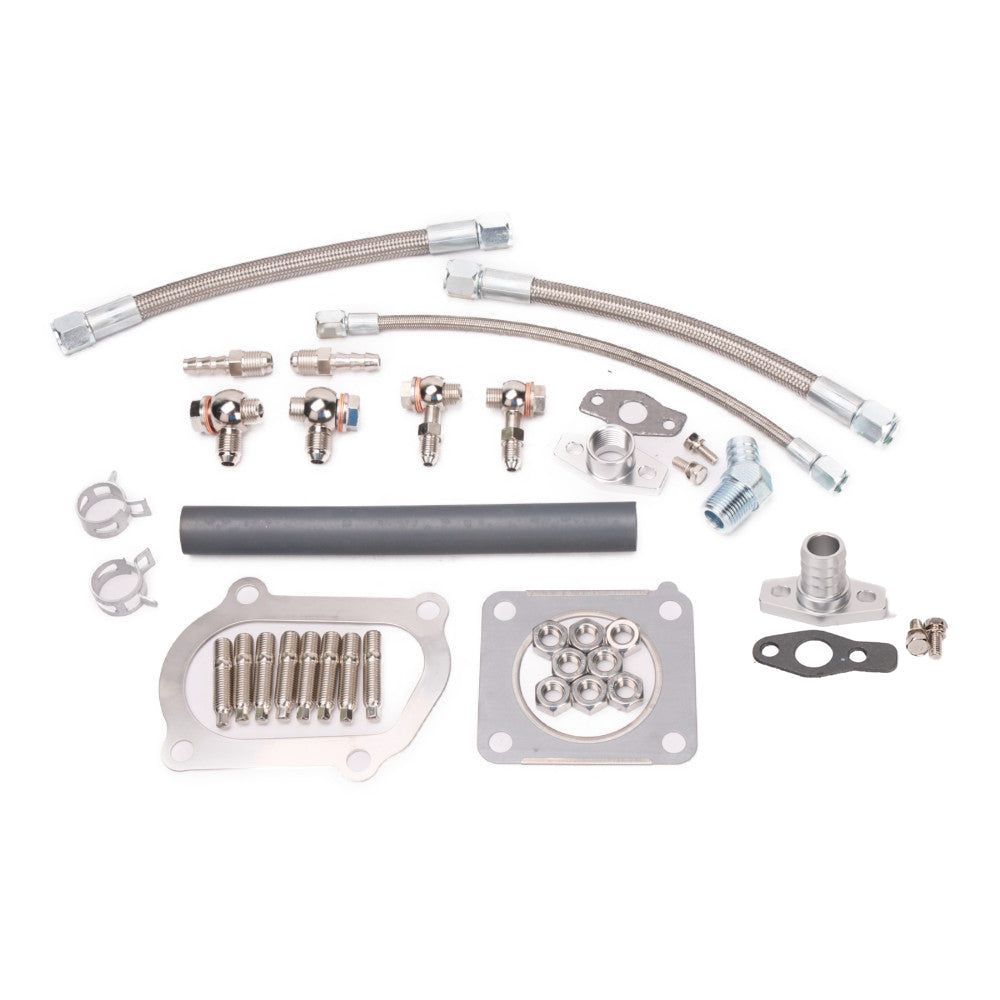

The Set Includes
- 1 x Oil supply set
- 1 x Water coolant and return set
- 1 x Gasket set
Install Kit Instruciton
- 1 x Turbocharger
Install Kit Instruciton
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
