By KINUGAWA
Kinugawa Turbo 3" TD05H-16G 7cm for Toyota Celica ST165 MR2 3S-GTE GT-Four GT-4
$899.00 - $1,079.00
Shipping calculated at checkout.
Regular price
$899.00
Regular price
$899.00
Sale price
$899.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 2 left
SKU:
301-02052-123
Tags:
- 17201-17010,
- 17201-17030,
- 1HD-FT,
- 1HD-T,
- CT26,
- HDJ80,
- HDJ81,
- HDJ82,
- Land Crusier
Collections:
Regular price
$899.00
Regular price
$899.00
Sale price
$899.00
Description

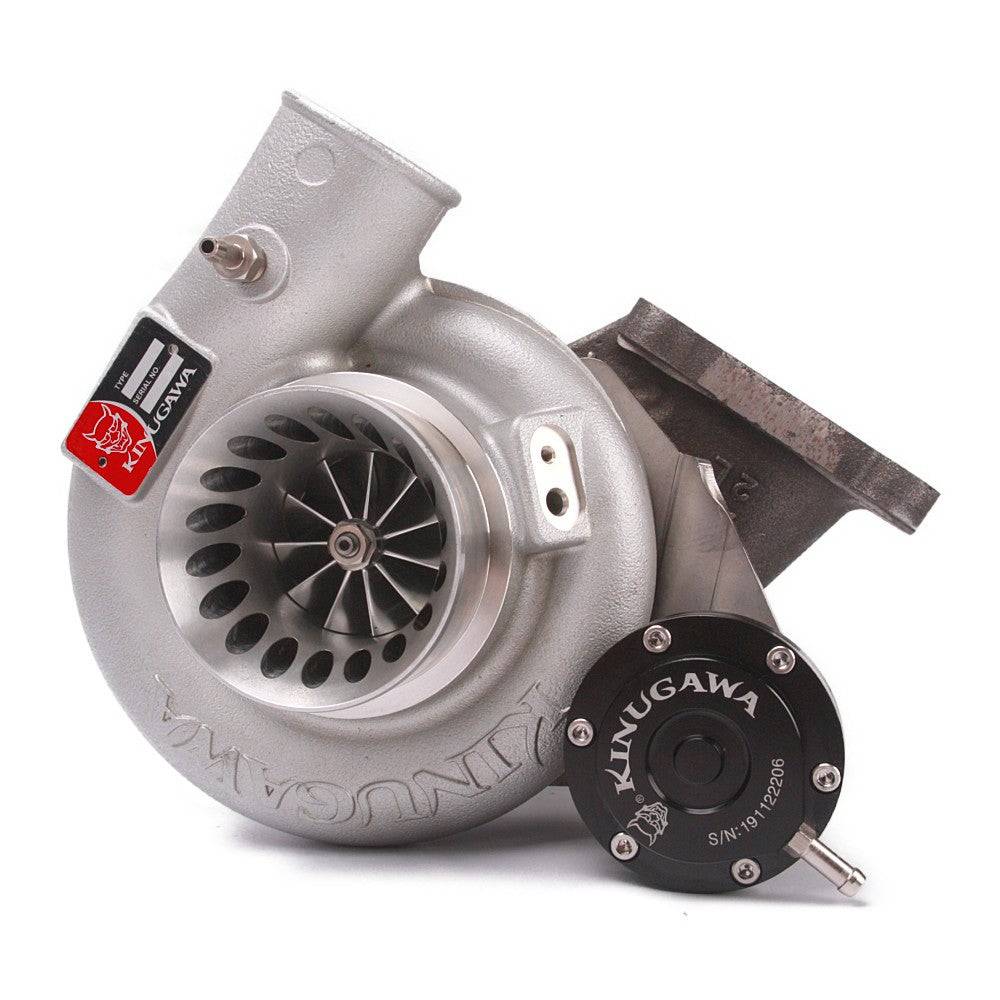

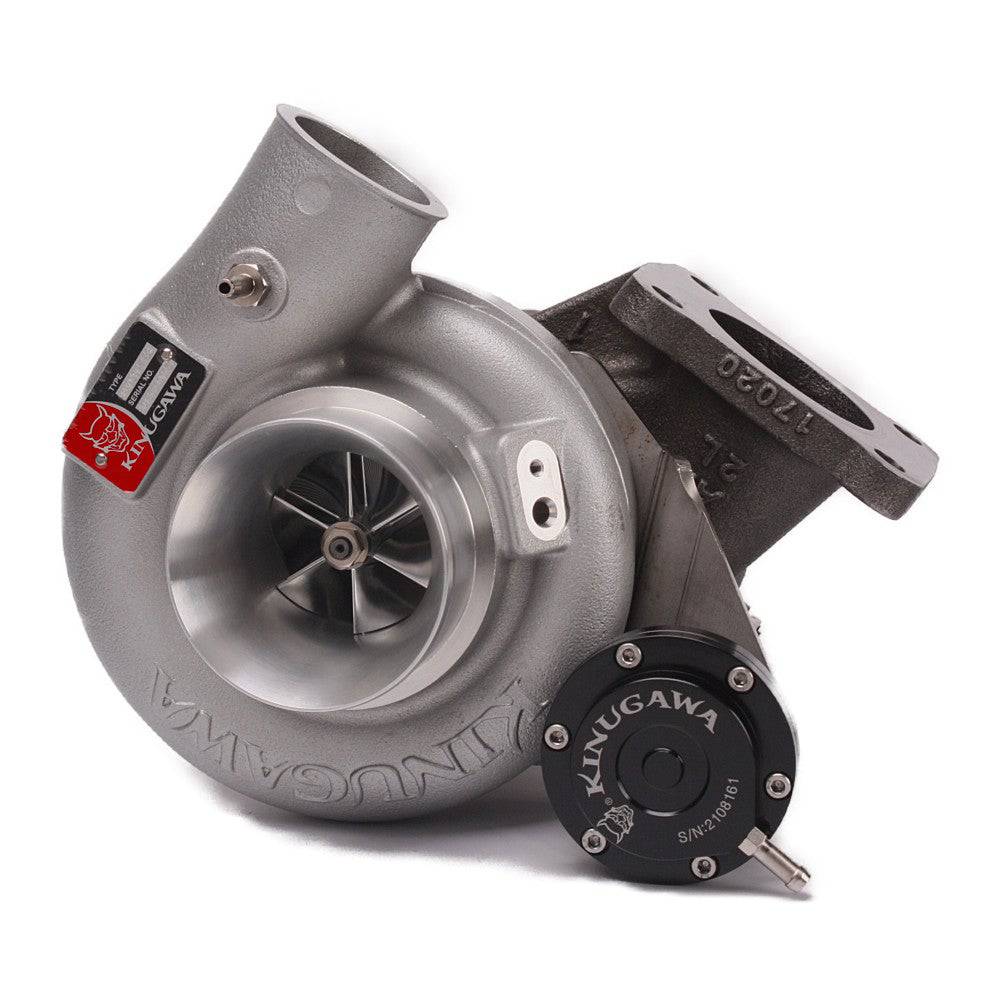

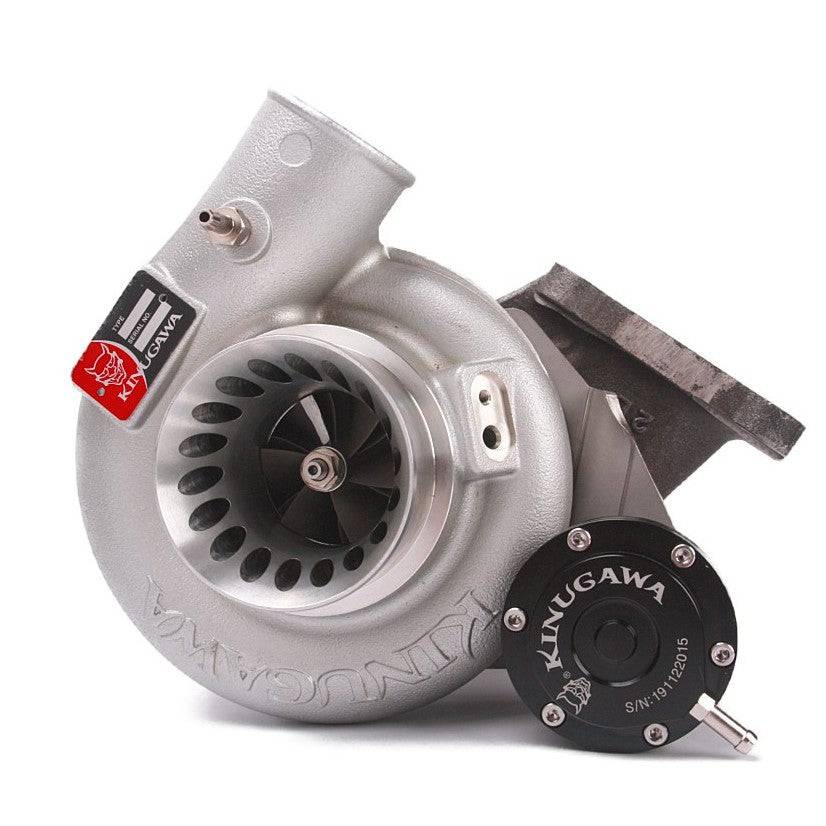

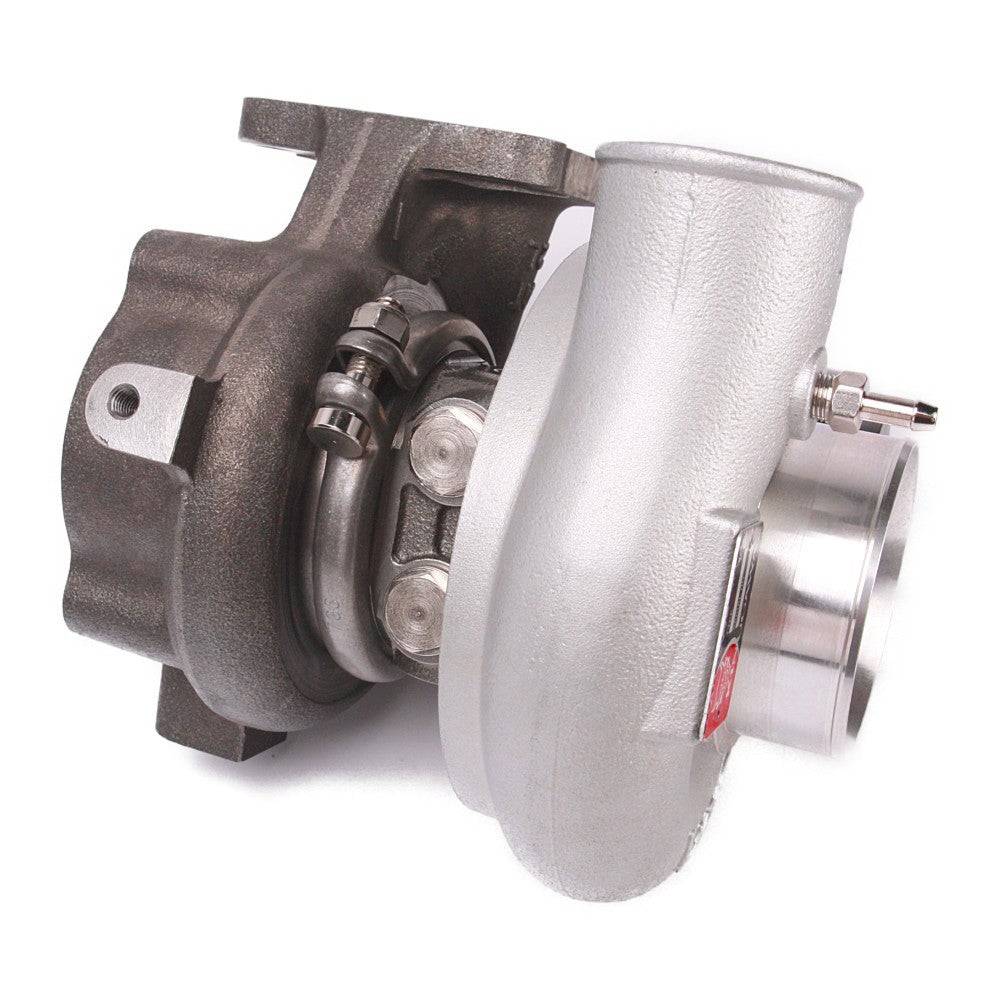

- Kinugawa td05h-16g spec turbocharger with 3" cover and 7cm bolt-on turbine housing provides ultimate spool time than the stock ct26 (8cm). The one is equipped with CT26-based turbine housing (inlet and outlet type), the same as the factory turbocharged 3S-GTE engine. You will get less labor work. There is more top-end speed with the giant compressor wheel.
Application
- 1986~1989 TOYOTA 3S-GTE ST165 Celica GT-Four GT-4
- - Part Number: 17201-74010
- OEM Number: 17201-74010 CT26C1
- Turbo For Toyota Celica GT Four (ST165) 3S-GTE 2000 ccm 136 Kw - 185 PS 1987 -1989 - Bolt Up to fit factory exhaust manifold and dump pipe
- The compressor cover inlet pipe / Air filter must be modified to fit this 3” inlet.
CHRA Size
- TD05H-16G
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 49 / 57 mm (3 types offered: STD, STS, STS 55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"
- Inlet: 3"
- Outlet: 2"

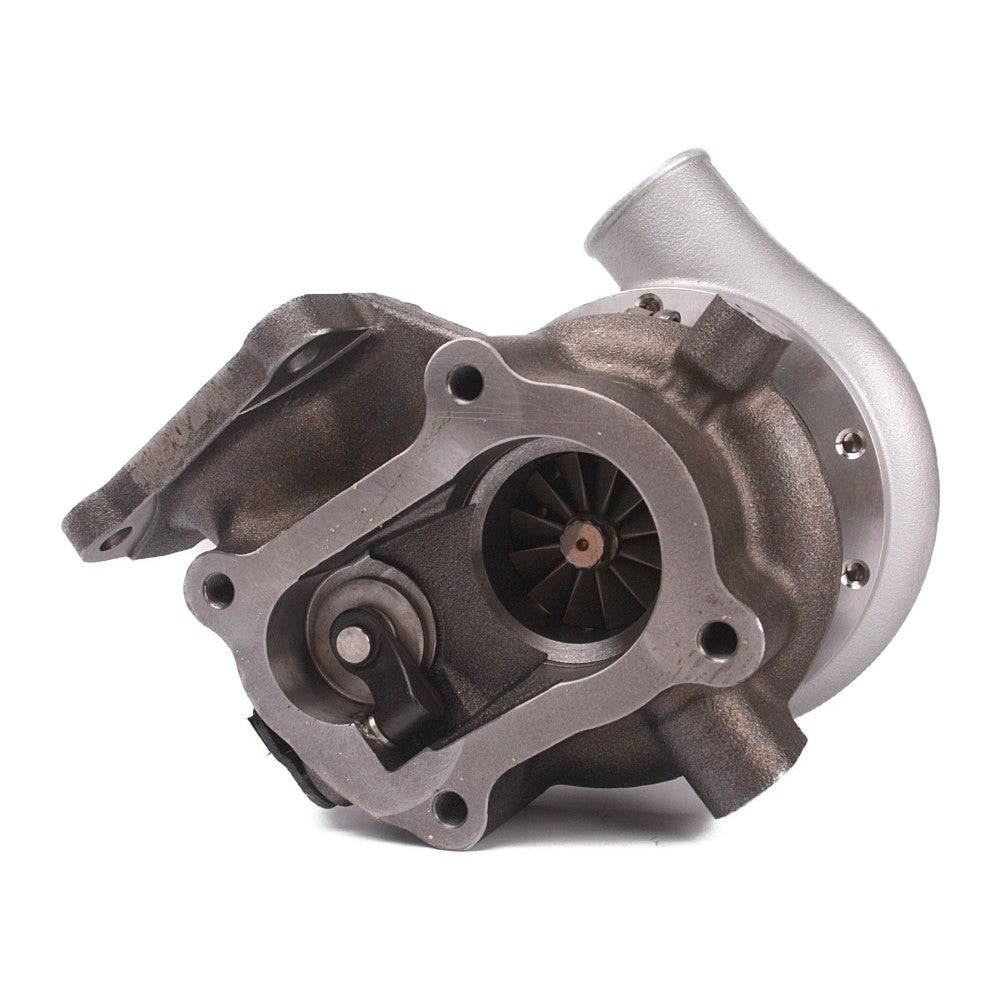

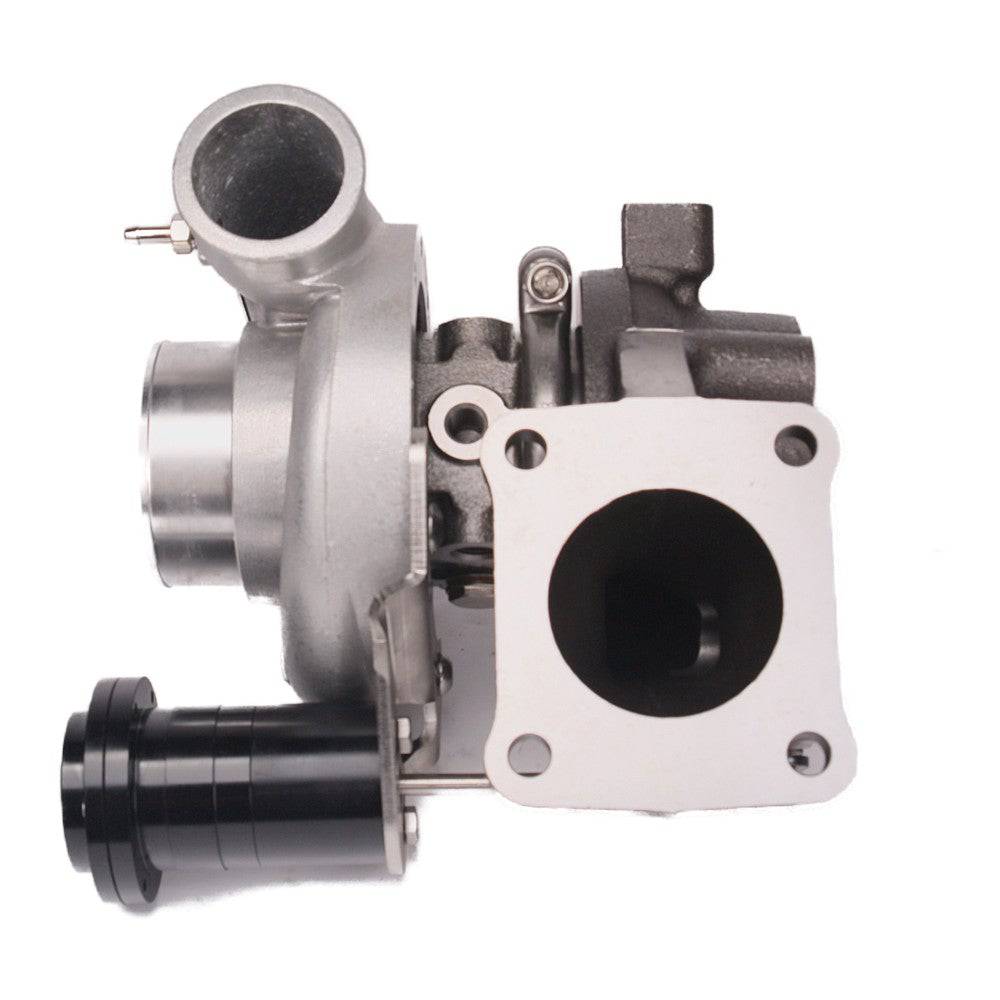

Turbines Housing
- Nozzle area: 7cm / AR.49 (faster spool than the stock 8cm)
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
- Inlet: Toyota CT26 4-bolt
- Outlet: Toyota CT26 4-bolt
- Wastegate: internal gated
Bearing Type
- Journal Bearing system with 360-degree performance thrust bearing
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

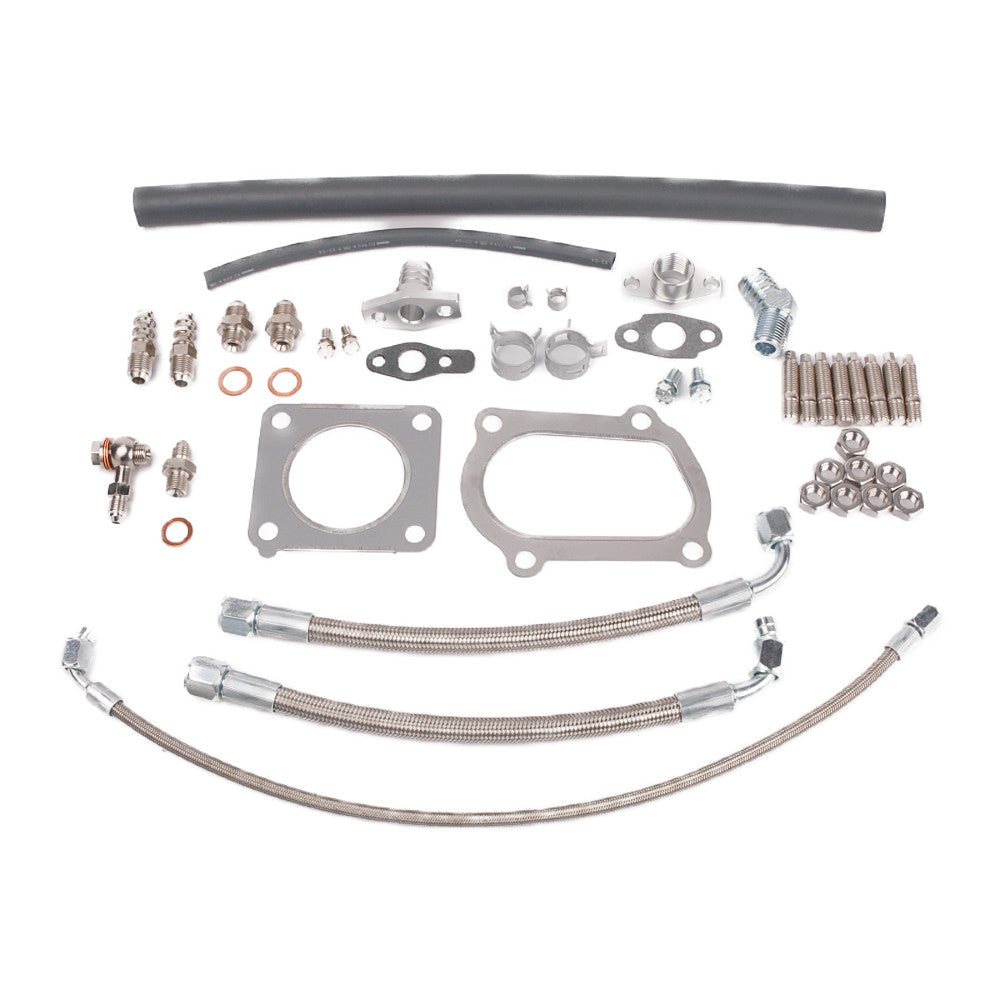

The Set Includes
- 1 x Oil supply set
- 1 x water coolant and return set
- 1 x Turbine gaskets
- 1 x Turbocharger
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
