By KINUGAWA
Kinugawa Turbo 3" TD05H-16G 6cm T3 DTS 3-Bolt 3" V-Band for Toyota Land Cruiser 1HD
$989.00 - $1,189.00
Shipping calculated at checkout.
Regular price
$989.00
Regular price
Sale price
$989.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 4 left
SKU:
331-1HD12-010
Collections:
Regular price
$989.00
Regular price
Sale price
$989.00
Description

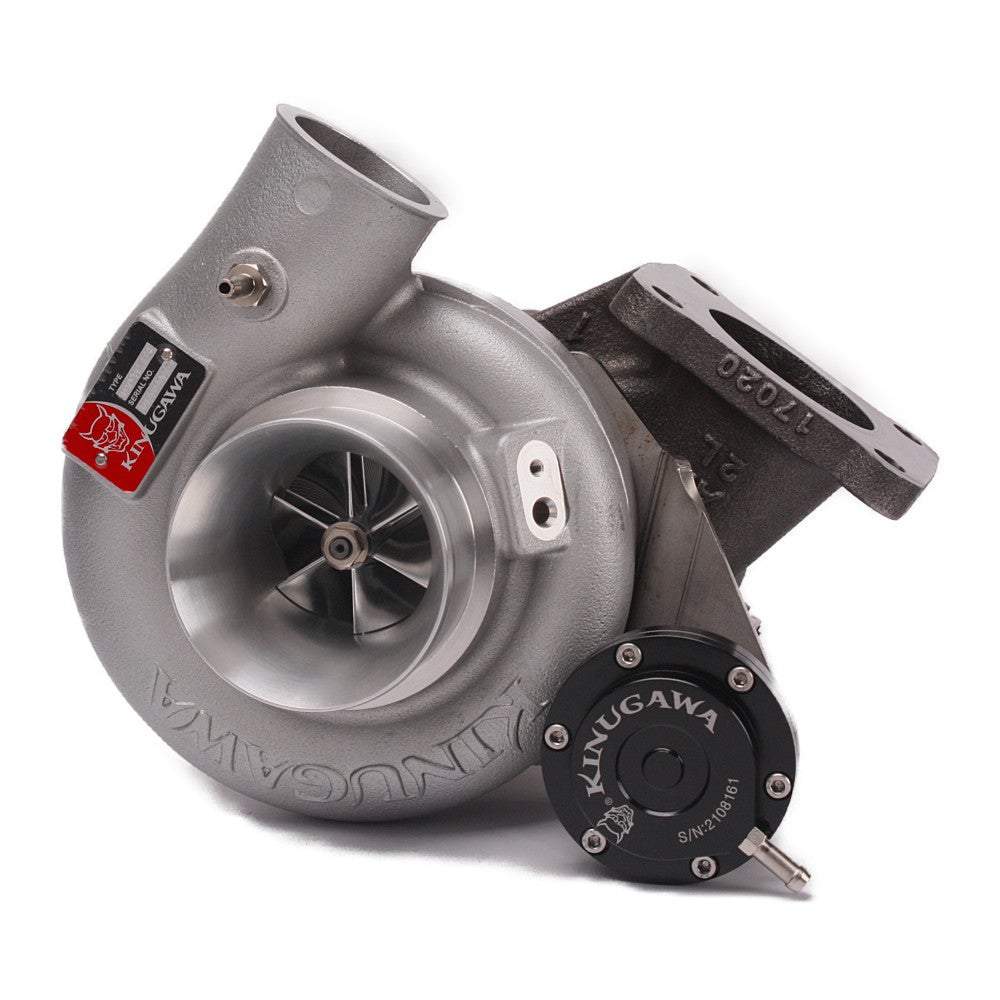

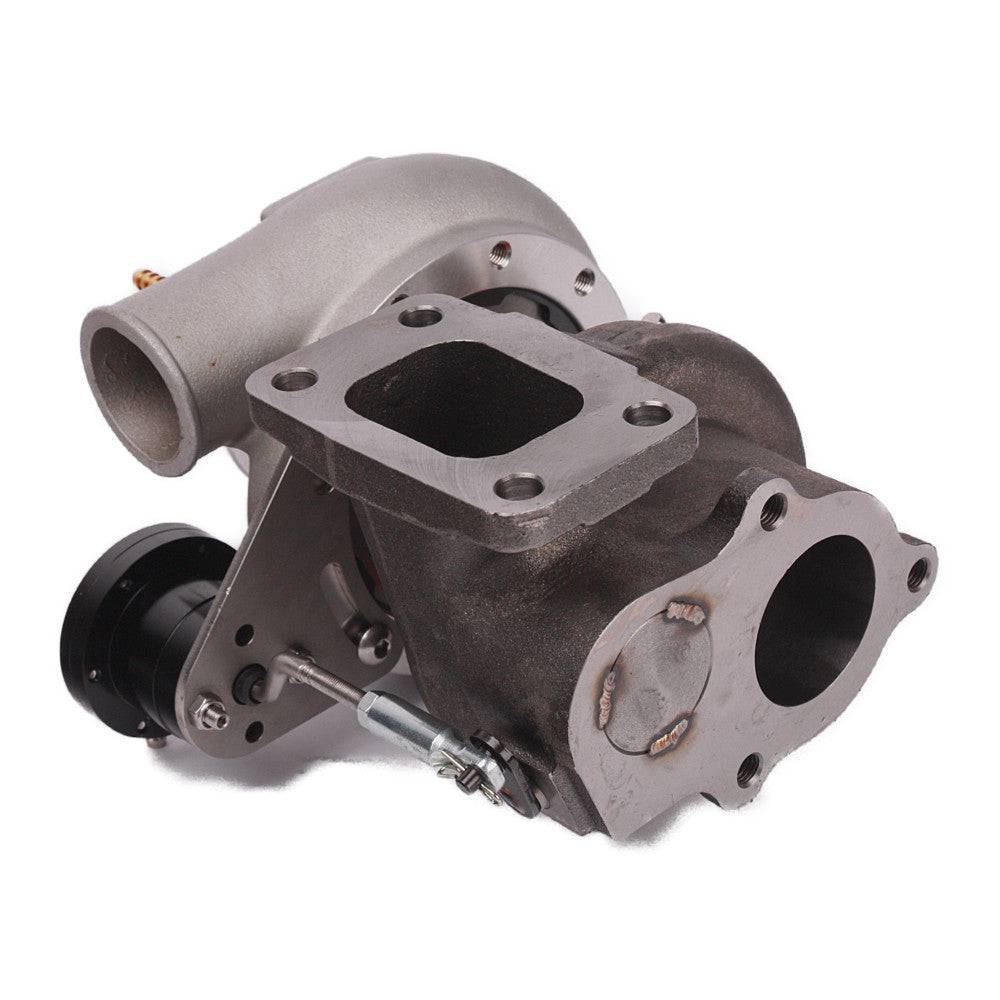

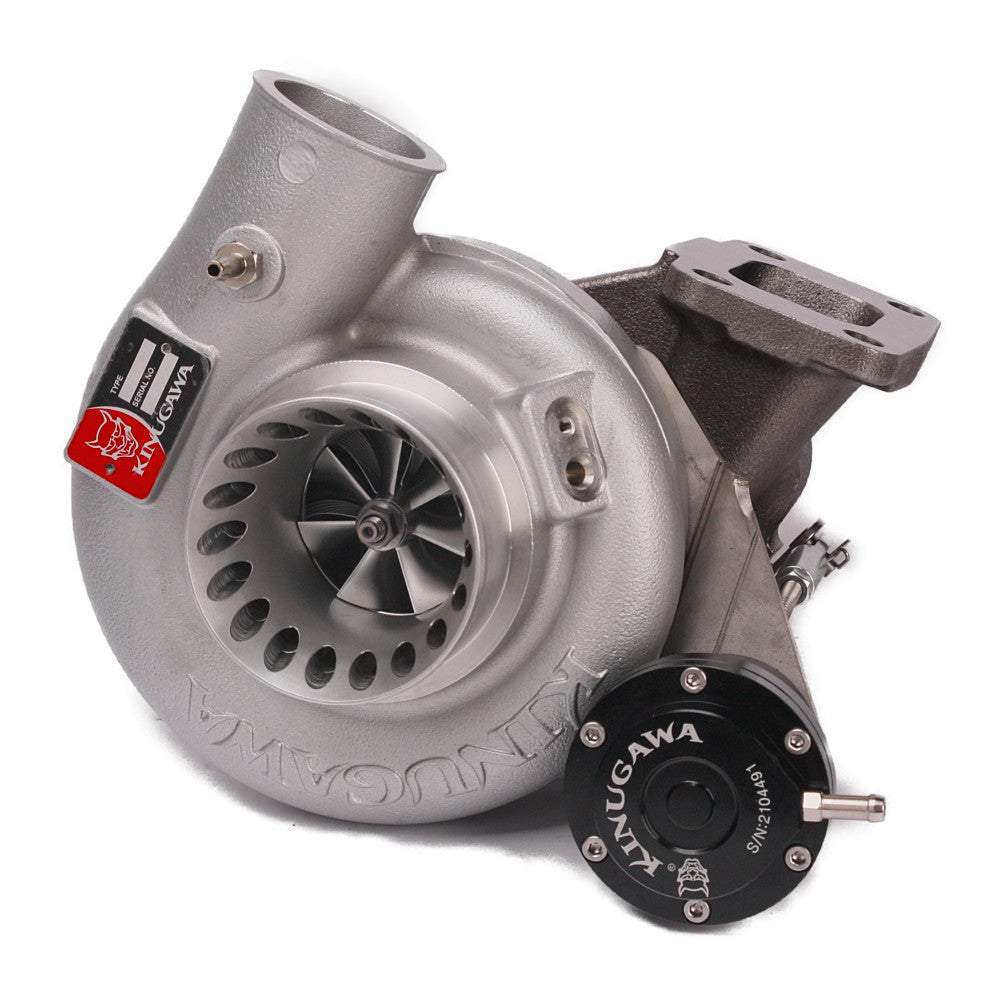

Kinugawa Toyota 1HD diesel td05h-16g spec turbocharger with 3" cover and 6cm T3 3" V-Band turbine housing provides an ultimate shorter spool time than the stock (8cm). It comes with the manifold convert kit, allowing you to easily convert from CT26-type turbine housing inlet to T3 flange.
Kinugawa Toyota 1HD diesel td05h-16g spec turbocharger with 3" cover and 6cm T3 3" V-Band turbine housing provides an ultimate shorter spool time than the stock (8cm). It comes with the manifold convert kit, allowing you to easily convert from CT26-type turbine housing inlet to T3 flange.
Application
- 1991~1997 TOYOTA 1HD-T / 1HD-FT 4.2L Land Cruiser (HDJ80/81/82)
- TOYOTA Landcruiser 4.2LD HDJ100, HDJ78, HDJ79 1HD-FTE CT12B CT20B CT26
- Replace & Upgrade 17201-17010, 17201-17030
- The compressor cover inlet pipe / Air filter must be modified to fit this 3” inlet.
Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. This product's performance results are highly dependent upon your vehicle’s modifications and tuning/calibration.
Wheels Spec
Wheels Spec
- Compressor wheel: 48.3 / 68.0 mm (The 6+6 blades are better for low-end torque and the 11+0 type is for top-end speed)
- Turbine wheel: 56 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Inlet: 3"

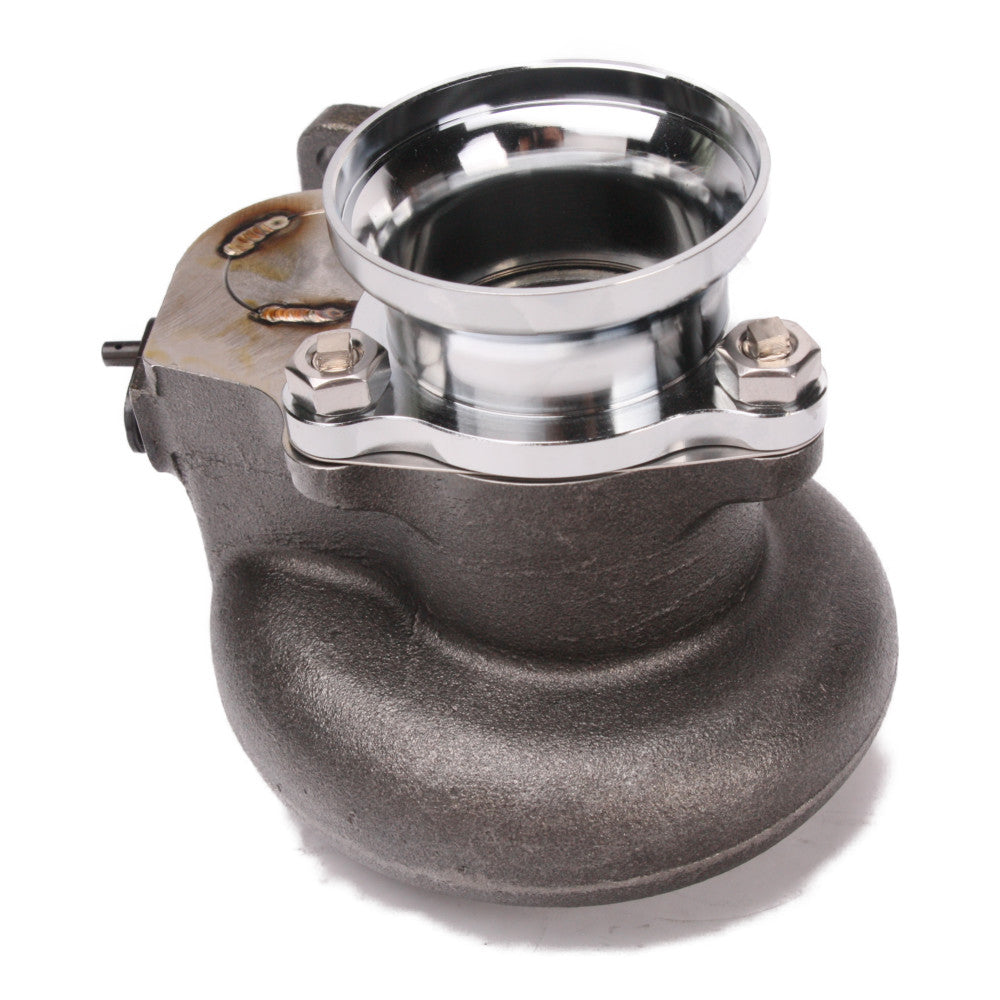

Turbines Housing
- Nozzle area: 6cm / AR.41
- Inlet: T3
- Outlet: DTS 3-bolt type to 3" V-band
- Wastegate: internal gated
- Inlet: T3
- Outlet: DTS 3-bolt type to 3" V-band
- Wastegate: internal gated
Bearing Type
- Journal bearing system with 360-degree performance thrust bearing kit
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Boost Level
- The peak pressure setup is limited: 2.8bar
- Suggested pressure setup: 1.5bar

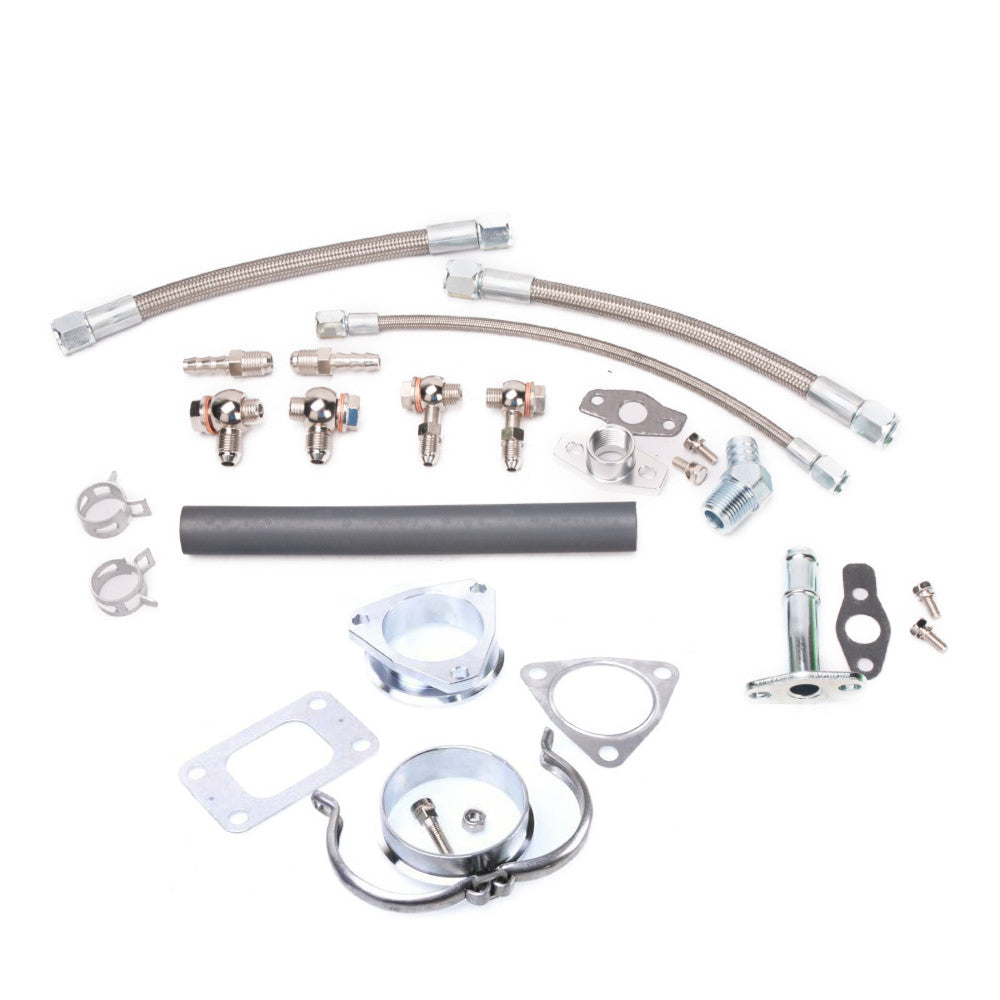

The Set Includes
- 1 x Oil supply set
- 1 x Water coolant and return set
- 1 x T3 gasket

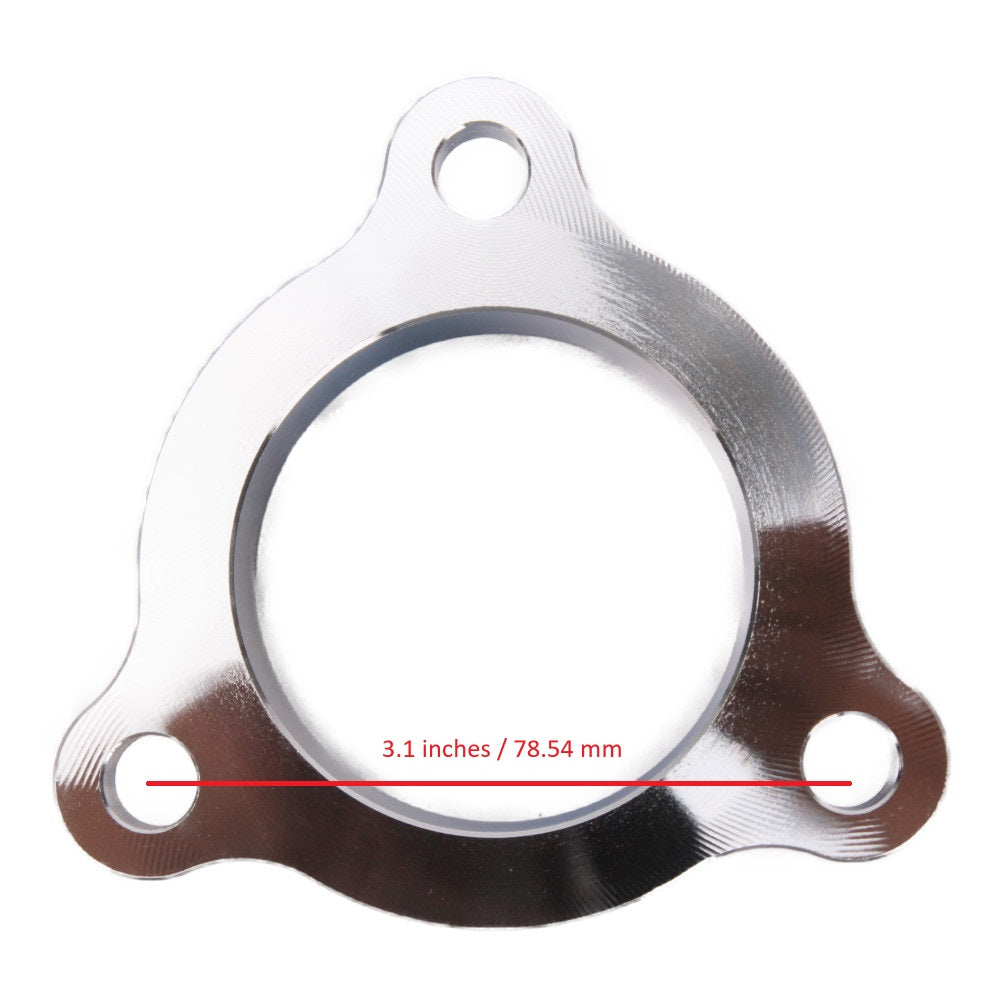

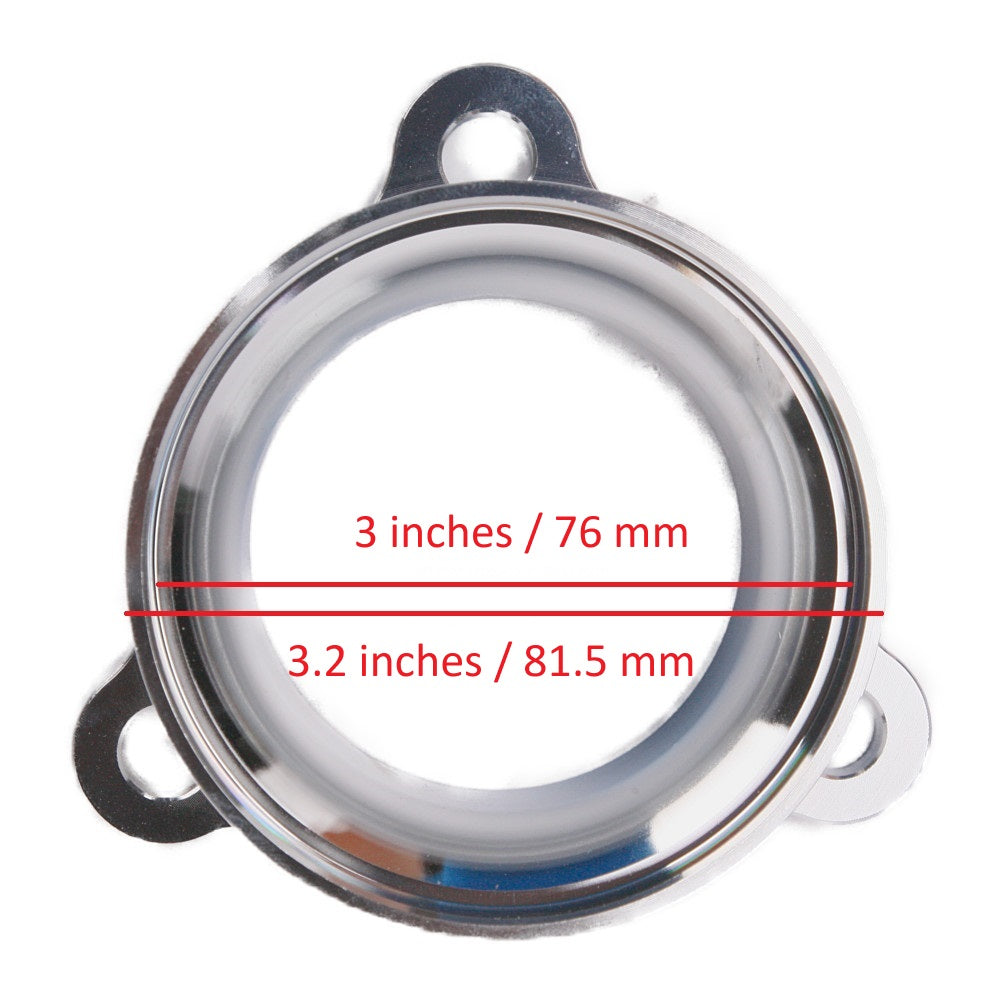

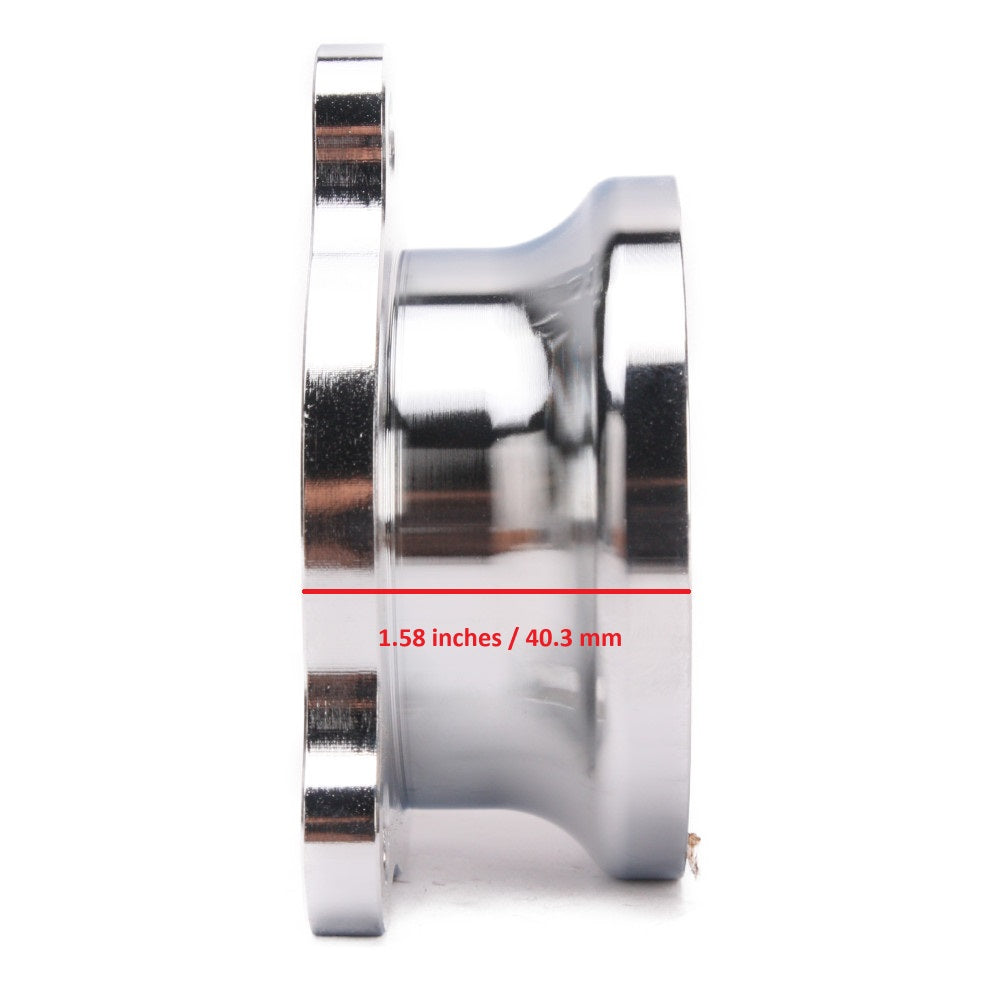

- 1 x V-Clamp and V-Band Socket Adapter Kit
- 1 x Manifold convert kit for CT26 to T3 flange.
- 1 x Turbocharger
Install kit instruction
Situation
- Brand New
- Full balance from Schenk MBRS 950110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
