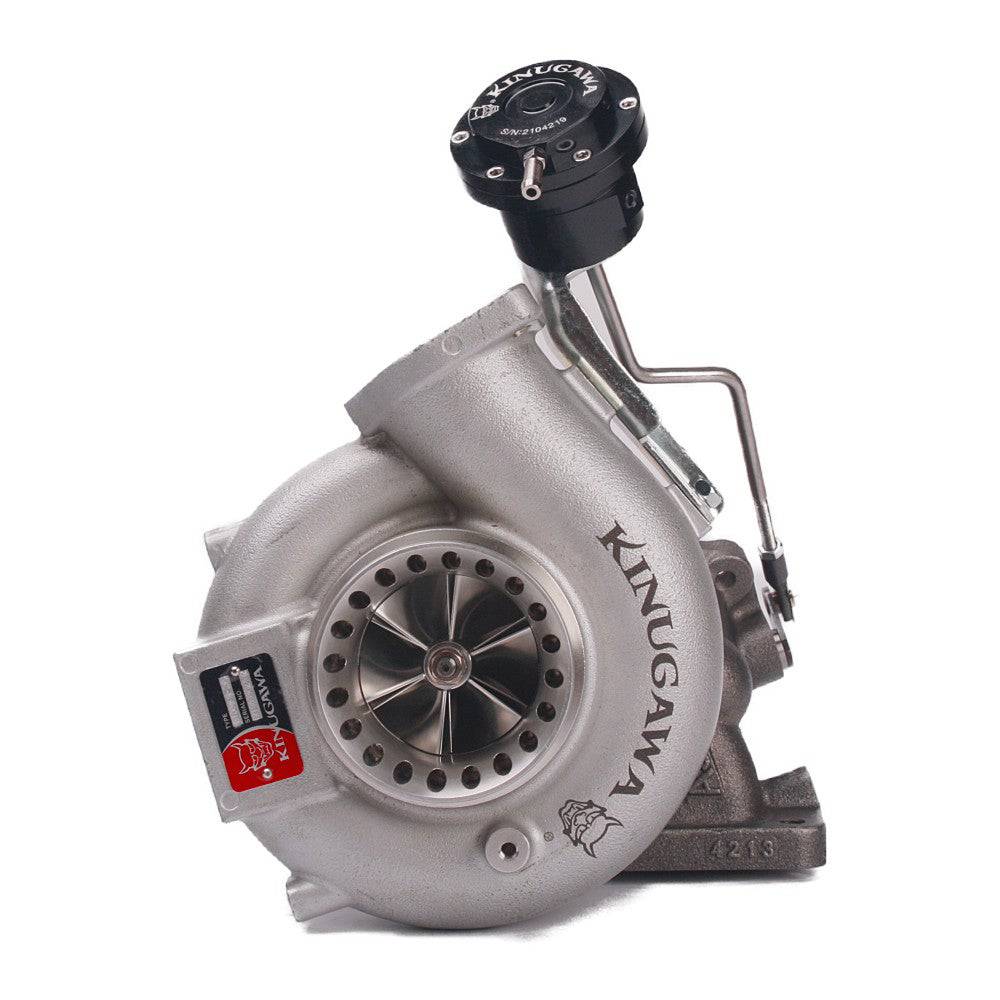

Kinugawa Turbo 3" Anti-Surge TD06HR-25G 10.5cm for Mitsubishi 4G63T Lancer EVO 4-9 IX RS SE MR
$1,149.00 - $1,349.00
Shipping calculated at checkout.
Regular price
$1,149.00
Regular price
Sale price
$1,149.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 4 left
SKU:
301-02034-168w/ZAGE CH
Tags:
Collections:
Regular price
$1,149.00
Regular price
Sale price
$1,149.00
Application
- 1996-2006 Evolution IV V VI VII VIII IX
- Bolt-On Replacement Turbo for Evo IX
- EVO 4/5/6/7/8 We offer a free EVO 9 compressor outlet pipe, oil, and coolant lines.
- Bolt-On Replacement Turbo for Evo IX
- EVO 4/5/6/7/8 We offer a free EVO 9 compressor outlet pipe, oil, and coolant lines.

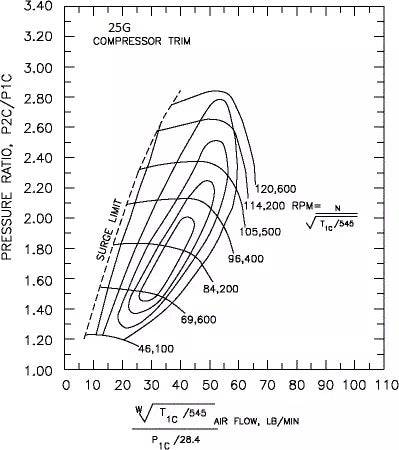

The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD06HR-25G
Wheels Spec
- Compressor wheel: 60.5 / 78 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 58.8 / 67 mm
(3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
Compressor Housing
- Inlet: 3" anti-surge

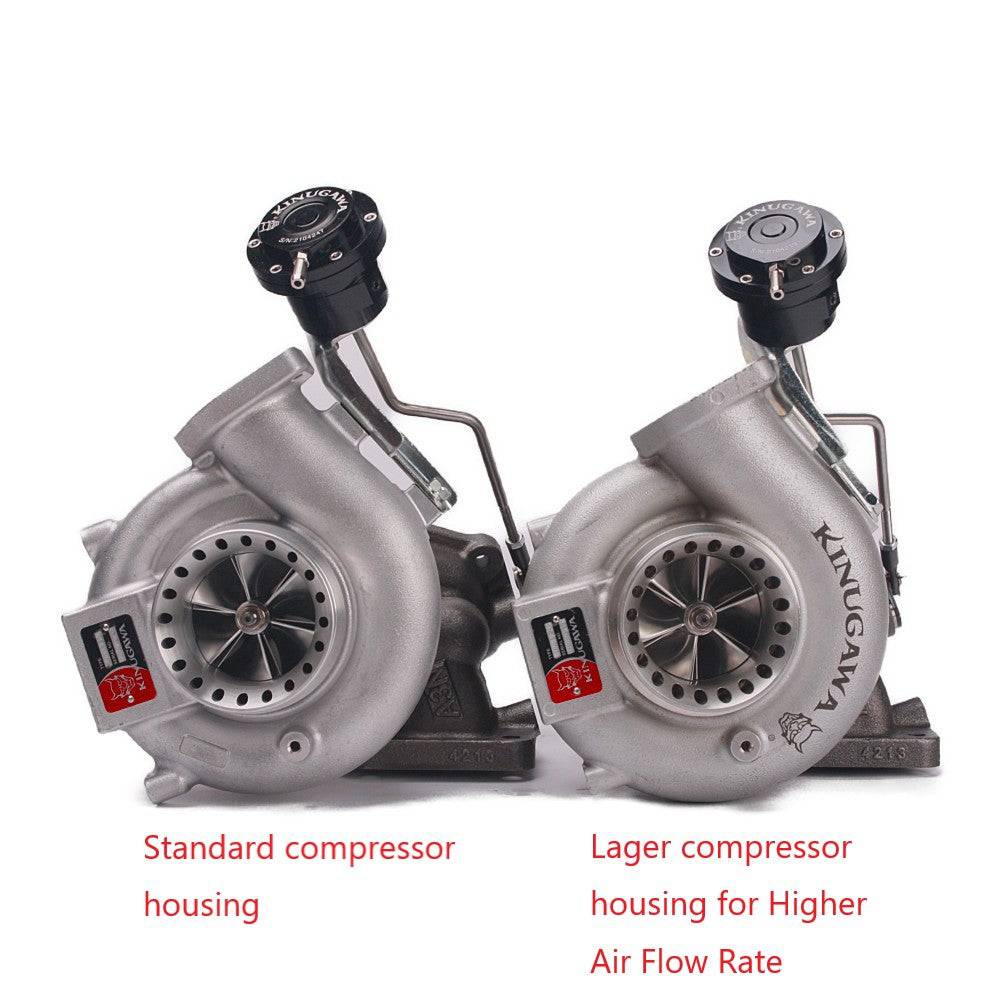

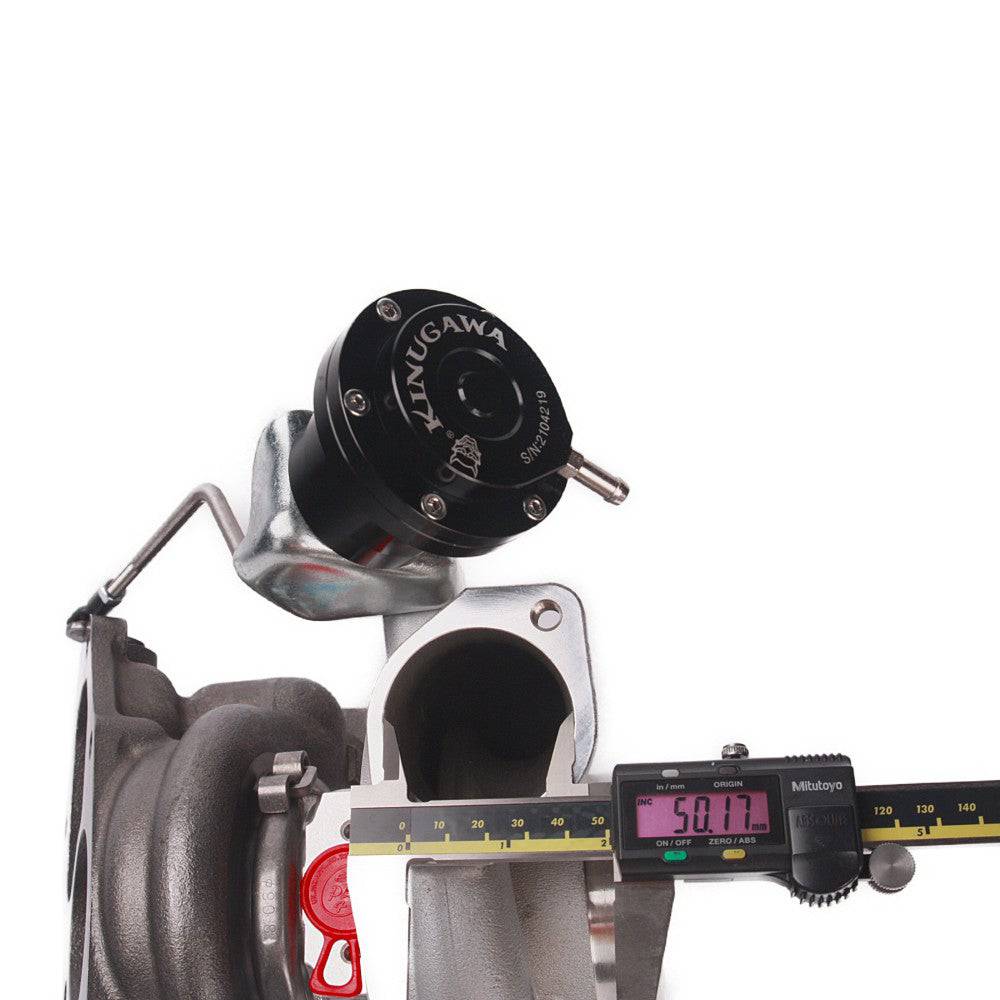

- Outlet: stock 2-bolt flange / larger type 5cm diameter

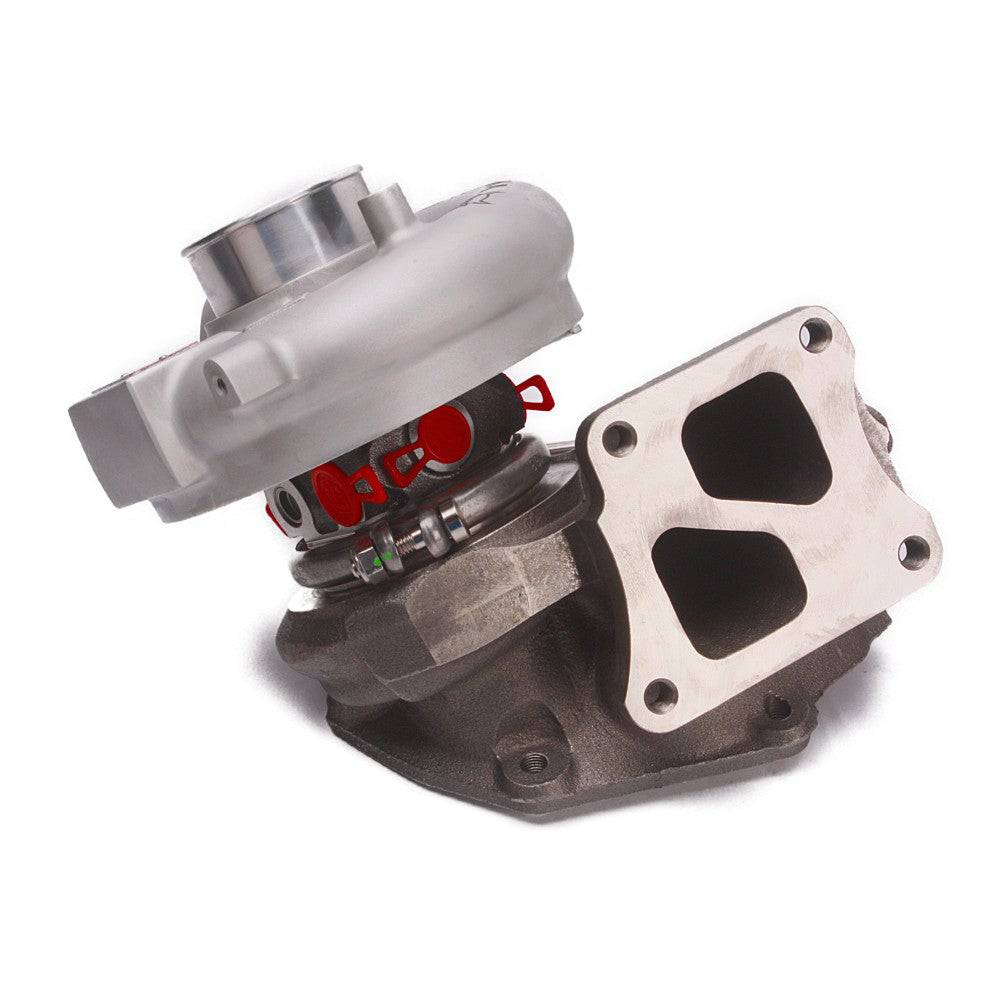

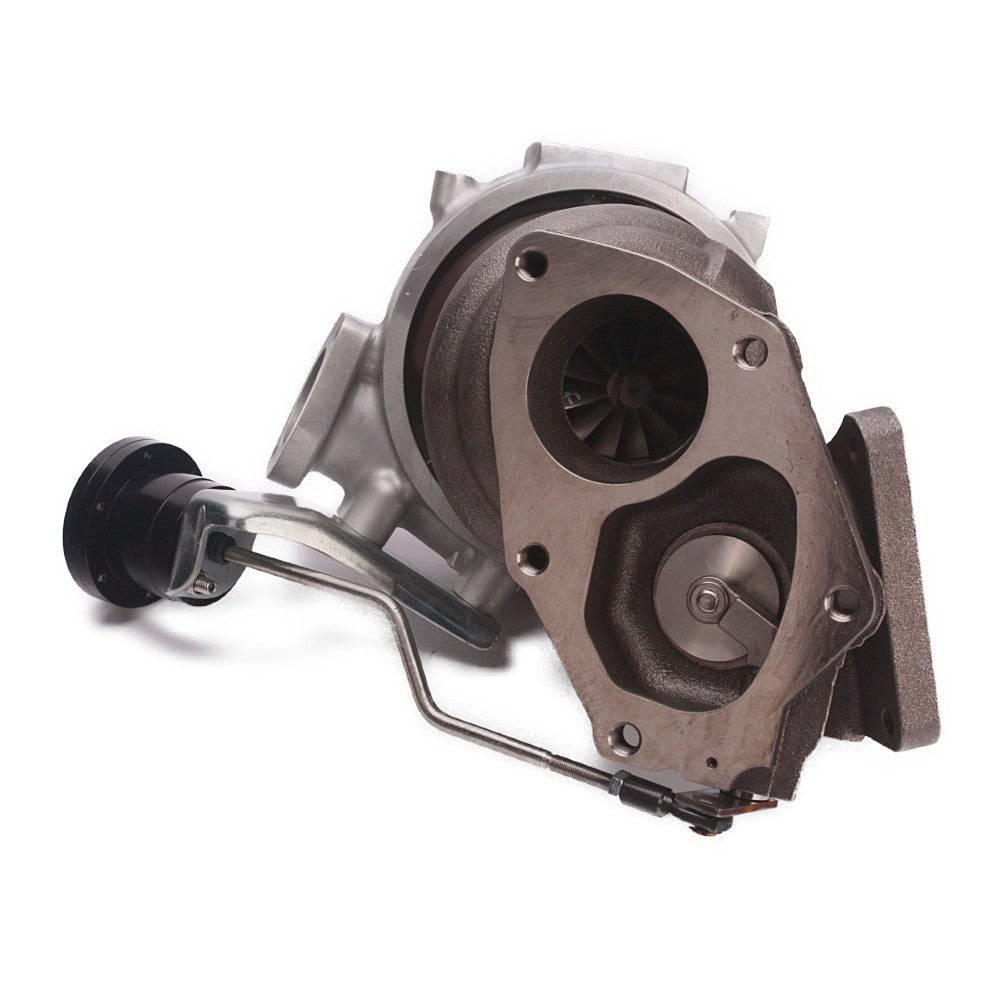

Turbine Housing
- Nozzle area: 10.5cm single puck
- Inlet: Mitsubishi twin scroll
- Outlet: Mitsubishi 5-bolt
- Wastegate: internal gated
- Inlet: 3" anti-surge
- Outlet: stock 2-bolt flange / larger type 5cm diameter
Turbine Housing
- Nozzle area: 10.5cm single puck
- Inlet: Mitsubishi twin scroll
- Outlet: Mitsubishi 5-bolt
- Wastegate: internal gated
Bearing Type
- Journal Bearing with 360 performance thrust bearing
Cooling systems
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

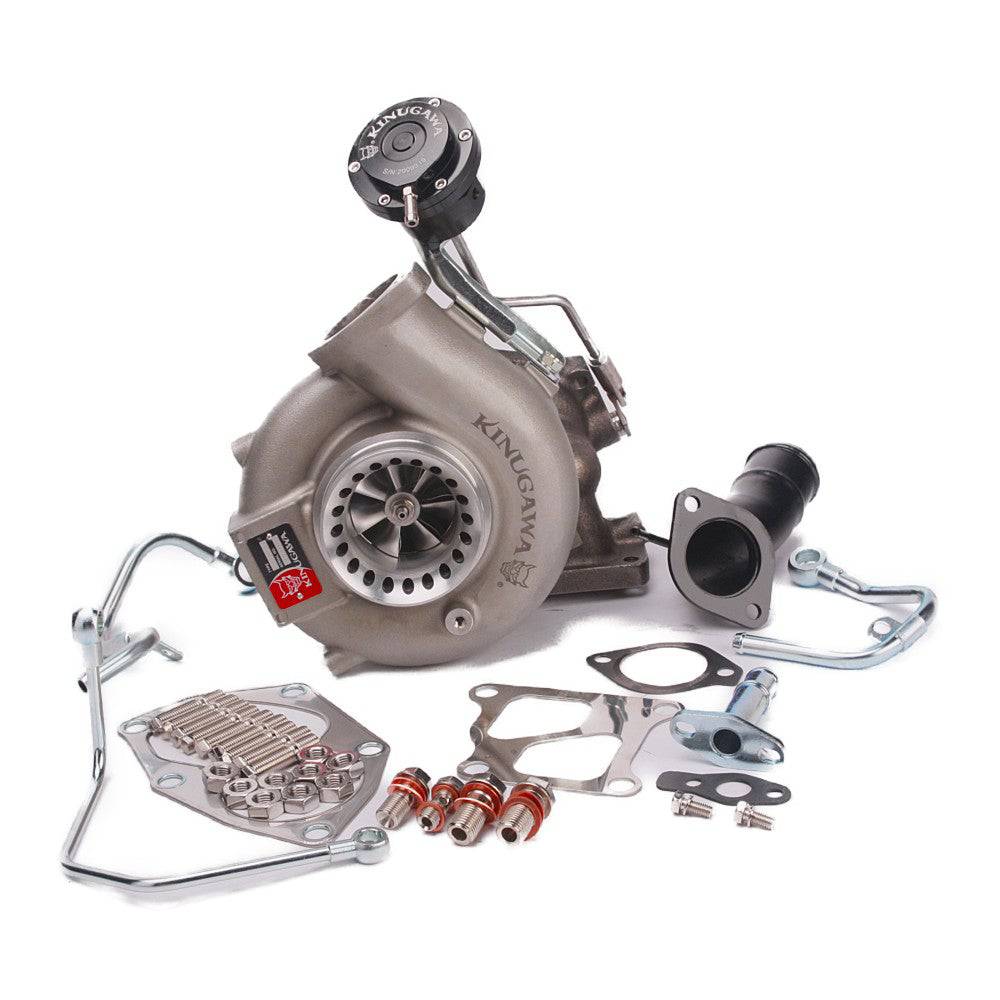

The set includes
- 1 x EVO 4-9 Install kit
- 1 x Turbocharger
Situation
- Brand New
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
