By KINUGAWA

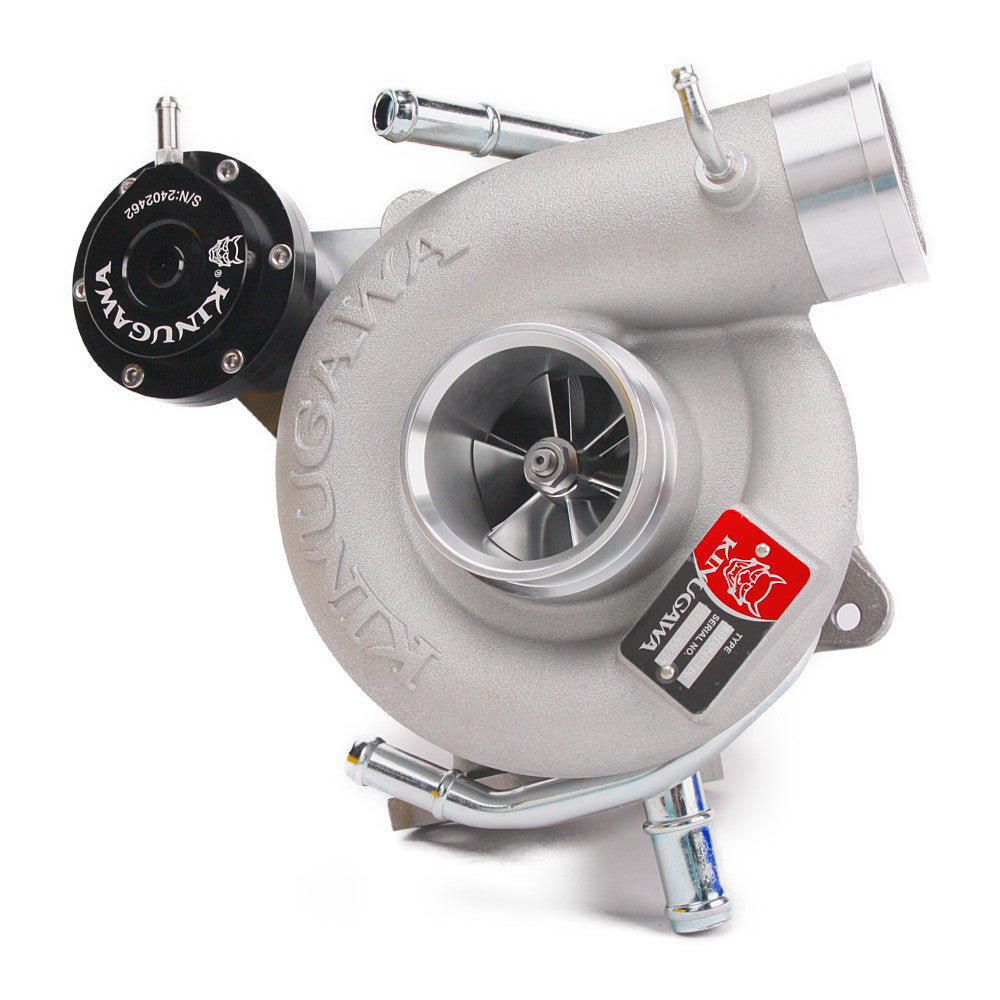

Kinugawa Turbo 2.25" TD05H-18G for Subaru Impreza WRX STI Forester XT 98-08
$989.00 - $1,189.00
Shipping calculated at checkout.
Regular price
$989.00
Regular price
Sale price
$989.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 4 left
SKU:
301-02049-024
Tags:
Collections:
Regular price
$989.00
Regular price
Sale price
$989.00
Description
- Is the factory turbocharger feeling a little tired? Or if you are ready to make a little more power without going way over the top, then you will be pleased with the Kinugawa TD05H-18G Turbocharger. This is a great upgrade for those of you looking to make more power while maintaining a great low-range to mid-range response.
Application
- For 1998~99 Subaru EJ20 EJ25 IMPREZA WRX / WRX STi GC8
- For 2002~07 Subaru EJ20 EJ25 IMPREZA WRX / WRX STi GDA / GDB
- For SUBARU 1999 ~ 2008 Forester XT 58T SG9 EJ205 EJ255
- It can replace TD04L WRX directly without modification (bolt-on turbo)

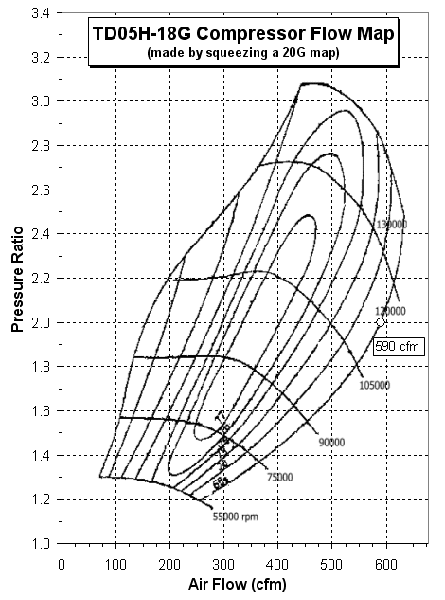

- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
- Note: The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-18G
Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (6+6 blades for low-end torque and 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.)
- Turbine wheel: 56.0 / 49.2 mm (3 types available: STD, STS, STS55. Click here to learn more about STS technology.)
Compressor Housing
- Nozzle area: AR.57
- Inlet: 2.25"
- Outlet: 2"
- Inlet: 2.25"
- Outlet: 2"

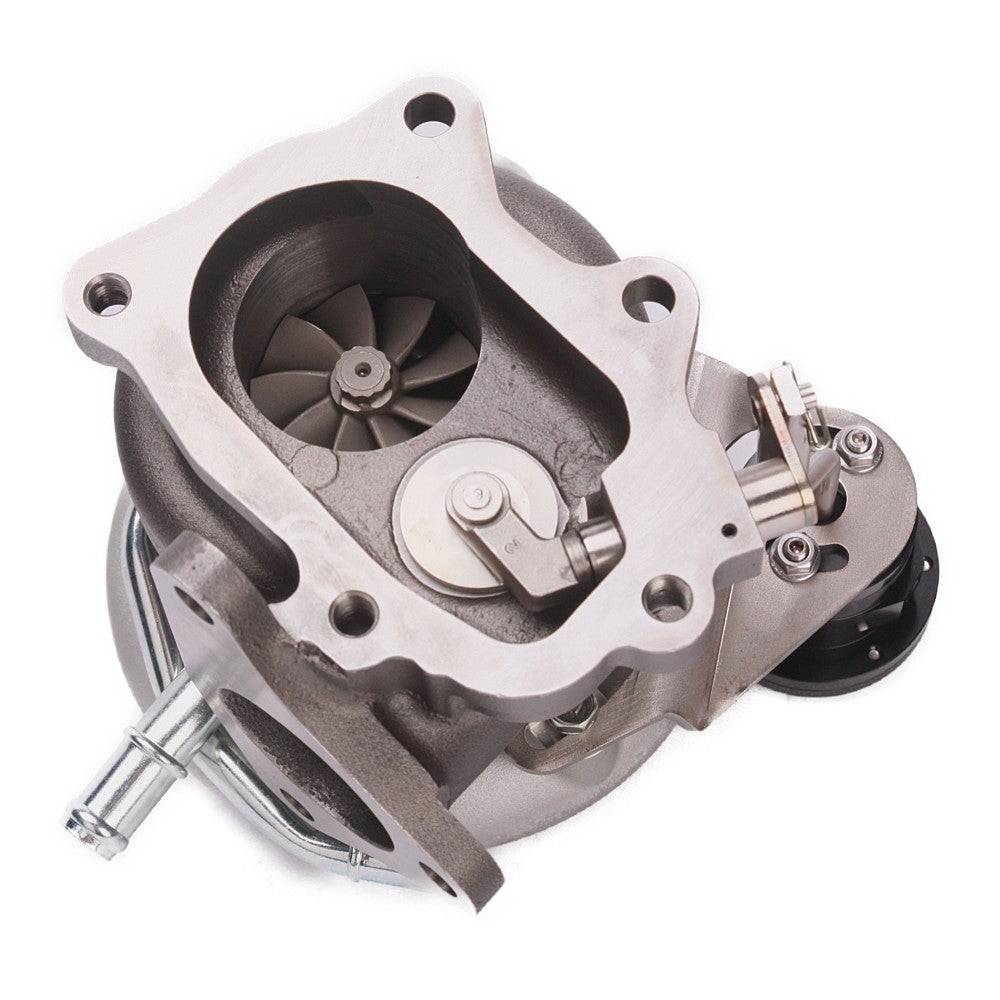

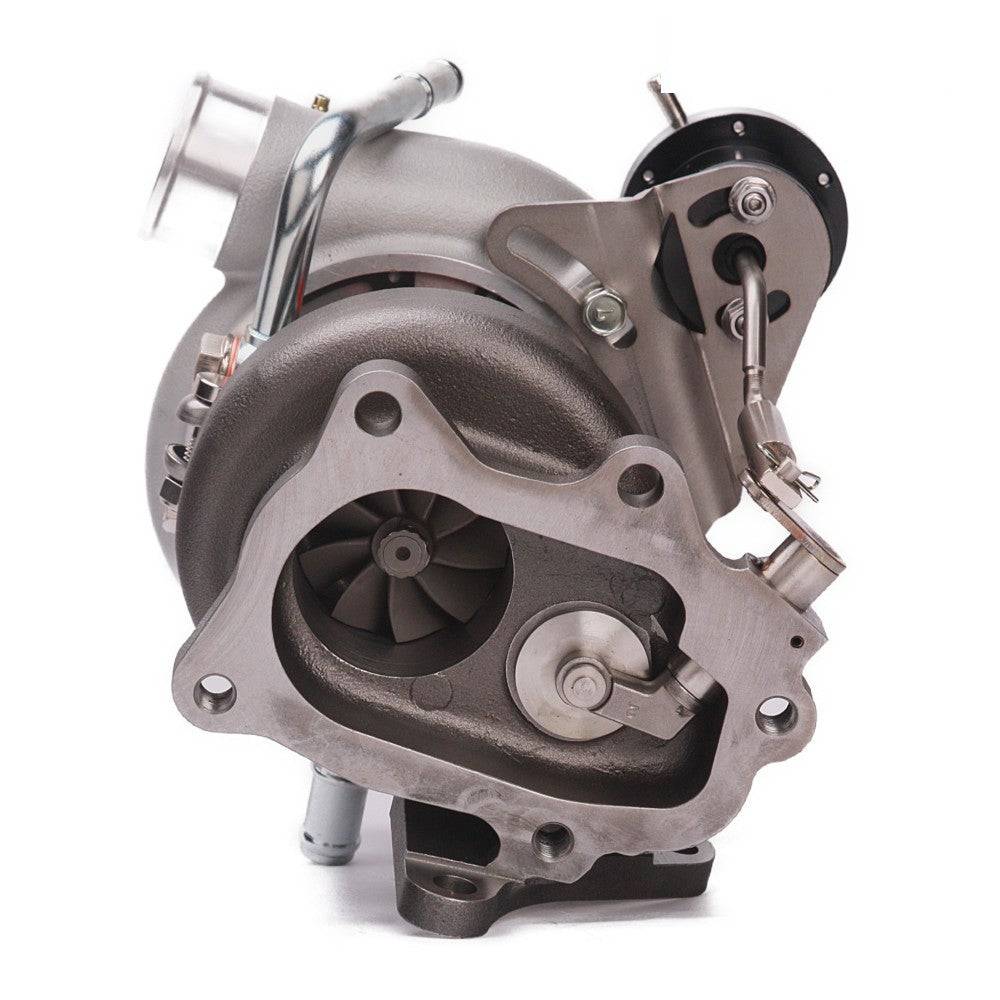

Turbine Housing
- Nozzle area: 7cm / AR.49; 8cm / AR.57
- Inlet: Subaru single scroll
- Outlet: Subaru single scroll
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
- Inlet: Subaru single scroll
- Outlet: Subaru single scroll
- Wastegate: internal gated
- High-Ni alloy for thermal resistant
Bearing Type
- Journal Bearing with 360-degree thrust bearing kit
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

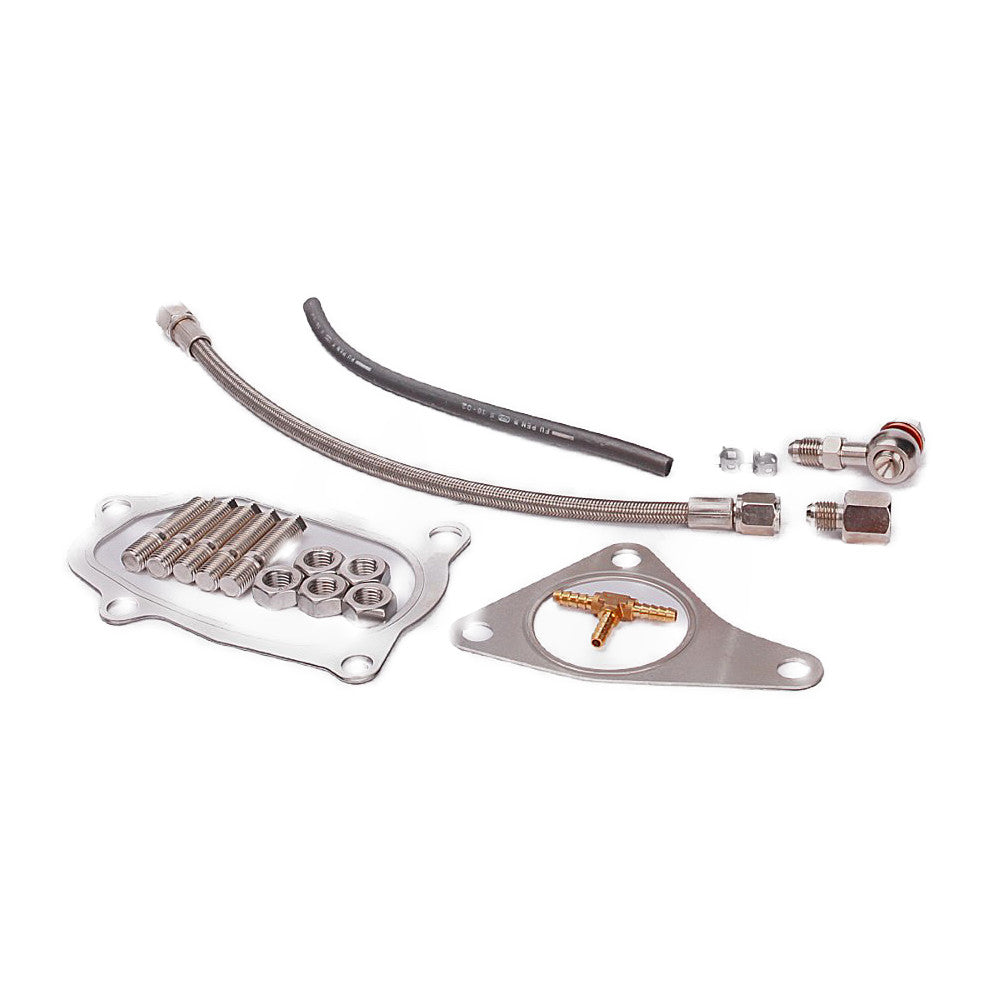

The Set Includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 5 x Stud And Nut Set
- 1 x Turbocharger
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA will cover you no matter the issue.
