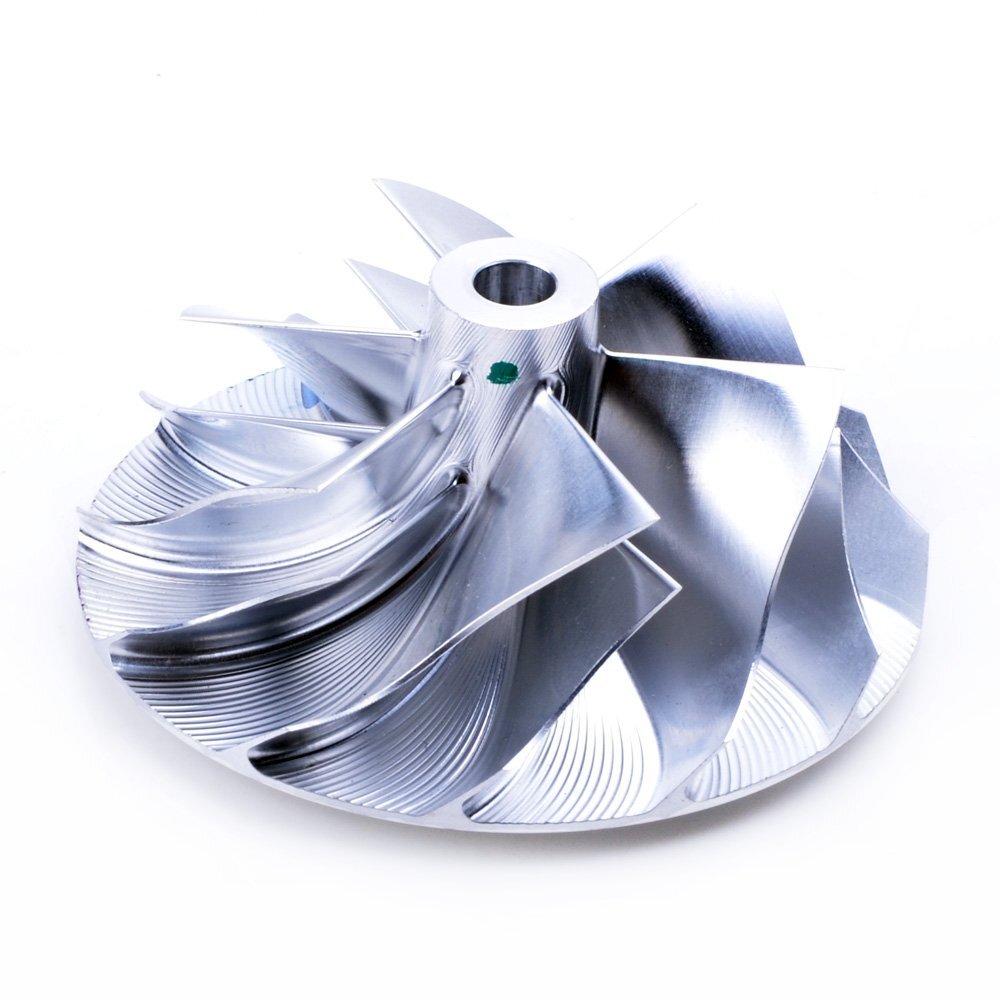

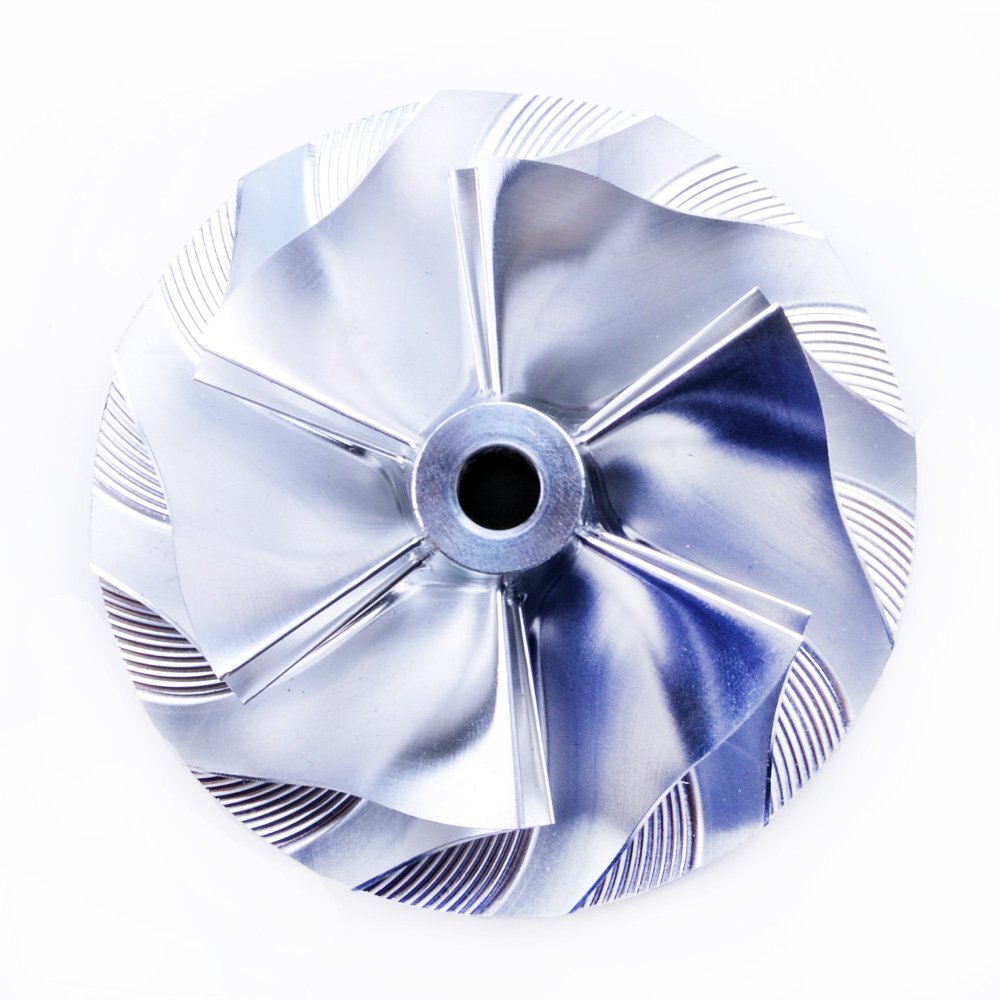

TRITDT Turbo Billet Compressor Wheel Reverse Raise Overall Height for Mitsubishi EVO 4~9 / Dodge SRT4 TD05HR TD06SL2R 20G

TRITDT Item No.
- 405-9901D-637

Item Name
- TRITDT for Mitsubishi EVO 4~9 / Dodge SRT4 everse TD05HR-20G / TD06SL2R-20G Turbo Billet Compressor Wheel 52.56/68.01 mm with Extend Tip / 6+6 Blade

Application
- Replace wheel Number:
- Fit Turbo #: Mitsubishi EVO 4~9 TD05HR-20G / TD06SL2R-20G

Product Situation
- Brand New
- Maximum boost 5 bar / 70 Psi

Balance
- Balanced By SCHENCK Germany
- Ready to competition

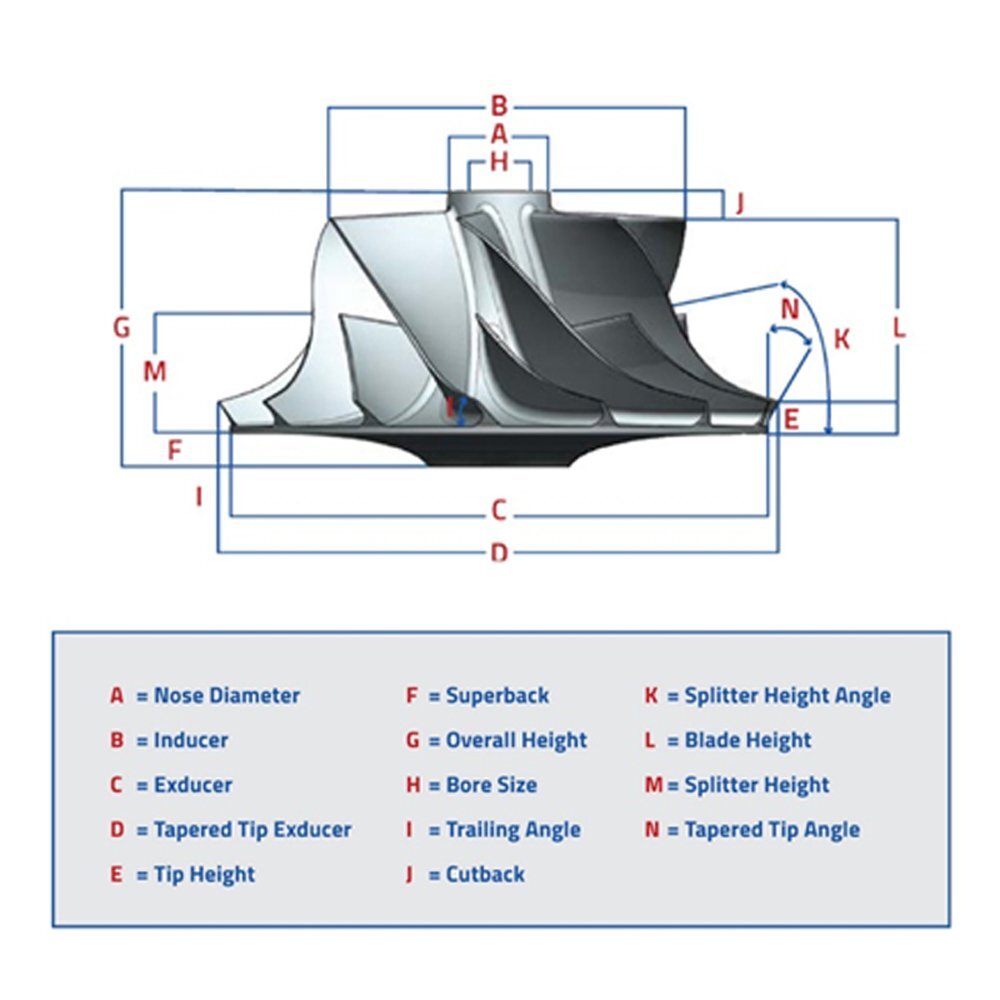

Wheel Size
- Nose : 13.50mm
- Inducer Dia.: 52.56 mm
- Exducer Dia. : 68.01 mm
- Extend Tappered Tip Exducer dia : 71.01 mm
- Tip Height: 5.37 mm
- Super Back Height: 2.90 mm
- Bore: 6.50 mm
- Blade : 6+6
- Rotation : Reverse

Material
- Forged Aluminum

Supplier
- TRITDT Turbo
