By KINUGAWA

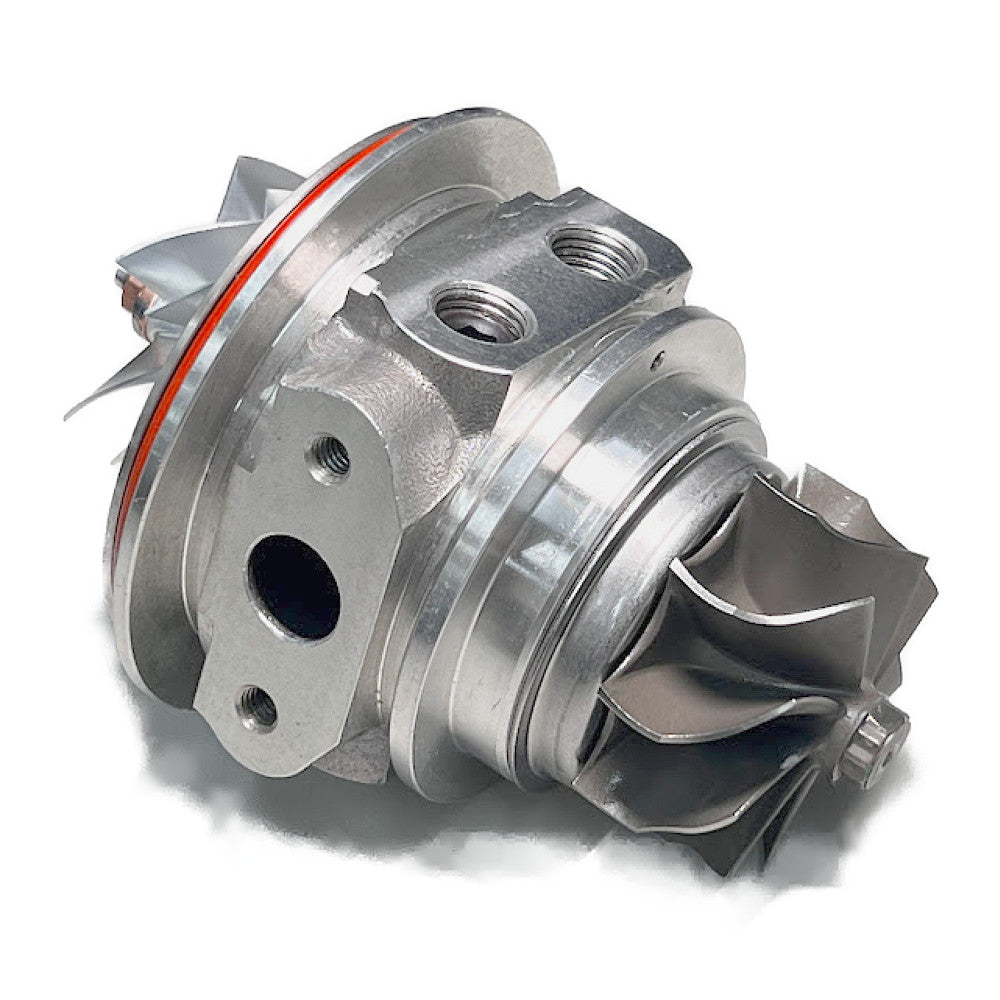

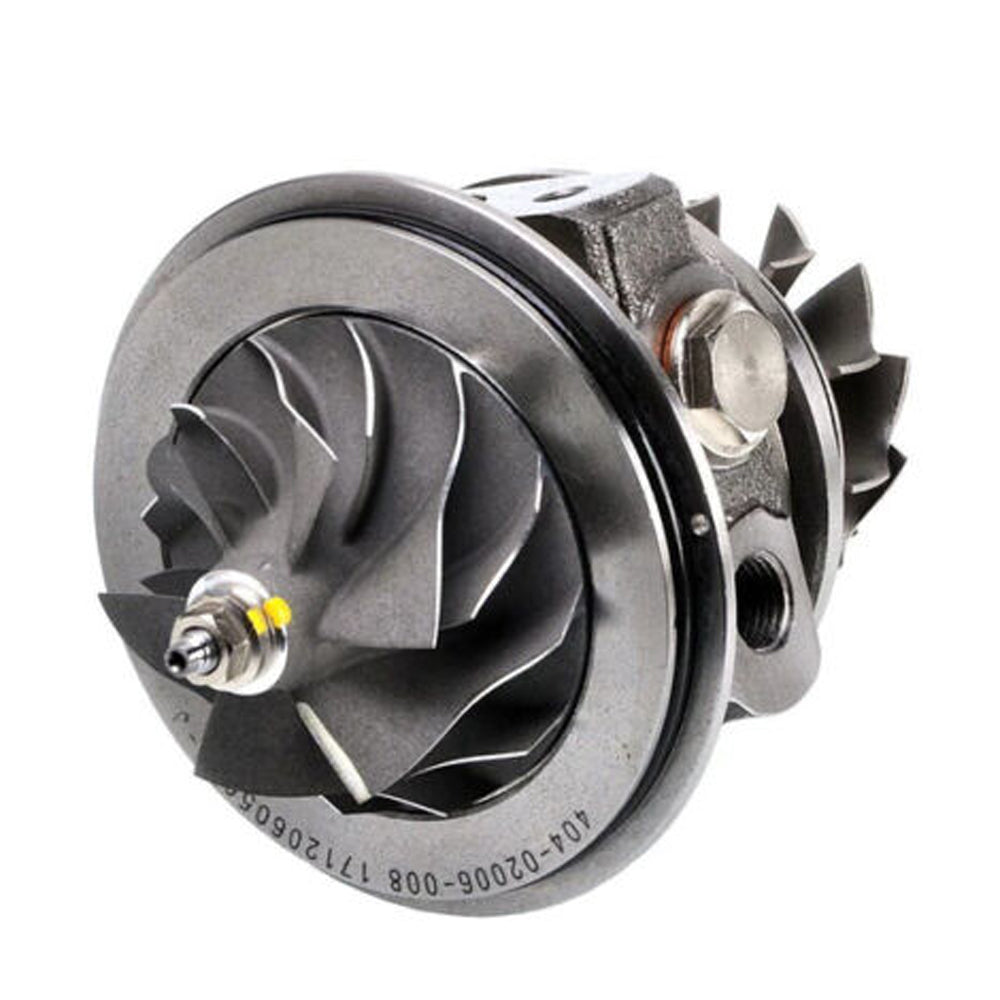

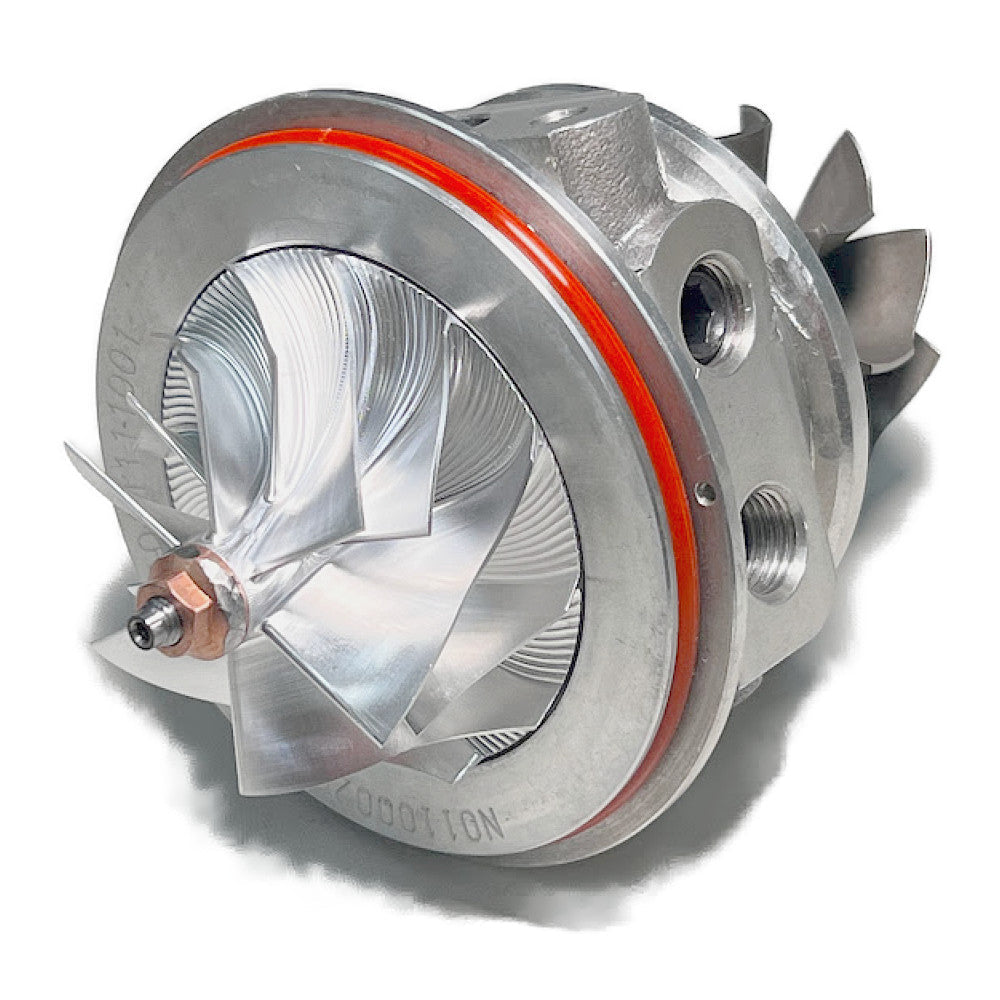

Kinugawa Turbo CHRA Cartridge TD04HL-20T for Mitsubishi 6G72T 3000GT Dodge Stealth Upgrade
$439.00 - $549.00
Shipping calculated at checkout.
Regular price
$439.00
Regular price
Sale price
$439.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 3 left
SKU:
333-02102-240
Tags:
Collections:
Regular price
$439.00
Regular price
Sale price
$439.00
APPLICATION
- 6G72T Twin Turbo on Mitsubishi 3000GT or Dodge Stealth.
- Direct bolt-on stock exhaust manifold and dump pipe.
- Universal type compressor housing, but the inlet and outlet hose must be modified.
HORSEPOWER
- Range: 450~600WHP
- The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration.
CASE STUDY
494HP @5971 RPM and 517 lf-lb @5971 @14.7 PSI ( more like 15.5 PSI) @19 degree timing @5200 and 20 degree @6000 RPM
CHRA SIZE
- TD04HL-20T
- Fit 8mm deep heat shield
WHEEL SPEC
- Compressor wheel: 47.0 / 56.0 mm (The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Turbine Wheel: 52.0 / 45.6 mm
(3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)
BEARING TYPE
- Journal bearing system
COOLING TYPE
- Oil and water cooling system
KIT INCLUDES
- 1 x CHRA
- 1 x Balance report with anti-counterfeit tag↗
PRODUCT SITUATION
- Brand New
- Complete CHRA balanced by SCHENCK MBRS 110 Germany
PROVIDER
- Kinugawa Turbo Systems
WARRANTY
- No
