Kinugawa Turbo Adjustable Internal Wastegate Actuator for Mitsubishi EVO 1-3 DSM 4G63

Application
- Kinugawa Turbo for Mitsubishi 4G63T Lancer EVO1~3, Galant VR-4 DSM 1G, 2G


Kit includes

- 1 x actuator with bracket and rod

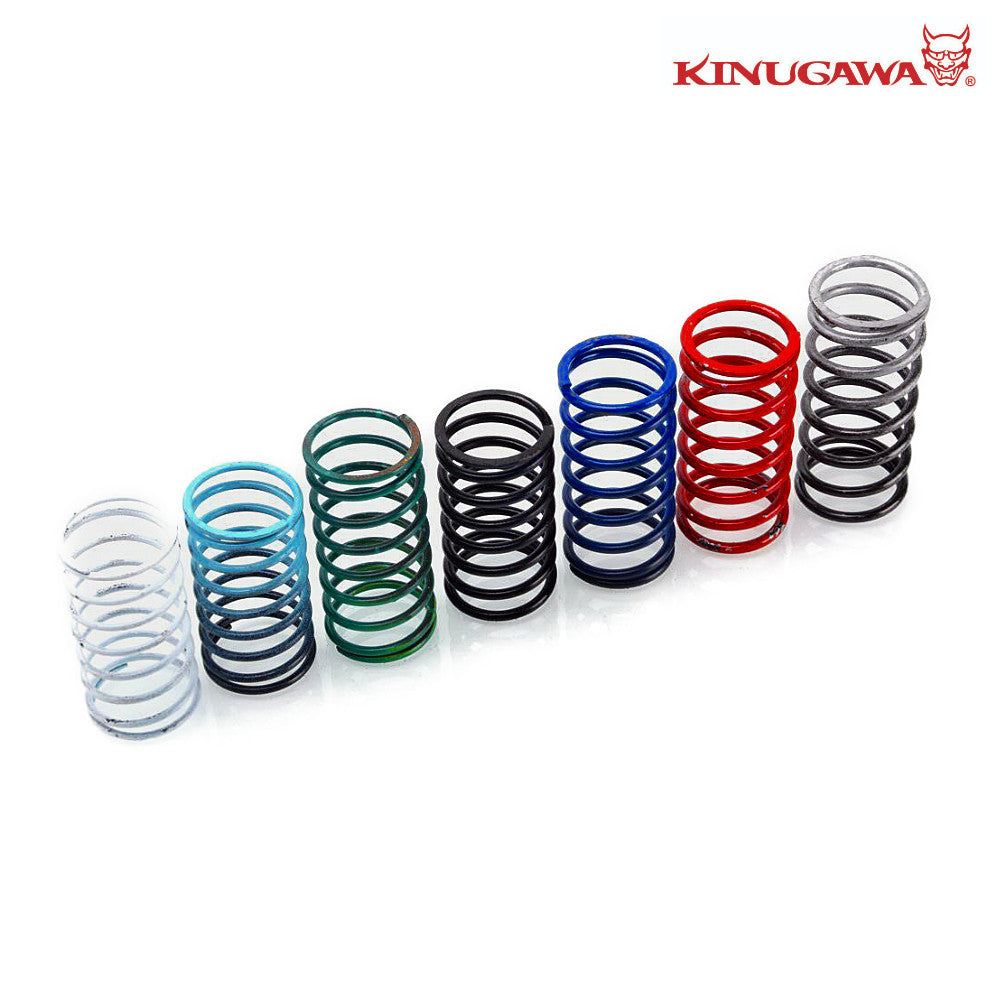

- 1 x spring or set (8 springs) will go with this actuator.

Situation

- Brand New

Provider
- Kinugawa Turbo Systems

Note
- Please have a reference of our actuator spring pressure table. Our spring full-stroke displacement is 14.5 mm, the default preload will be setup to 2 nut turns (1.5 mm stroke displacement). You can adjust the preload stroke as the following table and the video.

Please check the following video to learn how to replace the spring of the adjustable actuator.

Now you could adjust it more tightly with preload the rod end as following steps.

Step 1.: Preload

You can preload the actuator rod to get a higher boost pressure. please check the following 2 videos
