By KINUGAWA

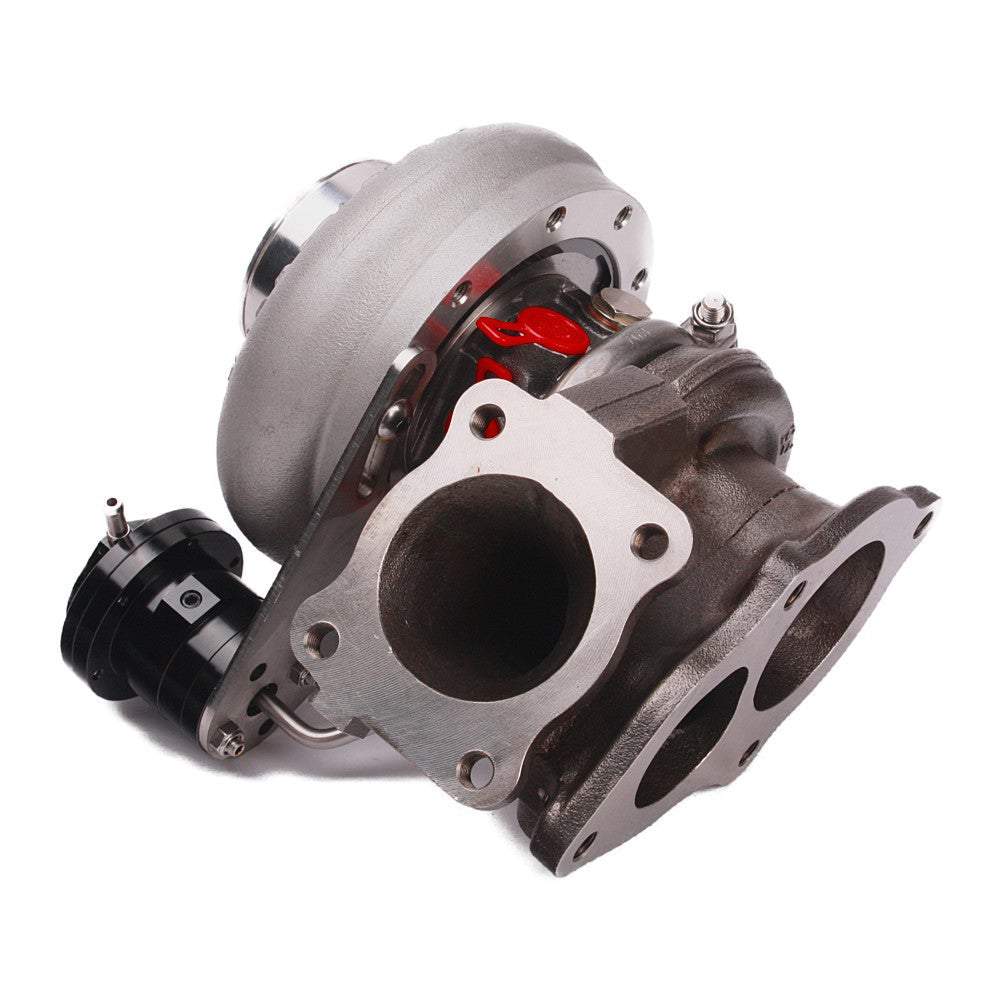

Kinugawa Turbo 3" TD05H-18G 7cm for Mitsubishi 4G63T Lancer EVO 1~3 DSM 1G 2G Eclipse GST GSX
$989.00 - $1,189.00
Shipping calculated at checkout.
Regular price
$989.00
Regular price
Sale price
$989.00
Unit price
per
Couldn't load pickup availability
Regular price
$989.00
Regular price
Sale price
$989.00
Application
- For Mitsubishi 4G63T Lancer Evo 1-3, Galant, DSM, Eagle Talon, Plymouth Laser
- 1G/2G DSM
- 1990-1999 Eclipse GST/GSX
- 1990-1998 Talon TSi
- 1990-1994 Laser RS
- 1990-1999 Eclipse GST/GSX
- 1990-1998 Talon TSi
- 1990-1994 Laser RS
Attention: It is imperative that you make modifications to either your intake system or coolant tubes in order to fit the 3" compressor housing.
The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's Performance results depend highly on your vehicle’s modifications and tuning/calibration.
CHRA Size
- TD05H-18G
Wheels Spec
- Compressor wheel: 50.3 / 68 mm (The 6+6 blades for low-end torque and the 11+0 blades for top-end speed)
- Turbine wheel: 49 / 56 mm
(3 types offered: STD, STS, STS55. Click here to learn more about STS technology.)

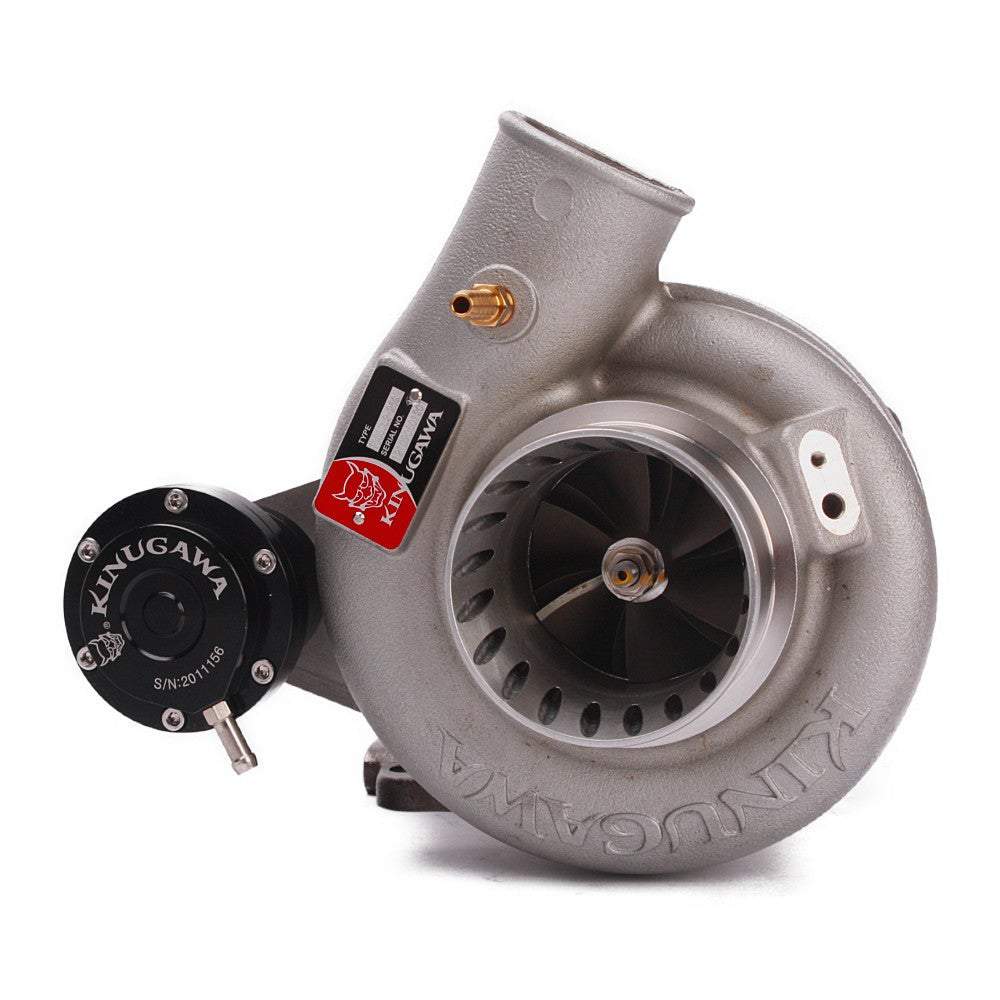

Compressor Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"
Turbines Housing
- Nozzle area: AR.60
- Inlet: 3"
- Outlet: 2"
Turbines Housing
- Nozzle area: 7cm / AR.49
- Inlet: Mitsubishi single scroll
- Outlet: Mitsubishi 4-bolt
- Wastegate: internal gated with 34mm wastegate flapper
- Inlet: Mitsubishi single scroll
- Outlet: Mitsubishi 4-bolt
- Wastegate: internal gated with 34mm wastegate flapper
Bearing Type
- Journal Bearing
- 360 Performance Thrust Bearing Kits with large thrust rings and Flingers
Cooling Type
- Oil and water cooling
Actuator Pressure
- 1.0 bar / 14.7 psi is the Default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Situation
- Brand New

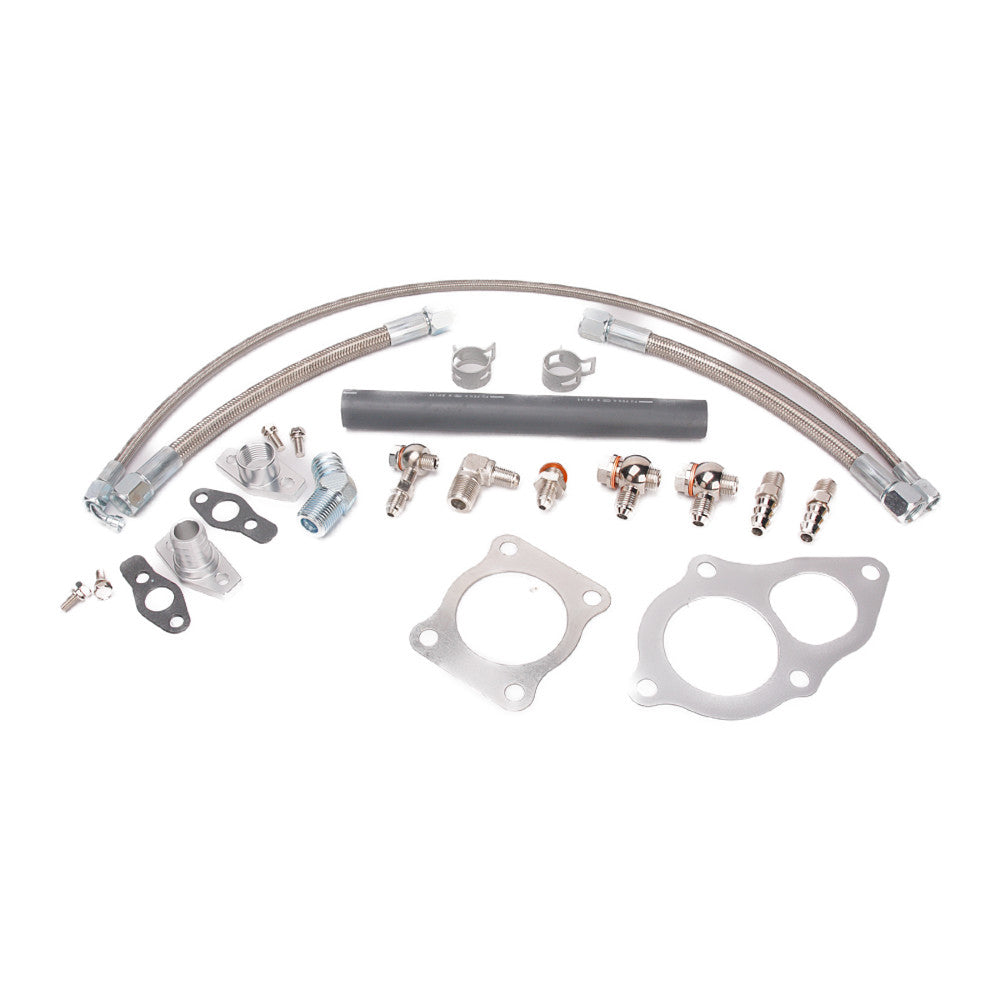

The set includes
- 1 x Turbocharger
- 1 x Oil set for oil supply (from the oil filter to turbo)
- 1 x Oil set for oil supply (from the oil filter to turbo)
- 1 x Return Oil Pipeline
- 1 x water coolant and return kit (6an / large hose)
- 1 x Turbine gasket kit
Install Kit Instruction
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
