  5. Kinugawa Turbo Adjustable Internal Wastegate Actuator for VOLVO 850 T5 S80 S70 V70
By KINUGAWA

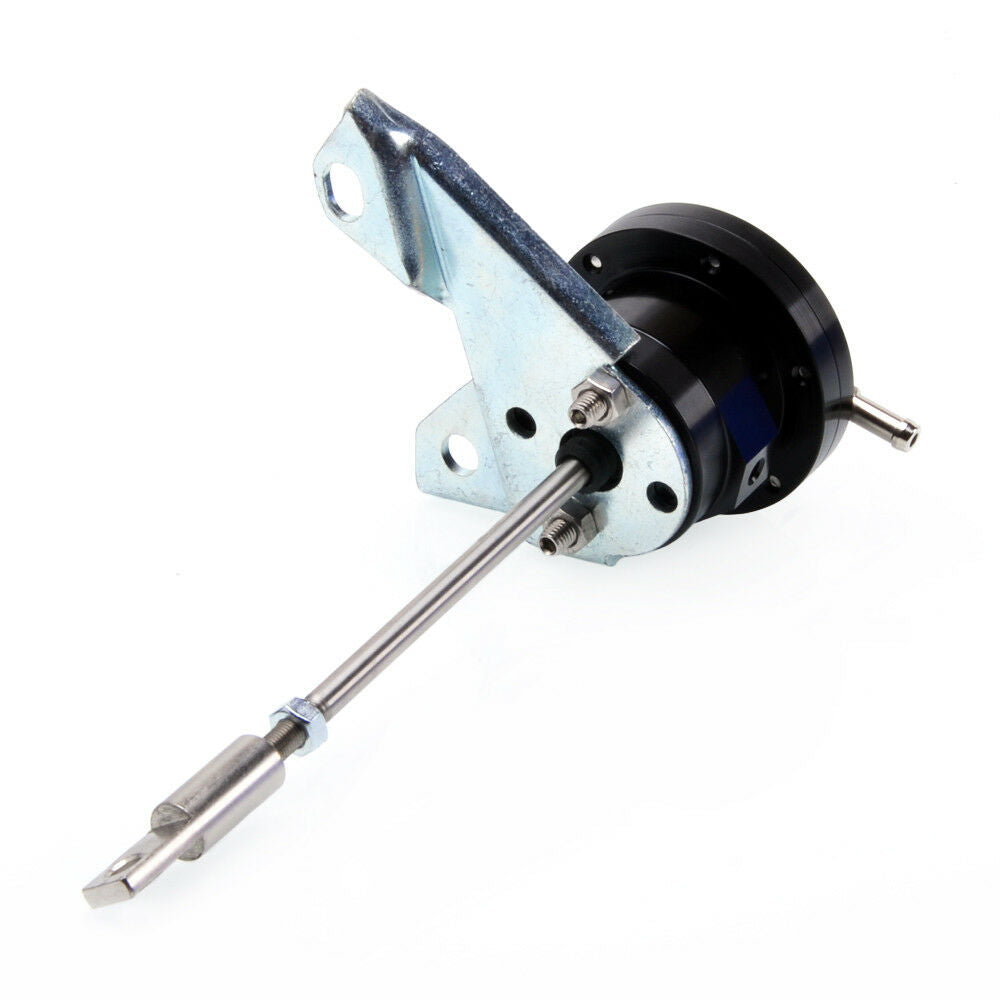

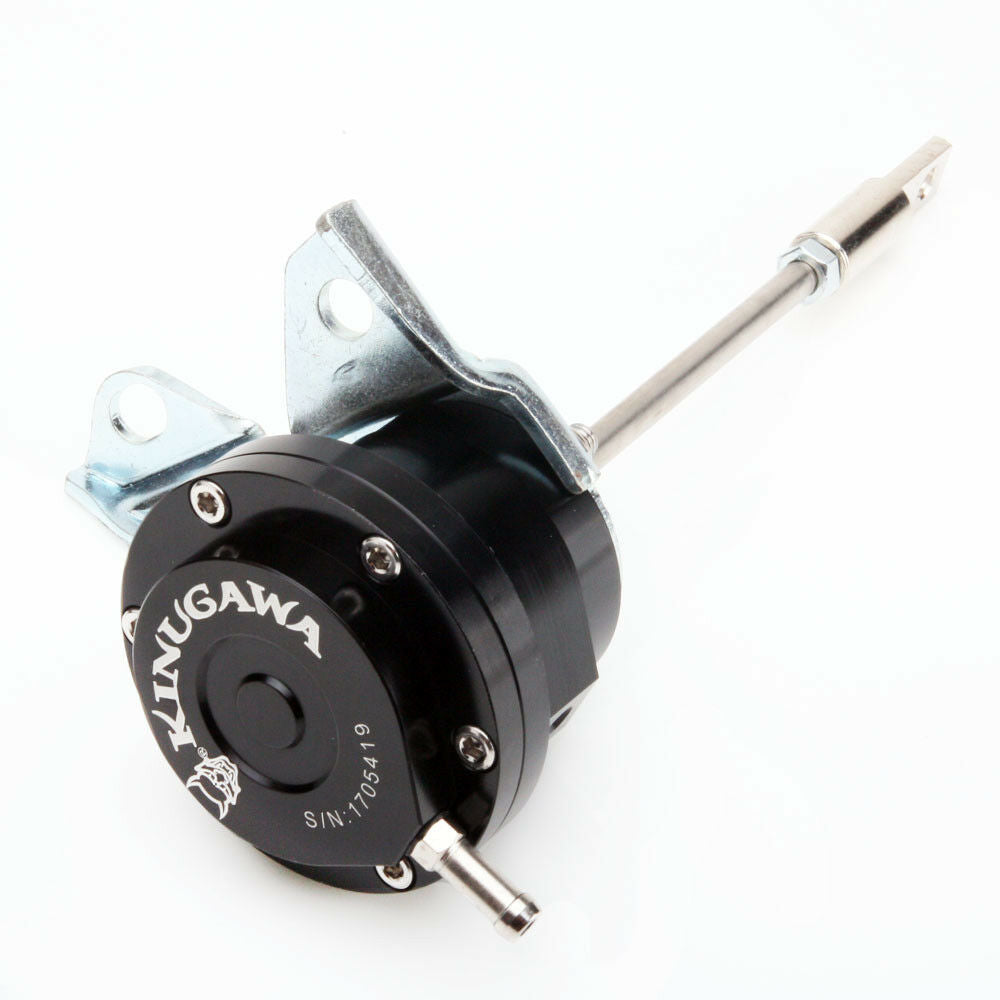

Kinugawa Turbo Adjustable Internal Wastegate Actuator for VOLVO 850 T5 S80 S70 V70

$129.00 - $159.00
Shipping calculated at checkout.
Pressure: 0.3 bar / 4.41 psi
$129.00
$129.00 $129.00
Availability: Low stock: 4 left
SKU: 309-02048-001
Tags:
Collections:
KINUGAWAKinugawa Turbo Recirculation Bypass Compressor Valve BCV Honda Civic 2.0T Type R FK8 FL5
Kinugawa Turbo Recirculation Bypass Compressor Valve BCV Honda Civic 1.5T Type R

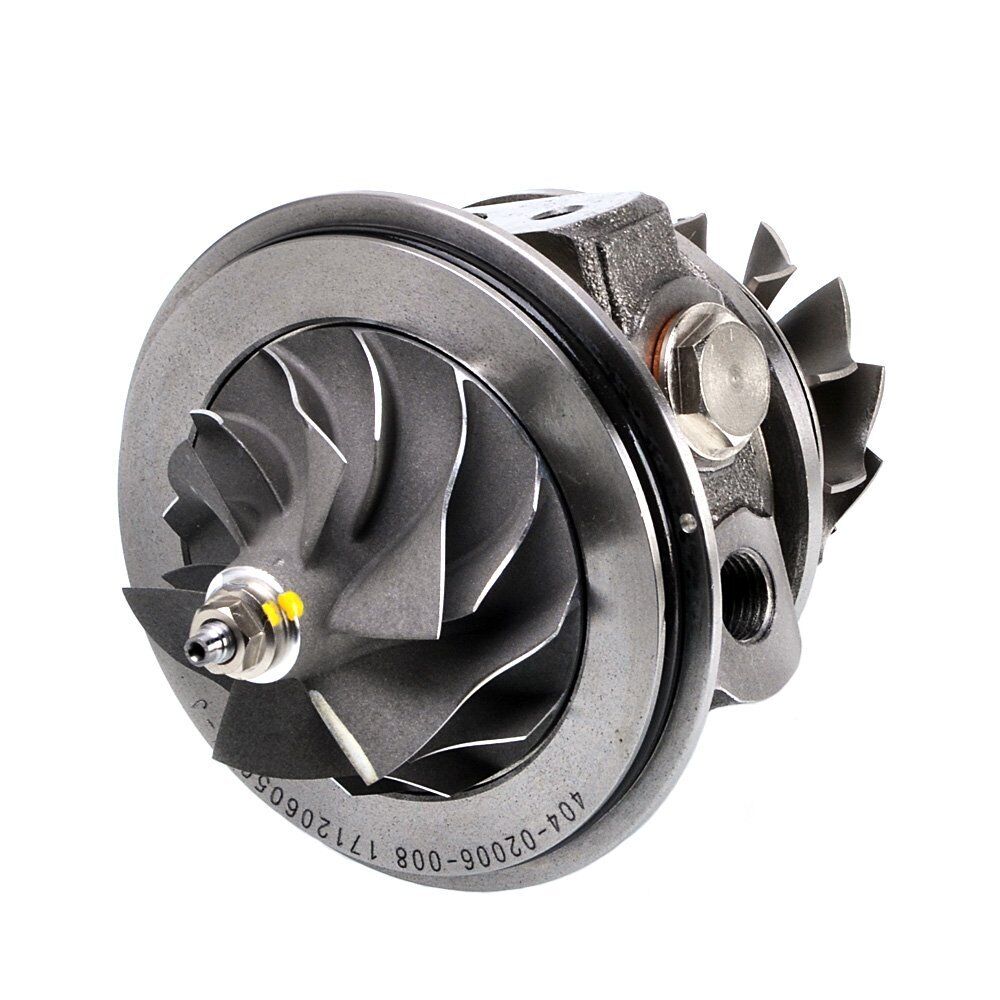

Kinugawa Turbo CHRA Cartridge TD04HL-19T for VOLVO 740 940 S60 S70 V70 C70 XC70
KINUGAWAKinugawa Turbo CHRA Cartridge TD04HL-19T for VOLVO 740 940 S60 S70 V70 C70 XC70
Kinugawa Turbo Adjustable Internal Wastegate Actuator for VOLVO 850 T5 S80 S70 V70
$129.00
$129.00 $129.00

Application

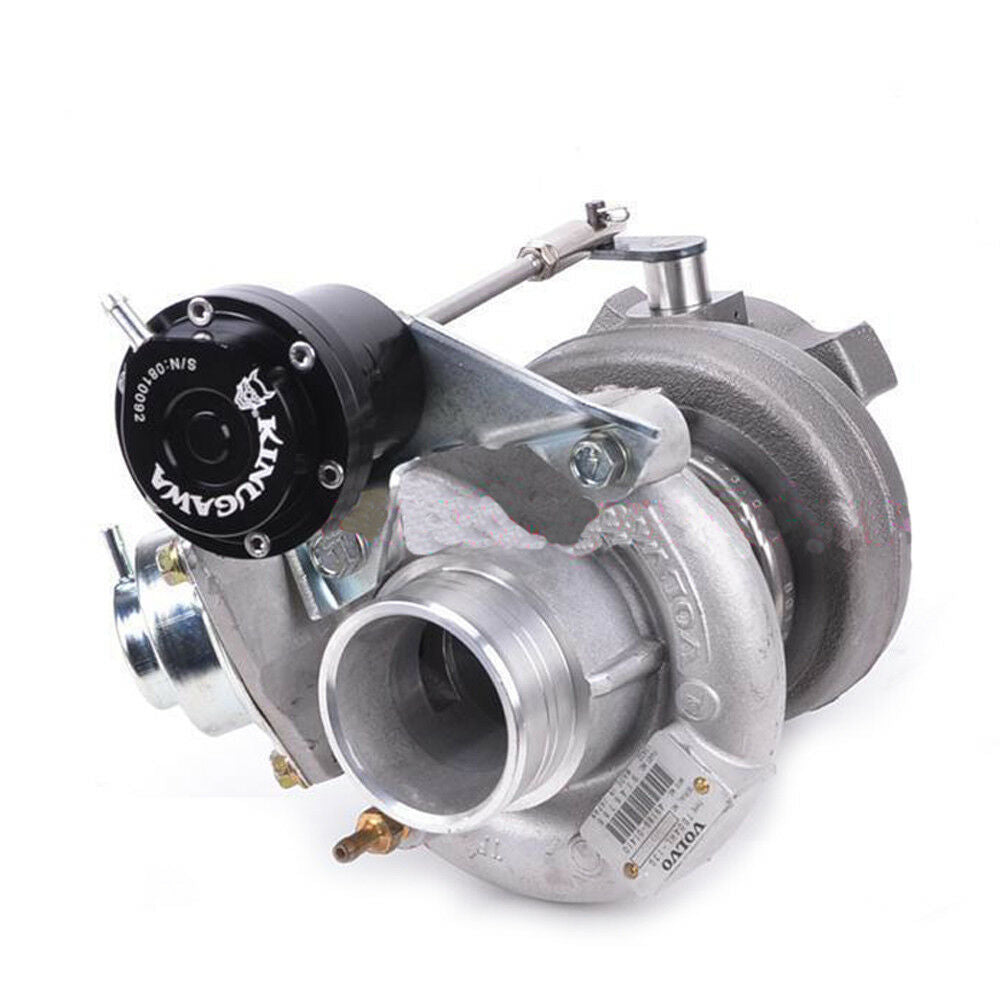

- VOLVO 850 / S70 TD04HL-13G, TD04HL-15G, TD04HL-16T, TD04HL-18T and TD04HL-19T turbochargers that made by Mitsubishi.
- VOLVO S80 2.4T TD04HL-13T turbocharger.
- This actuator can fit 6cm / 7cm straight flange and angle flange turbine housing.

Kit includes
- 1 x actuator with bracket and rod
- 1 x spring or set (8 springs) will go with this actuator.

Situation
- Brand New

Provider
- Kinugawa Turbo Systems

Note
- Please have a reference of our actuator spring pressure table. Our spring full-stroke displacement is 14.5 mm, the default preload will be setup to 2 nut turns (1.5 mm stroke displacement). You can adjust the preload stroke as the following table and the video.



kinugawa turbo adjustable actuator spring setup 01 kinugawa turbo adjustable actuator spring setup 02
Please check the following video to learn how to replace the spring of the adjustable actuator.



Now you could adjust it more tightly with preload the rod end as following steps. Step 1.: Preload  You can preload the actuator rod to get a higher boost pressure. please check the following 2 videos
