By KINUGAWA
Kinugawa Turbo TD04-13T for Mitsubishi 4M40T Pajero Triton Shogun Challenger Oil-Cooled 94-97
$829.00 - $1,009.00
Shipping calculated at checkout.
Regular price
$829.00
Regular price
Sale price
$829.00
Unit price
per
Couldn't load pickup availability
Availability:
Low stock: 5 left
SKU:
301-02034-227
Tags:
Collections:
Regular price
$829.00
Regular price
Sale price
$829.00
Description
- A Brand new bolt-on turbocharger. Increase 30% torque and 20% horsepower than stock td04-12t
- A Brand new bolt-on turbocharger. Increase 30% torque and 20% horsepower than stock td04-12t
Application
- For Mitsubishi 94 ~ 97 4m40t / 2.8l Pajero, Delica, Shogun.
- Replace and upgrade 49377-03031, 49377-03033, 49377-03040, 49377-03041, 49377-03043, 49377-03053 turbo
CHRA Size
- TD04-13T
- For Mitsubishi 94 ~ 97 4m40t / 2.8l Pajero, Delica, Shogun.
- Replace and upgrade 49377-03031, 49377-03033, 49377-03040, 49377-03041, 49377-03043, 49377-03053 turbo
CHRA Size
- TD04-13T
Wheels Spec
- Compressor wheel: 40.3 / 56 mm (The 6+6 blades are better for low-end torque, and the 11+0 type is for top-end speed)
- Turbine wheel: 47.1 / 40 mm (2 types offered: STD, STS. Click here to learn more about STS technology.)
Compressor Housing
- Stock type
Turbine Housing
- Nozzle area: 4cm or 5cm
- Inlet: 3 bolt
- Outlet: 4 bolt
- Wastegate: internal gated
- Stock type
Turbine Housing
- Nozzle area: 4cm or 5cm
- Inlet: 3 bolt
- Outlet: 4 bolt
- Wastegate: internal gated
Bearing Type
- Journal Bearing
Cooling systems
- Oil Cooling
Actuator Pressure
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.
Situation
- Brand New

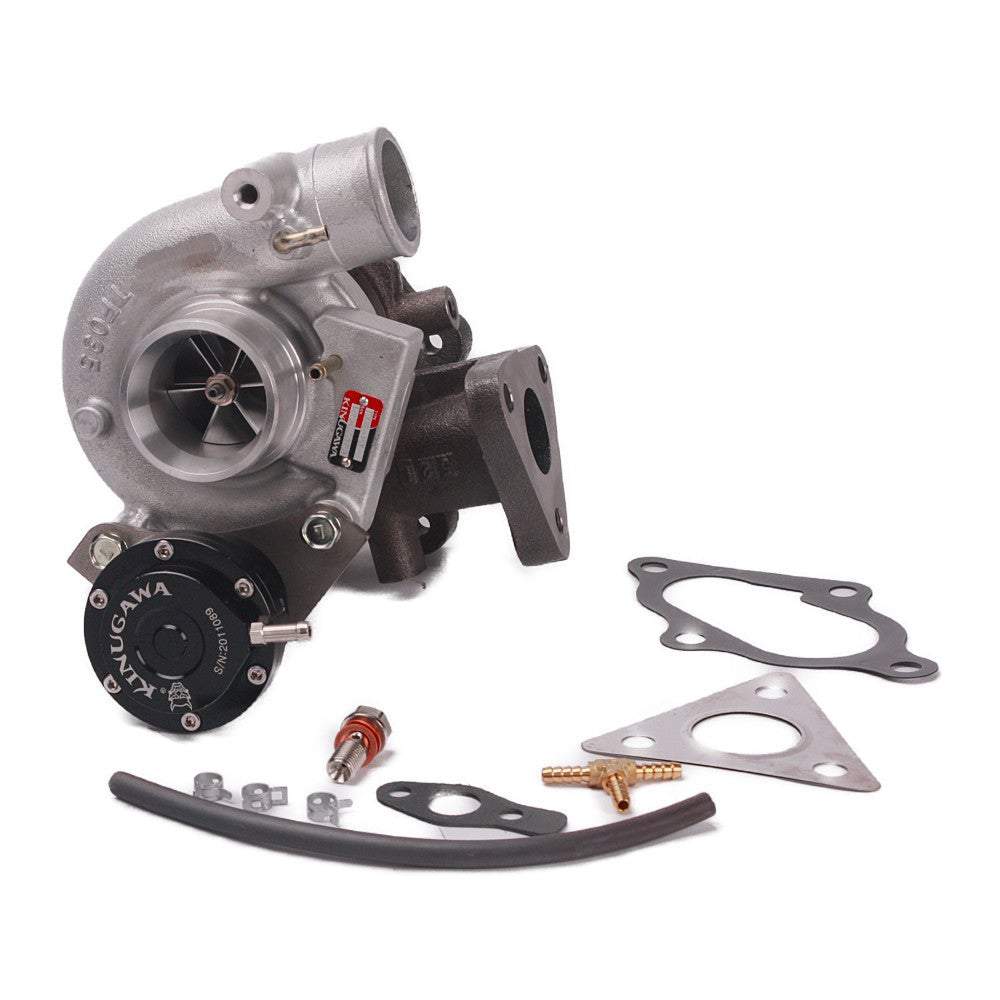

The Set Includes
- 1 x turbocharger
- 1 x turbine inlet/outlet gasket set
- 1 x oil return gasket
- 1 x oil supply bolt for turbo side
- 3 x vacuum clamps
- 1 x 30 cm vacuum
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
