The usage of a ported flapper within a turbine housing, specifically related to the wastegate, is primarily to improve boost control and prevent issues like "boost creep" in turbocharged engines.
The Problem: Understanding Boost Creep
First, let's define the enemy: boost creep.
Boost creep is a condition where your boost pressure continues to rise unintentionally, climbing past the target level set by your wastegate spring or boost controller. You might command 18 PSI, but as you climb through the RPM range under full load, you see the gauge creeping up to 20, 21, or even 22 PSI.
This happens when the internal wastegate, even when fully open, cannot bypass enough exhaust gas around the turbine wheel. Think of it like a dam with a spillway that's too small. When there's a flood of exhaust gas at high RPM, the small spillway can't keep up, and pressure "creeps" up behind the dam. This unwanted pressure can lead to dangerous engine conditions, like leaning out or detonation.
The Solution: Porting the Wastegate Flapper Area

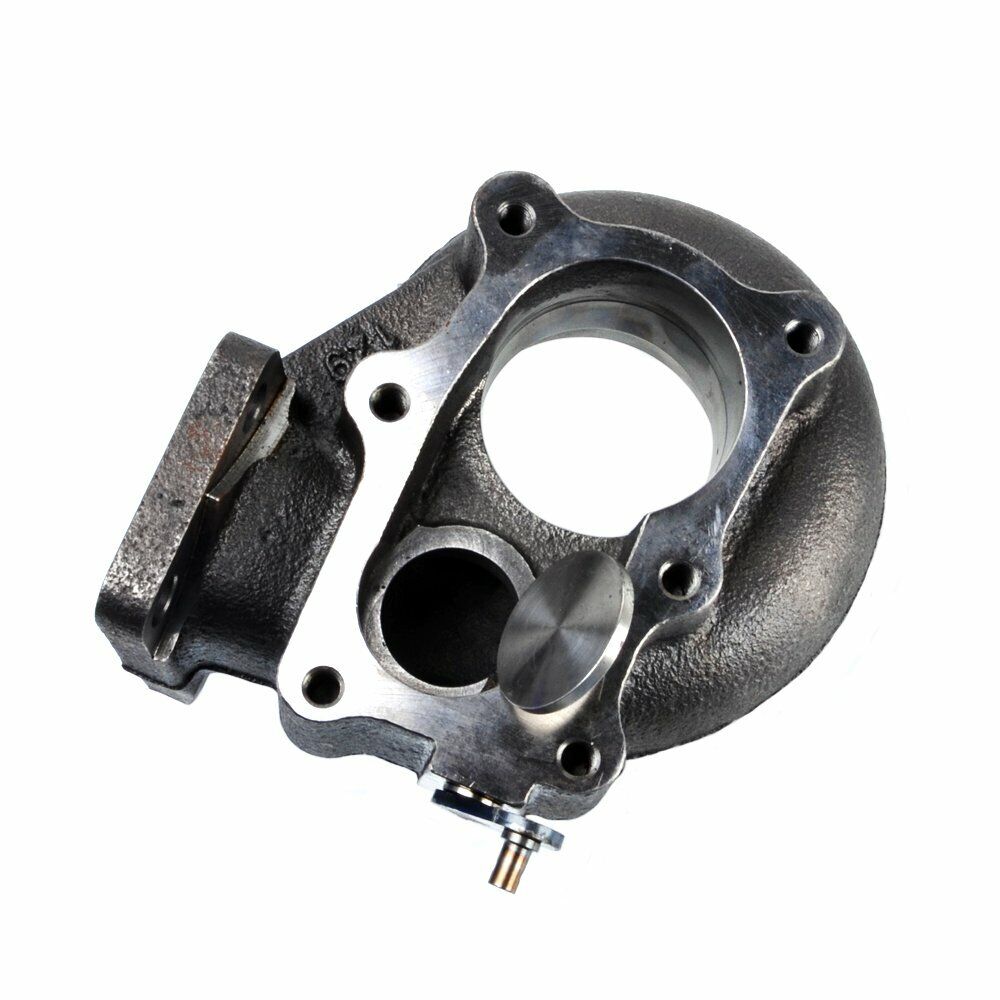

So, what is a "ported flapper"?
Porting simply refers to removing material and smoothing out the area around the wastegate flapper valve and the hole (port) it covers. This isn't about making the hole itself bigger, but rather improving the efficiency of the flow as exhaust gas rushes to escape through it.
When a turbine housing is cast, the area around the wastegate port is often left with sharp edges, rough surfaces, and an abrupt entry angle. These imperfections create turbulence and restrict the flow of exhaust gas trying to bypass the turbine.
By porting this area, a skilled technician:
-
Creates a "beveled" or "funnel-like" entry to the wastegate port.
-
Smooths out the sharp edges and casting marks.
-
Reshapes the path to create a fluid, aerodynamic exit for the exhaust gas.
The Result: How Porting Restores Boost Control
By making the path to and through the wastegate port more efficient, a much greater volume of exhaust gas can escape when the flapper door opens.
Let's go back to our dam analogy. Porting is like reshaping the entry to the spillway from a sharp, square-edged hole into a smooth, funnel-shaped one. The hole size hasn't changed, but the water can now flow into it much more easily and quickly.
This has several direct benefits for your vehicle:
-
Eliminates Boost Creep: The primary goal and result. The wastegate can now properly bypass the necessary volume of exhaust, allowing it to hold your target boost level steady all the way to redline.
-
Improved Boost Stability: Your boost control becomes more precise and predictable, which is critical for consistent performance and engine tuning.
-
Enhanced Engine Safety: By preventing uncontrolled boost spikes, you protect your engine from dangerous overboost conditions, ensuring the air/fuel mixture remains safe.
Is a Ported Flapper Right for You?
This modification is most beneficial in setups that move a high volume of air through a relatively small internal wastegate, a common scenario in upgraded factory-style turbos. If you are experiencing boost creep and have already confirmed your boost controller and actuator are working correctly, an inefficient wastegate port is the most likely culprit.
At the end of the day, stable boost is the foundation of reliable power. Porting the turbine flapper is a nuanced but highly effective solution that ensures your wastegate can do its job properly, giving you the control you need to push the limits with confidence.
