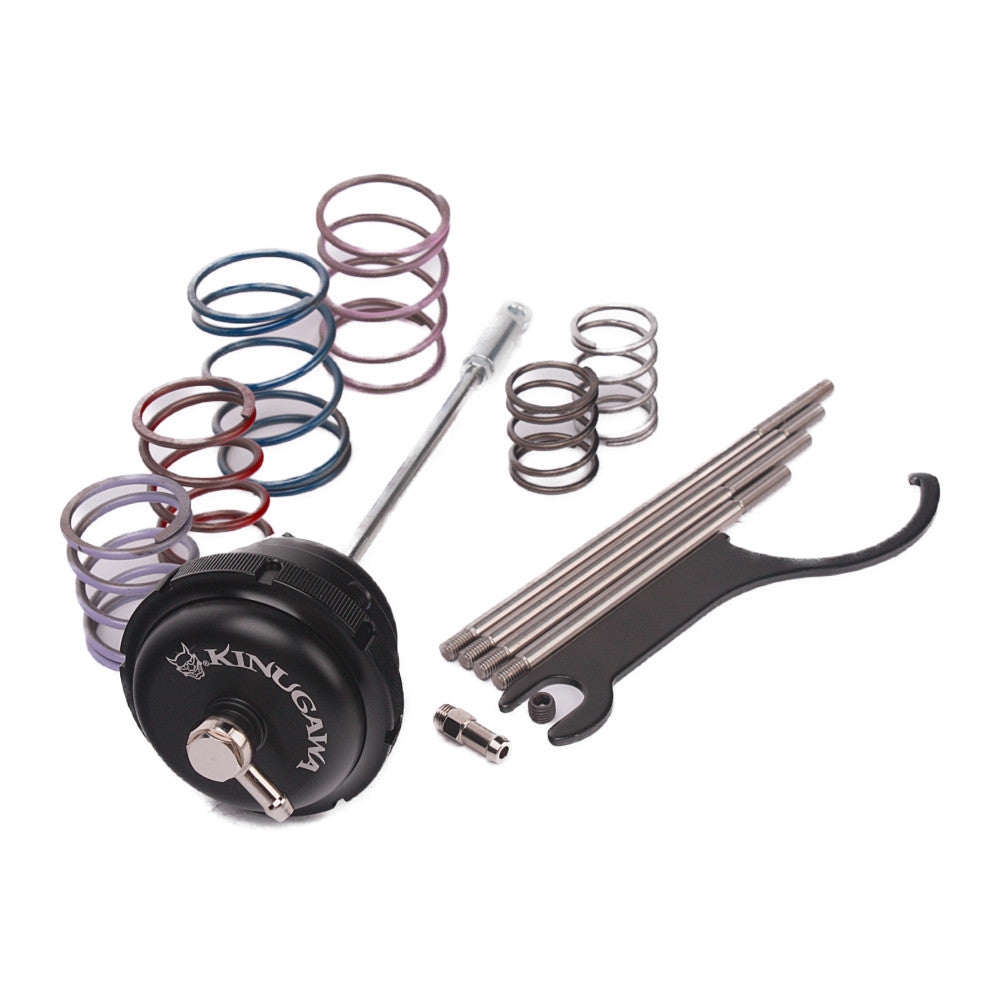

The Kinugawa billet adjustable actuator is designed and built to increase the boost output of a turbocharged system. We cannot guarantee compatibility with all applications, nor the ability to increase the boost output beyond a level that is within the parameters set by the engine management system of the given vehicle at the time of installation, whether that system is factory or aftermarket. Before installation and operation, please read our user’s manual carefully. Download>>Universal Manual Adjustable Forged Wastegate Actuator and Spring v1.0.0.pdf
How to replace the actuator spring and hold the boost pressure as the table?
Firstly, please check the following 4 points before inspection of the turbocharger.
1. Compressor housing outlet, intercooler circuit, and connections.
2. Turbine Housing inlet, manifold circuit, gasket, and connections.
3. Turbine Housing outlet, dump pipe circuit, gaskets and connections.
4. Compressor housing inlet, air filter clean situation and connections.
Waring: The troubleshooting guide may only be conducted with the vehicle in drivable condition. Please stop the trials at signs of engine malfunction such as black smoke, excessive oil consumption, or run-away engine.
Please have a reference of our actuator spring pressure table. Our spring full-stroke displacement is 14.5 mm, the default preload will be setup to 2 nut turns (1.5 mm stroke displacement). You can adjust the preload stroke as the following table and the video.
Please check the following video to learn how to replace with the spring of adjustable actuator.
Now you could adjust it more tightly with preload the rod end as following steps.
Suggestion 1.: Preload
You can preload the actuator rod to get a higher boost pressure. please check the following 2 videos
BTW, Please make sure the manifold and the inter-cooler pipe that connected with the turbocharger without leak.
